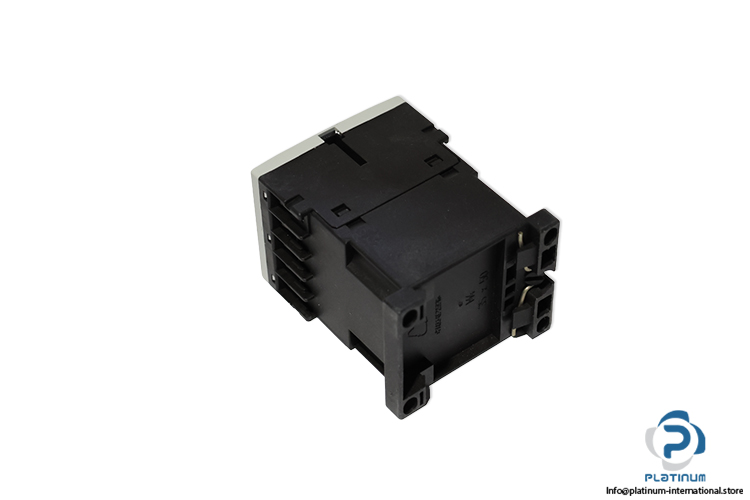

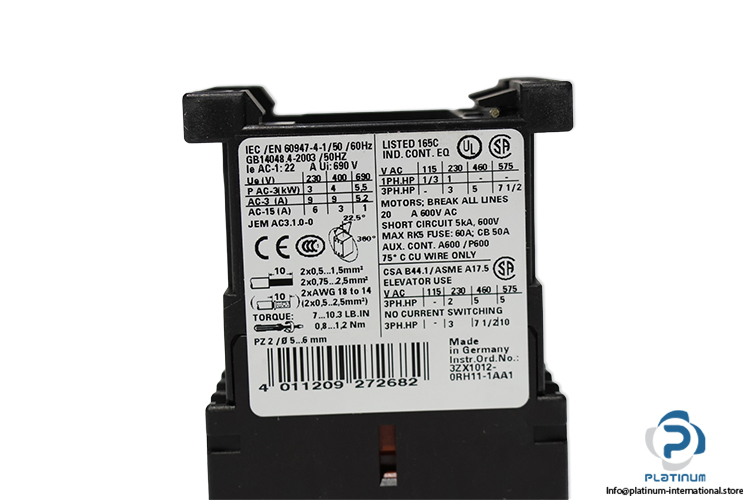

Siemens 3RT1015-1AP01 Contactor
Neu
Auf Lager2 EinheitenVersandbereit
Contactor The SIEMENS 3RT1015-1AP01 is a SIRIUS 3-pole contactor with a 230 V AC coil, 7 A AC-3 current and 3 kW switching power at 400 V AC.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Instr. Ord. No. | 3ZX1012-0RH11-1AA1 |
| Size | S00 |
| Range | SIRIUS |
| Series | 3RT10 |
| Coil Voltage | 230 V AC 50/60Hz |
| Rated Operational Voltage Max. | 690 V AC |
| Rated Operational Current AC-3 | 7 A |
| Frequency | 50 … 60 Hz |
| Power AC-3 | 400 V AC 3 kW |
| Number of Poles | 3-Pole |
| Main Contact | 3 Normally Open (NO) |
| Auxiliary Contact | 1 Normally Open (NO) |
| Protection Class | IP20 |
| Temperature | -25 … 60 °C |
| Dimensions | 57.5 x 45 x 72 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103758 |
| Weight | 0,26 |
