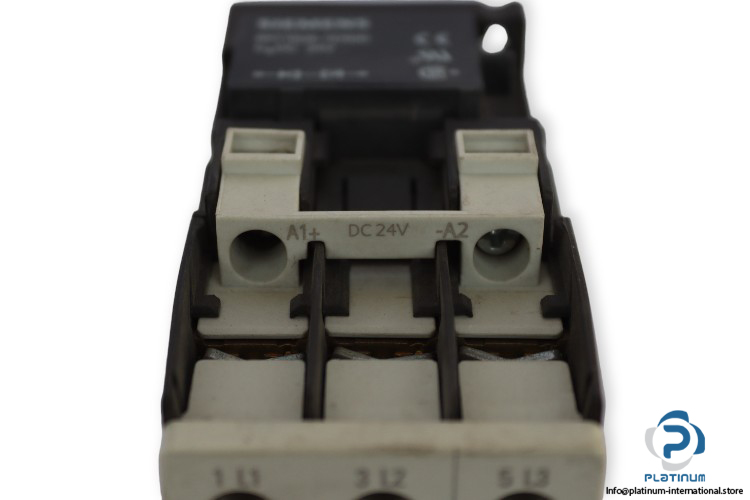

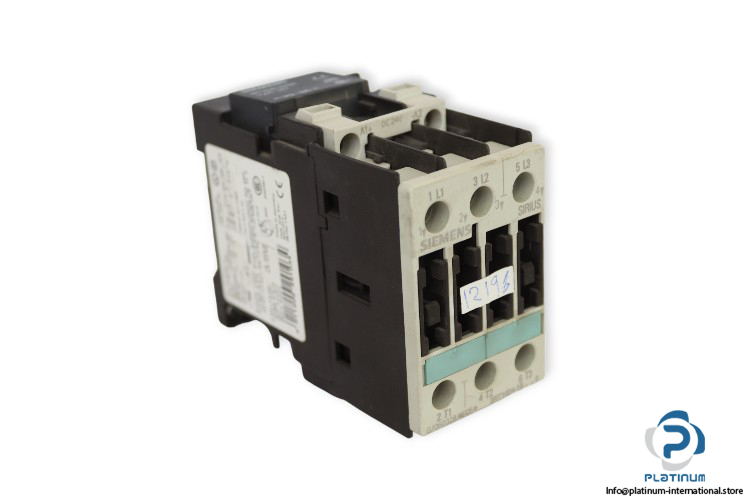

Siemens 3RT1024-1BB40 Power Contactor 3P

Manufacturer: Siemens
Type: Power Contactor
Brand: Sirius
Model: 3RT10241BB40

Size: S0
Successor Model: 3RT2024-1BB40
Control Supply Voltage: 24 V DC
Rated Operating Power: 5.5 kW (400 V AC)
Rated Operating Current: 12 A (400 V AC)
Insulation voltage Ui: 690 V
Protection Class IP: IP20
Frequency: 50/60 Hz
Rated current Ie: 40 A
General use: 600 V AC, 35 A
Standard: IEC / EN 60 947-4-1
No. of poles: 3
Operation Ambient Temperature: -25 … 60 °C
Dimensions (W x D x H): 45 x 101 x 85 mm
