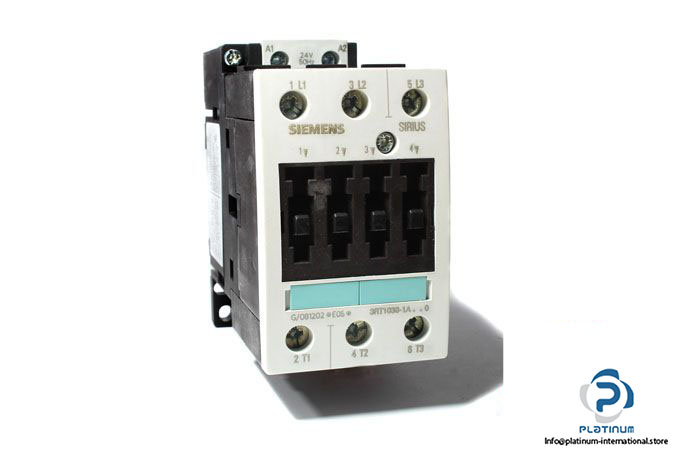

Siemens 3RT1036-1AB00 Power Contactor

Manufacturer: Siemens

Type: Power Contactor

Brand Name: Sirius

Model: 3RT1036-1AB00

Successor Type: 3RT2036-1AB00

Size: S2

Control Supply Voltage: 24 V AC

Rated Operating Power: 22 kW (400 V AC)

Rated Operating Current: 50 A (400 V AC)

Control Supply Voltage Frequency: 50 Hz

Standard: IEC/EN 60947-4-1

Protection Class IP: IP20

Operation Ambient Temperature: -25 … 60 °C

Dimensions (W x D x H): 55 x 115 x 112 mm

Weight: 0.84 kg
