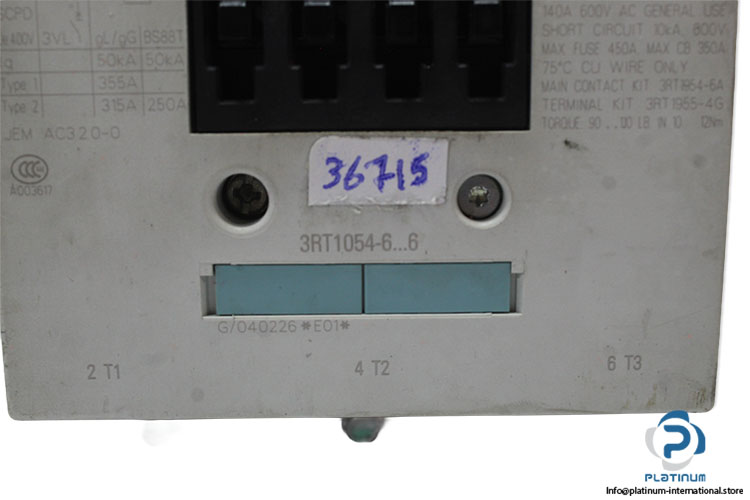

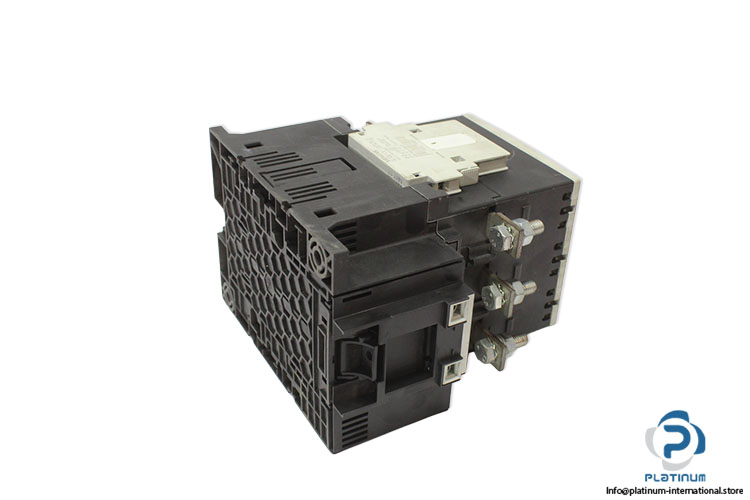

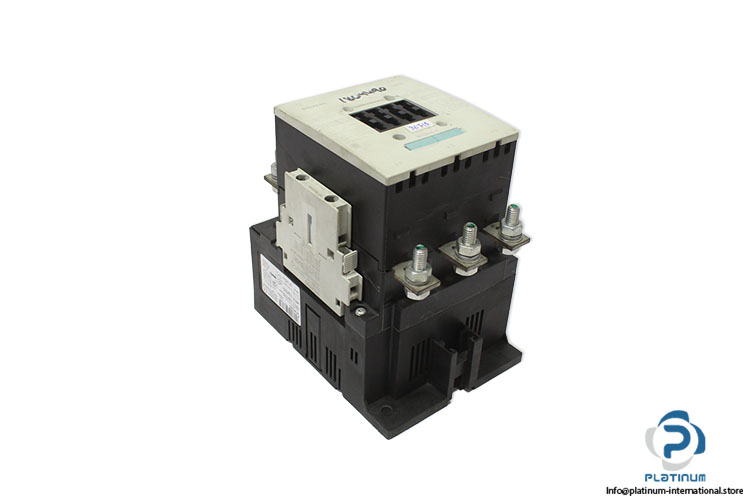

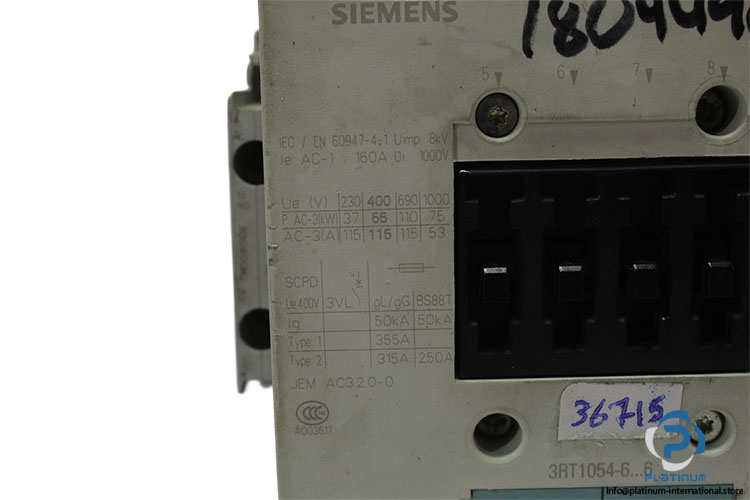

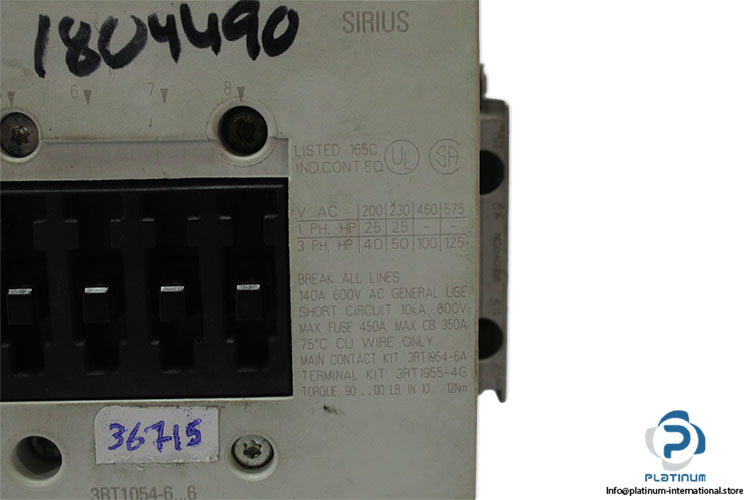

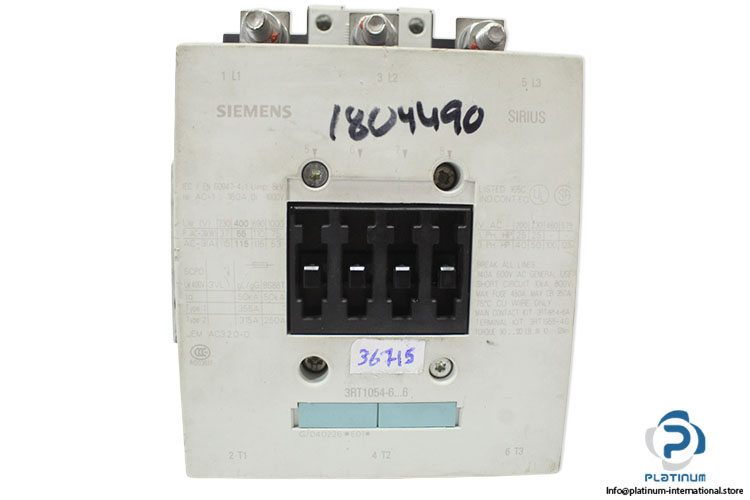

Siemens 3RT1054-6AP36 Power Contactor
Neu
Auf Lager1 EinheitVersandbereit
SIEMENS 3RT1054-6AP36 SIRIUS Power Contactor Industrial SIRIUS power contactor with 3-pole configuration, up to 55 kW operating power at 400 V, IEC 60947 compliance, and Siemens 3RH1921-1DA11 auxiliary contact block for motor control and power switching applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Product Brand Name | SIRIUS |
| Product Designation | Power Contactor |
| Product Type Designation | 3RT1 |
| Size Of Contactor | S6 |
| Power Loss [W] | For Rated Value Of The Current ? At AC In Hot Operating State 21 W ? At AC In Hot Operating State Per Pole 7 W ? Without Load Current Share Typical: 5.2 W |
| Standard | IEC 60947,VDE 0660 |
| Insulation Voltage | Of Main Circuit With Degree Of Pollution 3 Rated Value 1 000 V/ Of Auxiliary Circuit With Degree Of Pollution 3 Rated Value 500 V |
| Surge Voltage Resistance | Of Main Circuit Rated Value 8 Kv ? Of Auxiliary Circuit Rated Value 6 Kv |
| Maximum Permissible Voltage For Protective Separation Between Coil And Main Contacts According To EN 60947-1 | 690 V |
| Installation Altitude At Height Above Sea Level Maximum | 2 000 M Ambient Temperature ? During Operation: -25 ... +60 °C |
| Number Of Poles For Main Current Circuit | 3 |
| Number Of NO Contacts For Main Contacts | 3 |
| Operating Voltage | At AC-3 Rated Value Maximum 1 000 V ? At AC-3e Rated Value Maximum 1 000 V |
| Operating Power | At AC-3 — At 230 V Rated Value 37 Kw — At 400 V Rated Value 55 Kw |
| Number Of NC Contacts For Auxiliary Contacts Instantaneous Contact | 0 Number Of NO Contacts For Auxiliary Contacts Instantaneous Contact: 3 |
| Height | 172 Mm |
| Width | 120 Mm |
| Depth | 170 Mm |

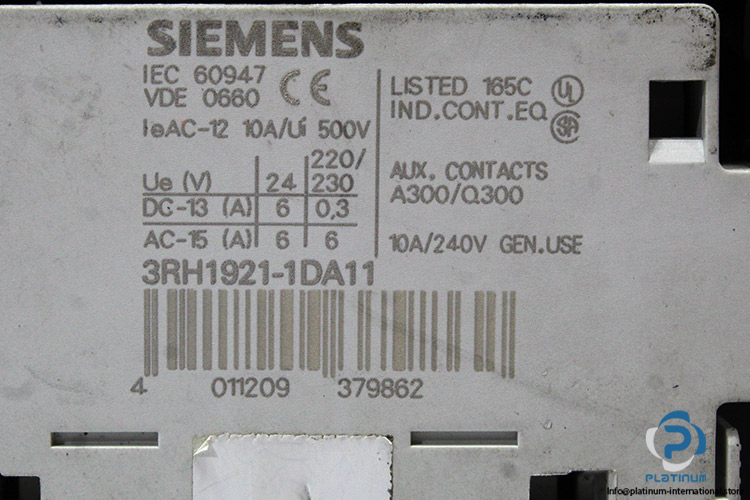

| Attached with | Siemens 3RH1921-1DA11 Auxiliary Contacts Block |
| SN | 4011209379862 |
| Number of Contacts | 2 |
| Mounting Style | DIN Rail Mount |
| Terminal Type | Screw Terminal |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1099427 |
| Weight | 3,16 |
