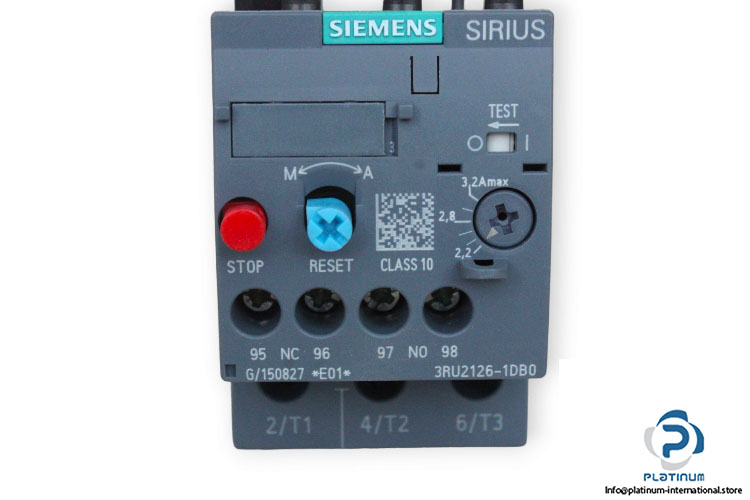

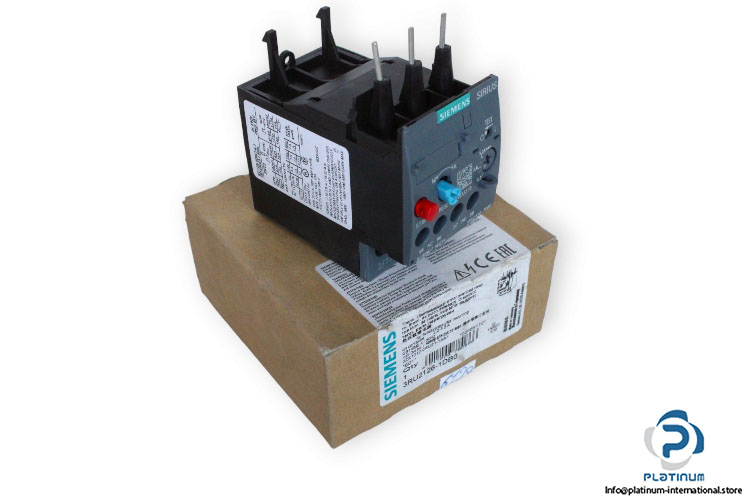

Siemens 3RU2126-1DB0 Overload Relay

Manufacturer: SIEMENS
Type: Overload Relay
Brand: SIRIUS
Model: 3RU2126-1DB0

Size of Overload Relay: S0
Power Loss [W] For Rated Value of The Current at AC In Hot
Operating State: 5.7 W
Insulation Voltage with Degree of Pollution 3 At AC Rated Value: 690 V
Surge Voltage Resistance Rated Value: 6 Kv
Maximum Permissible Voltage for Protective Separation In
Number of Poles For Main Current Circuit: 3
Adjustable Current Response Value Current of The Current dependent Overload Release
2.2 … 3.2 A
Operating Voltage:
 Rated Value: 690 V
At AC-3e Rated Value Maximum: 690 V
Operating Frequency Rated Value: 50 … 60 Hz
Operational Current Rated Value: 3.2 A
Operational Current At AC-3e at 400 V Rated Value: 3.2 A
Dimensions: 85 X 45 X 85 mm
Protection Class IP: IP20
