Siemens 3RV1031-4EA10 Circuit Breaker
Neu
Auf Anfrage verfügbar
CIRCUIT BREAKER
Siemens Sirius 3RV1031-4EA10 is a 3-pole motor protection circuit breaker with 32 A rating, adjustable from 22 to 32 A, featuring high breaking capacity and thermomagnetic release in S2 compact size.32A3RV1031-4EA10690VAdjustableBreakerCircuitCurrentIndustrialmotorProtectionS2SiemensSiriusSizeThermomagnetic
Gebraucht
Auf Lager
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

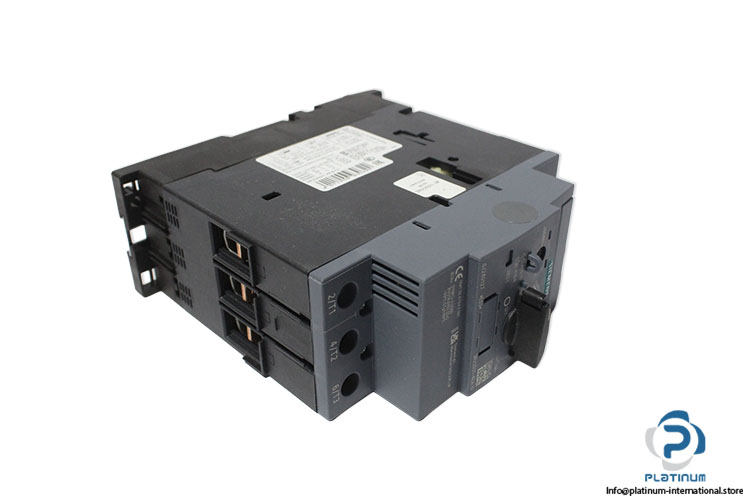

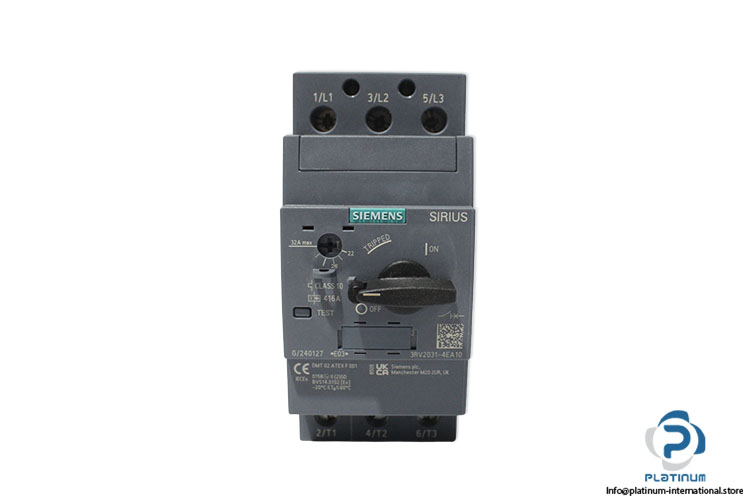

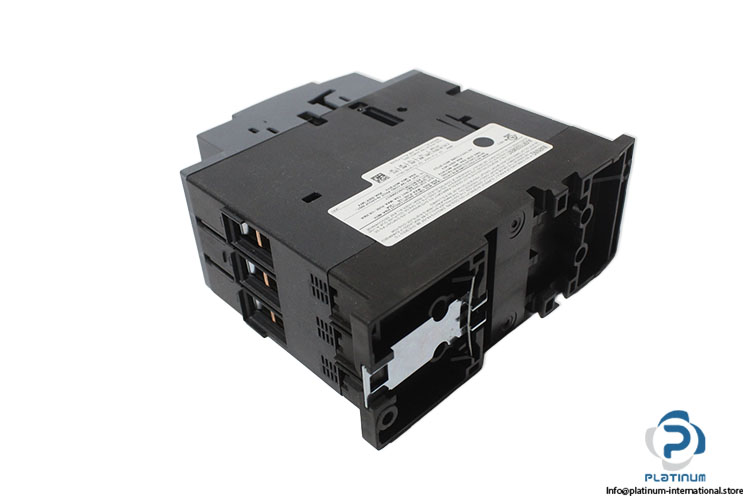

SIEMENS SIRIUS 3RV1031-4EA10 CIRCUIT BREAKER
The Siemens 3RV1031-4EA10 is a compact and high-performance circuit breaker from the Sirius family, engineered for precise motor protection in industrial environments. This 3-pole breaker features an adjustable current range, robust short-circuit handling, and thermomagnetic release, making it ideal for safeguarding motors and reducing downtime. With reliable performance at up to 690 V AC and a compact S2 size, it is a trusted choice for modern control panels.
Manufacturer: Siemens
Type: Circuit Breaker
Family: Sirius
Model: 3RV1031-4EA10
Successor: 3RV2031-4EA10
Field of Application: Motor Protection
Breaking Capacity (Icu):
100 kA at 240 V AC
50 kA at 400 V AC
4 kA at 690 V AC
| Size | S2 |
| Number of Poles | 3 |
| Rated Current | 32 A |
| Adjustable Current Range | 22 / 32 A |
| Rated Operating Voltage | 690 V AC |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Operating Power | 15 kW |
| Short-Circuit Release | 416 A |
| Service Frequency | 50/60 Hz |
| Terminal Type | Screw Terminals |
| Design Release | Thermomagnetic |
| Dimensions (W x D x H) | 55 x 149 x 140 mm |
| Protection Class | IP20 |
| Trip Class | Class 10 |
| Operating Temperature | -20 / 60 °C |
