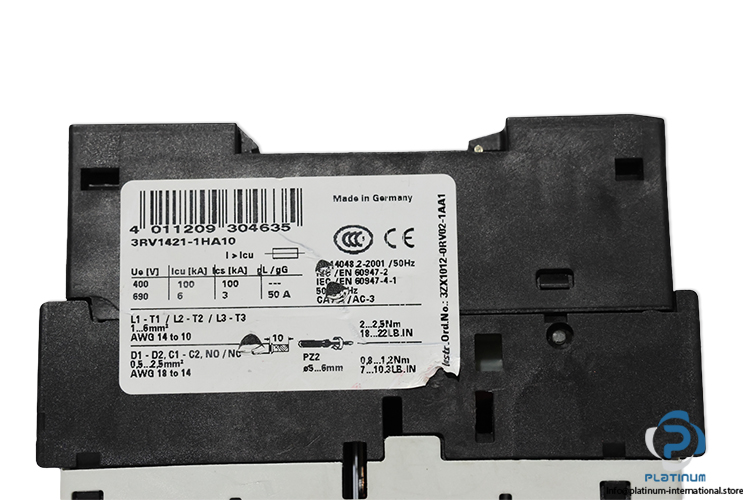

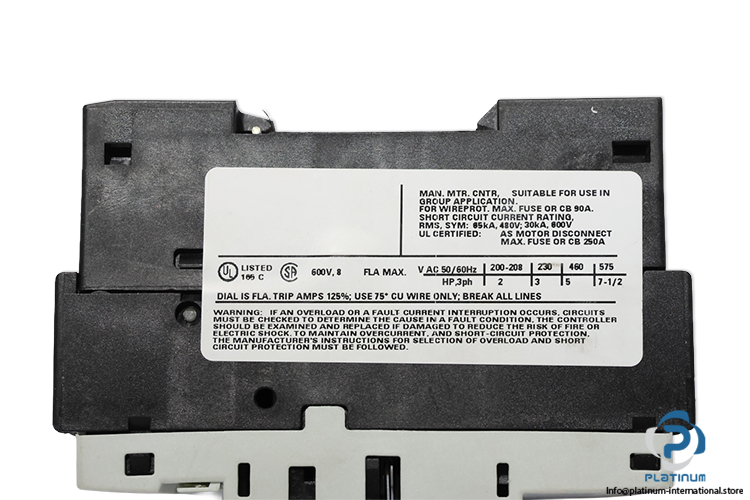

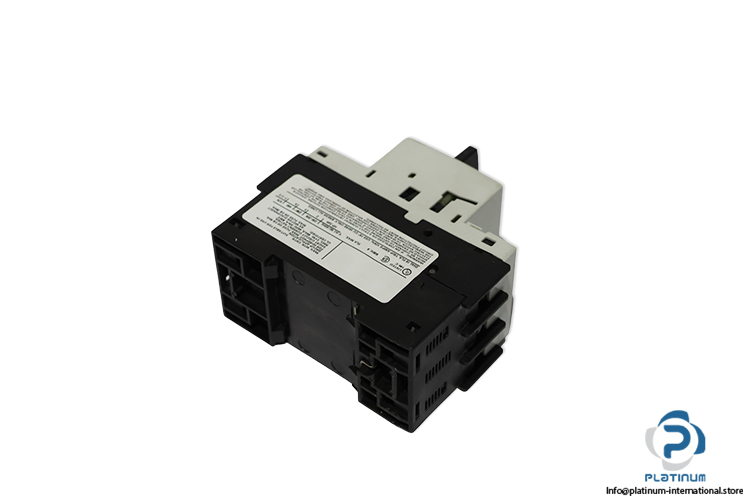

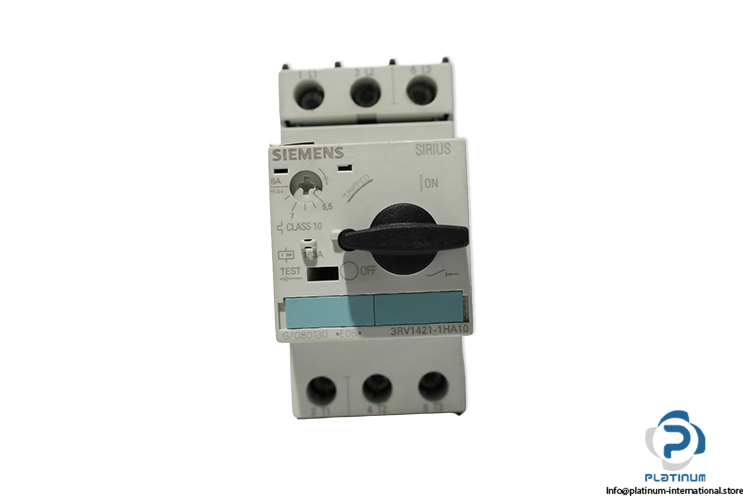

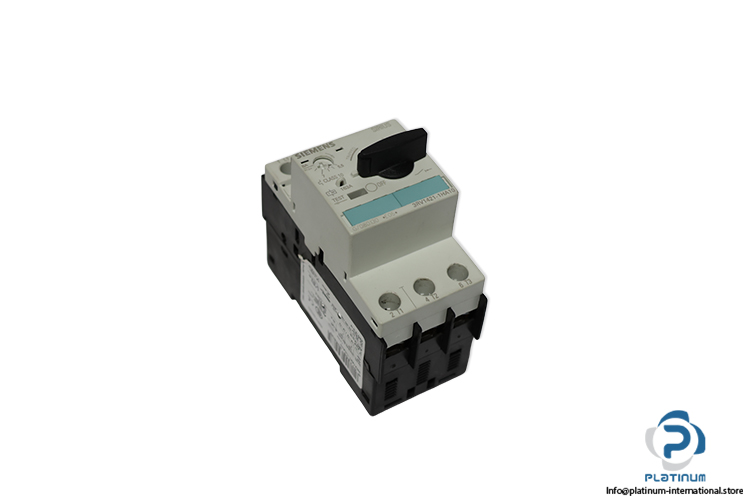

Siemens 3RV1421-1HA10 Circuit Breaker
Gebraucht
Auf Lager1 EinheitVersandbereit
Circuit Breaker The SIEMENS 3RV1421-1HA10 SIRIUS is a 3-pole S0 circuit breaker with 5.5–8 A adjustable current and 100 kA breaking capacity for industrial electrical applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Brand Name | SIRIUS |
| Size | S0 |
| Operating Voltage | 690 V AC/DC |
| Operating Current at 400 V AC-3 | 8 A |
| Adjustable Response Current | 5.5 … 8 A |
| N-Release Current | 163 A |
| Power Loss | 7 W |
| Rated Surge Voltage Resistance | 6000 V |
| Breaking Capacity Limit Short-Circuit Current (lcu) | 100 kA |
| Poles No. | 3 |
| Electrical Connection | Screw-Type Terminals |
| Protection Class | IP20 |
| Operation Temperature | -20 … 70 °C |
| Dimensions | 97 x 45 x 96 mm |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1104078 |
| Weight | 0,33 |
