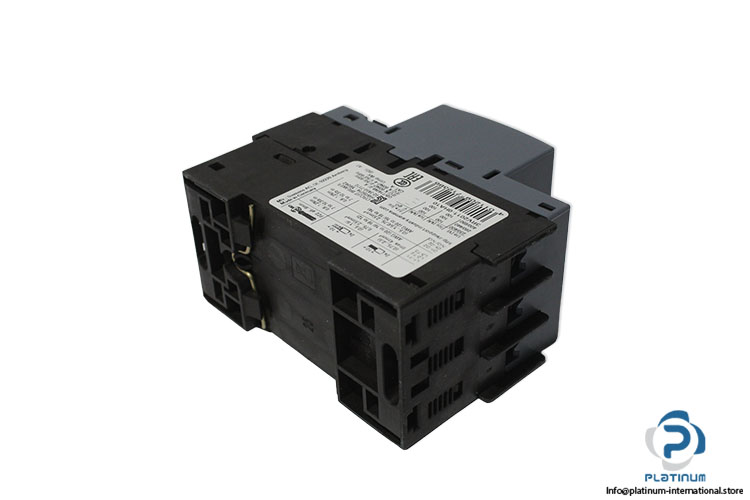

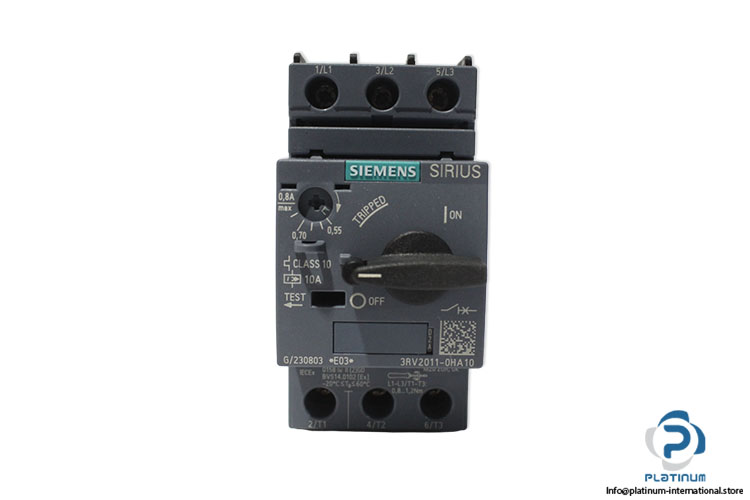

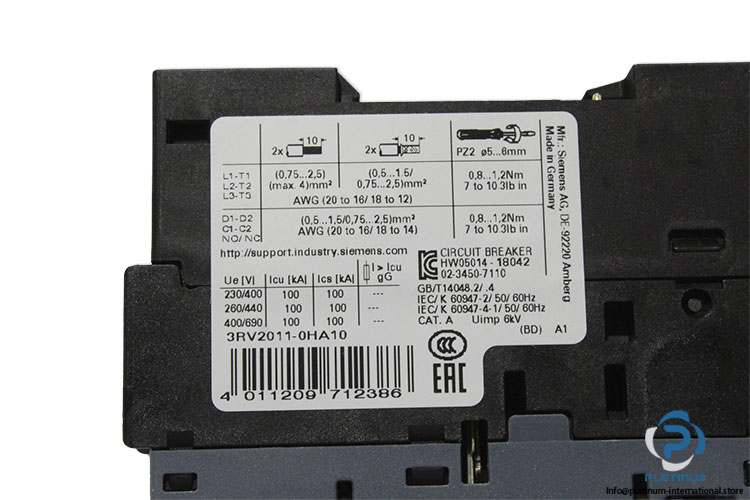

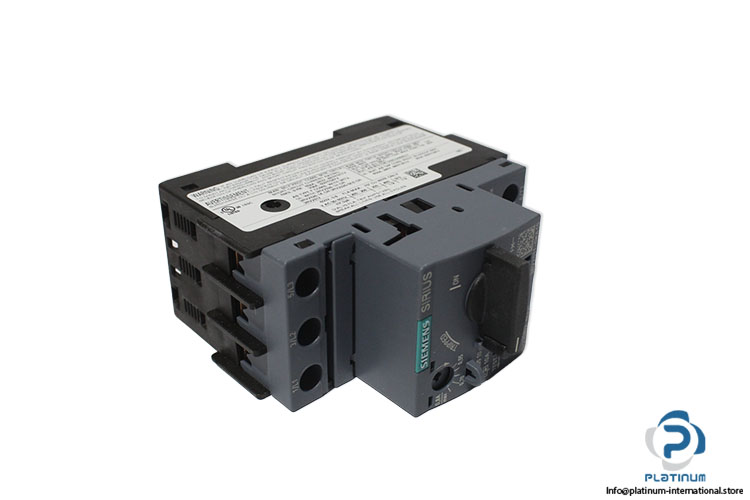

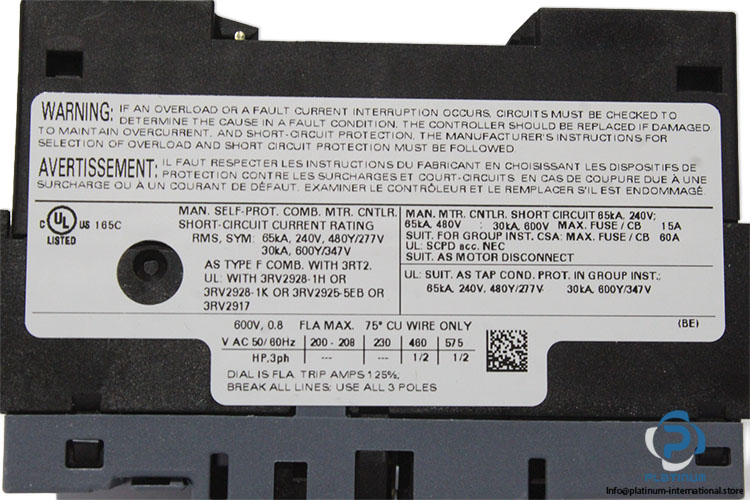

Siemens 3RV2011-0HA10 Circuit Breaker
Neu
Auf Lager2 EinheitenVersandbereit
The Siemens SIRIUS 3RV2011-0HA10 is a three-pole motor protection circuit breaker featuring an adjustable response current of 0.55–0.8 A, operating voltage up to 690 V, and 100 kA short-circuit breaking capacity. Designed for reliable overload and short-circuit protection in industrial motor control and automation systems.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Manufacture | Siemens |
| MNR | 3RV2011-0HA10 |
| Product brand name | SIRIUS |
| Product designation | 3RV2 |
| Serial No. | 1P3RV2011-0HA10+SG/230803 |
| Size | S00 |
| Adjustable response current | 0.55 … 0.8 A |
| Operating Voltage Rated Value | 20 … 690 V |
| Operational current rated value | 0.8 A |
| Rated impulse with stand voltage Uimp | 6 kV |
| Operating Power | at 230 V rated value 0.1 kW, at 400 V rated value 0.18 kW |
| Insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| Operational short-circuit current breaking capacity (Ics) at AC | 400V, 100 kA |
| Maximum short-circuit current breaking capacity (Icu) at AC | 400V, 100 kA |
| Frequency | 50/60 Hz |
| Standard | IEC/EN/K 60947-2, IEC/EN/K 60947-4-1 |
| Operating temperature | -20 … 60°C |
| Protection class | IP20 |
| No. of poles | 3 |
| Type of electrical connection | screw-type terminals |
| Dimensions | 97 x 45 x 97 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093466 |
| Weight | 0,28 |
