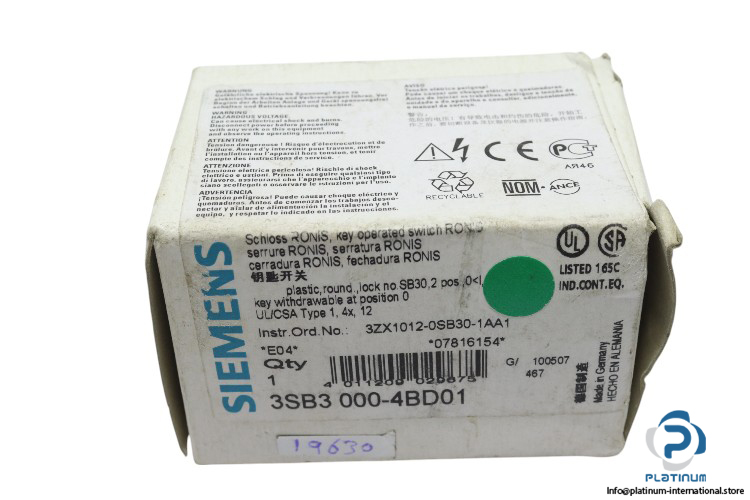

Siemens 3SB3 000-4BD01 KEY-Operated Switch
Neu
Auf Lager1 EinheitVersandbereit
Schlüsselschalter Der Siemens 3SB3 000-4BD01 Schlüsselschalter verfügt über einen Montage-Durchmesser von 22 mm, IP66 Schutz und beinhaltet 2NC und 1NO Kontaktblöcke für industrielle Anwendungen.
000-4BD011NO22mm2NC3SB33SB3400-0B3SB3400-0EBlockContactControlIndustrialIP66Key-OperatedMountingSiemensSwitch
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

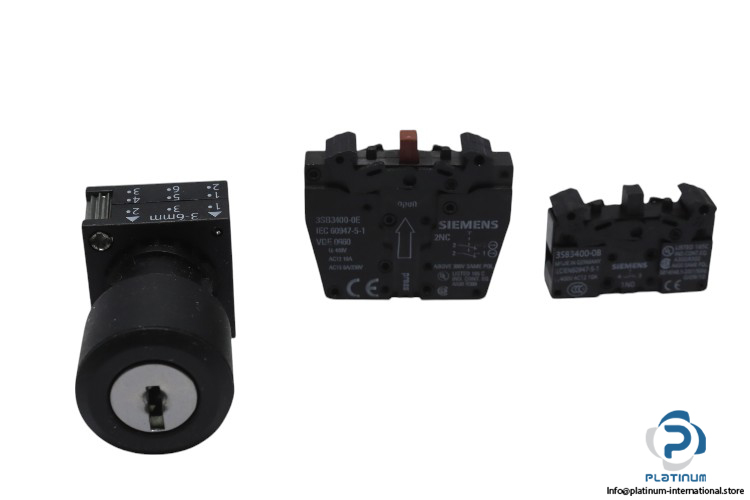

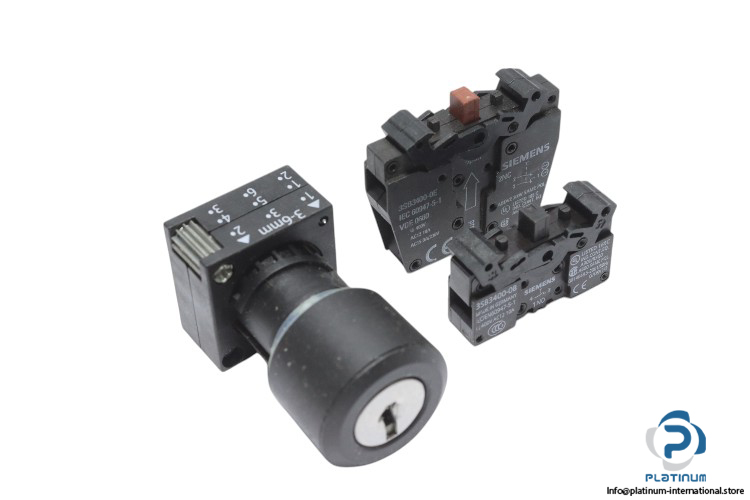

Siemens 3SB3 000-4BD01 Key-Operated Switch
The Siemens 3SB3 000-4BD01 Key-Operated Switch is a durable control switch designed for secure access control in industrial applications. With a robust plastic construction, IP66 protection, and a 22mm mounting diameter, this switch ensures reliability in demanding environments.
Manufacturer: Siemens
Type: Key-Operated Switch
Part No.: 3SB3 000-4BD01

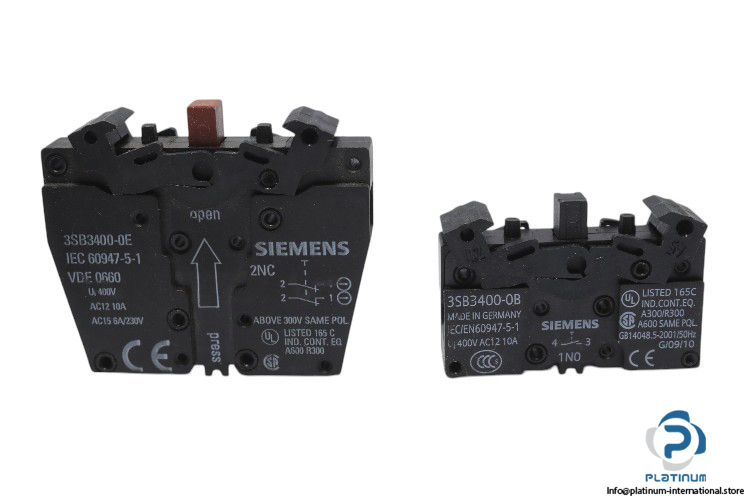

Included Attachments
Siemens 3SB3400-0E Contact Block
Siemens 3SB3400-0B Contact Block
| Outer Diameter | 28.5 mm |
| Mounting Diameter | 22 mm |
| Actuating Angle | Clockwise 50° |
| Shape of Installation Opening | Round |
| Material | Plastic |
| Number of Control Points | 1 |
| Number of Switching Positions | 2 |
| Protection Class | IP66 |
| Ambient Temperature | -25 to 70°C |
| Part No. | 3SB3400-0E |
| Voltage | 400 V AC12 @ 10 A / 230 V AC15 @ 6 A |
| Contact | 2NC |
| Part No. | 3SB3400-0B |
| Voltage | 400 V AC12 @ 10 A |
| Contact | 1 NO |
