Siemens 3SB3 203-0AA21 Push Button
Der Siemens Taster 3SB3 203-0AA21 ist ein vielseitiger Taster, der für industrielle Anwendungen entwickelt wurde. Er verfügt über einen weiten Spannungsbereich, Schraubklemmen und IP66-Schutz, was ihn ideal für den Einsatz in Steuerungspanels macht.

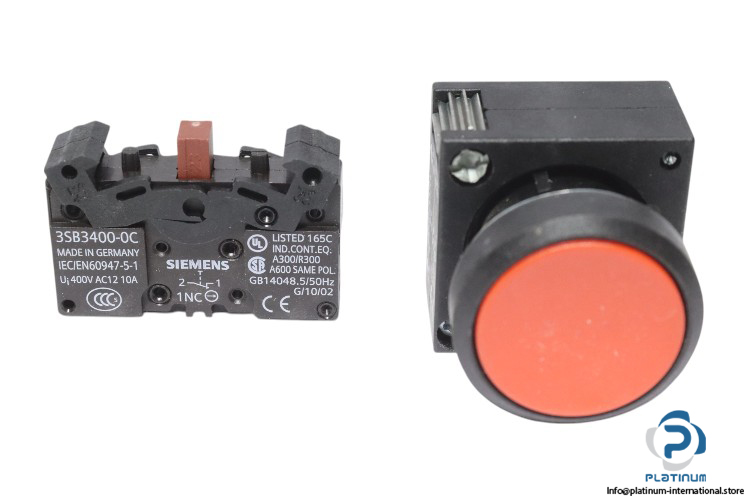

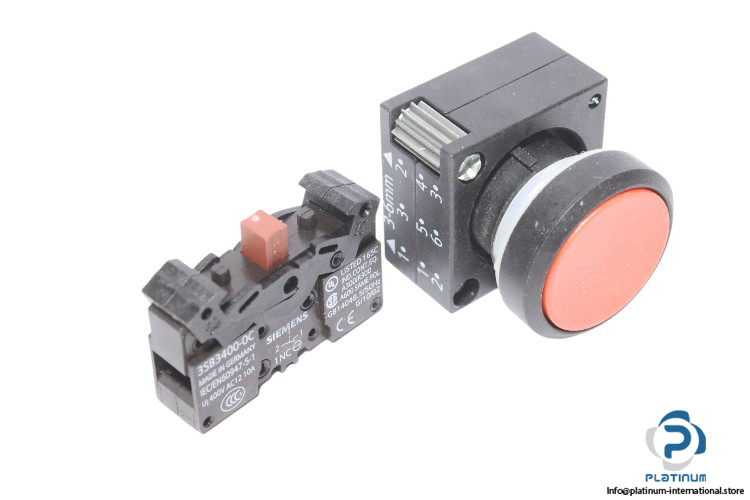

Siemens Push Button 3SB3 203-0AA21
The Siemens Push Button 3SB3 203-0AA21 is designed for industrial use, offering reliable performance in challenging environments. With a wide operating voltage range from 5 to 400V, this push button is equipped with screw-type terminals for secure electrical connections. It features two switching positions and is ideal for front mounting in various control panels.
Manufacturer: Siemens
Type: Push Button
Model: 3SB3 203-0AA21
Designed for durability and ease of installation, this push button is an essential component for controlling machinery and electrical systems. With its wide voltage range and IP66 protection, it's suitable for various industrial environments.
| Operating Voltage | 5 to 400V |
| Design of Electrical Connection | Screw-type terminals |
| Number of Switching Positions | 2 |
| Type of Mounting | Front mounting |
| Shape of Installation Hole | Round |
| Material of Front Ring | Plastic |
| Tightening Torque | 1 N·m |
| Protection Class | IP66 |
| Ambient Temperature | -25 / 70 °C |
| Installation Width | 28.5 mm |
| Mounting Diameter | 22 mm |
| Mounting Height | 8 mm |
