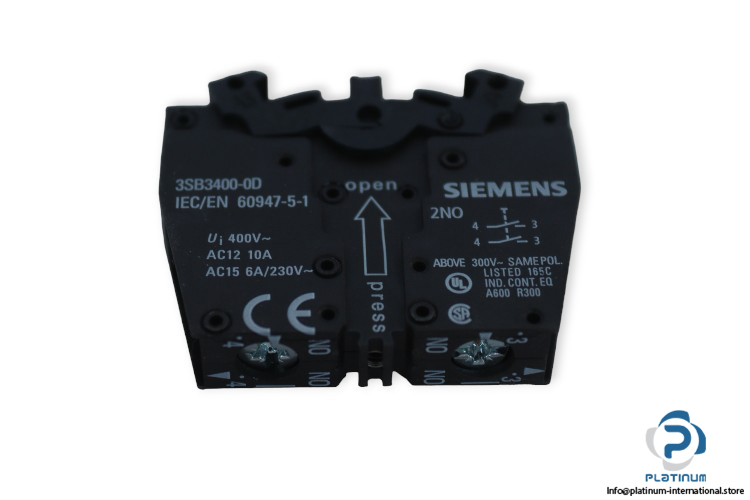

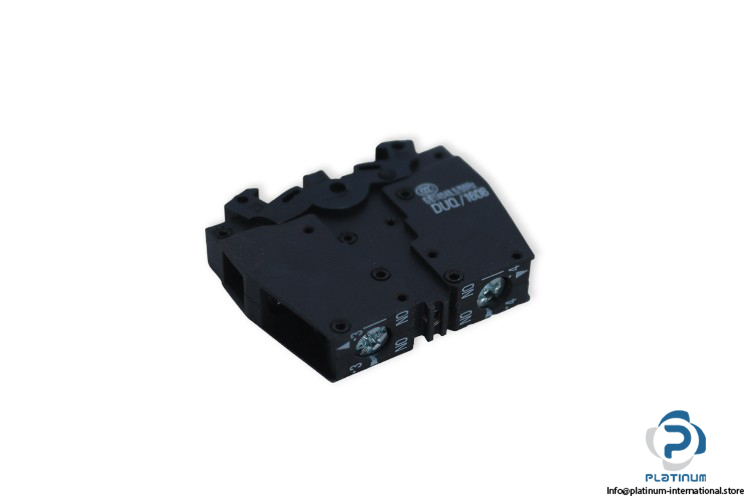

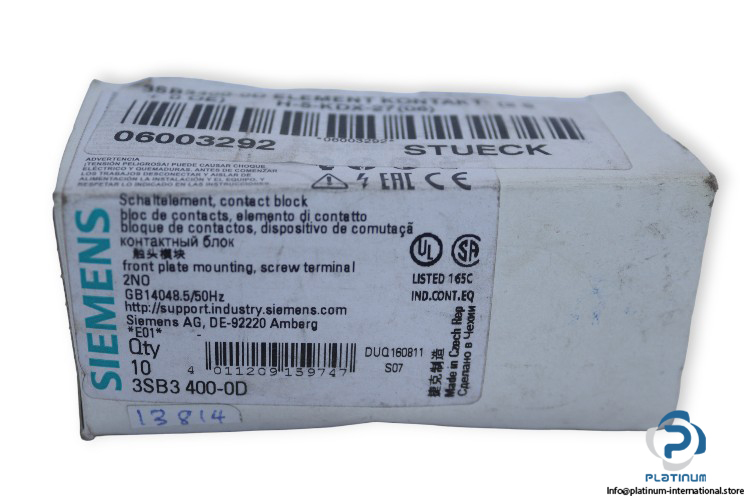

Siemens 3SB3 400-0D Contact Block

Manufacturer: Siemens
Type: Actuator/Indicator Component Contact Block
MNR: 3SB3400-0D

Operating voltage at AC:
at 50 Hz rated value: 400 V
at 60 Hz rated value: 300 V
Operating voltage at DC: 24 V DC
Insulation voltage rated value Ui: 400 V AC
Surge voltage resistance rated value: 4 kV
Thermal current Ith: 10 A
Contact: 2 Normally open
Switching rating AC15: 230 V AC,6A
Degree of pollution class: 3
Protection class IP: of the enclosure IP40, of the terminal IP20
Standard: IEC/EN 60947-5-1
Type of electrical connection: screw-type terminals
Mounting type: front mounting
Ambient temperature during operation: -25 … +70 °C
Dimensions: 45 x 10 x 34 mm
