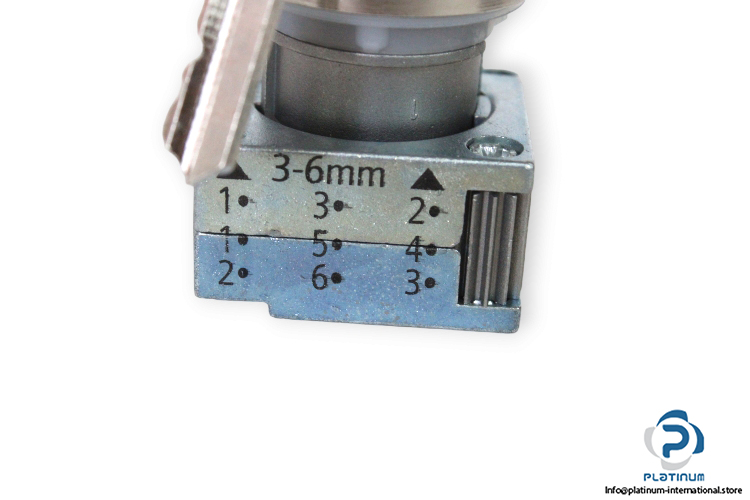

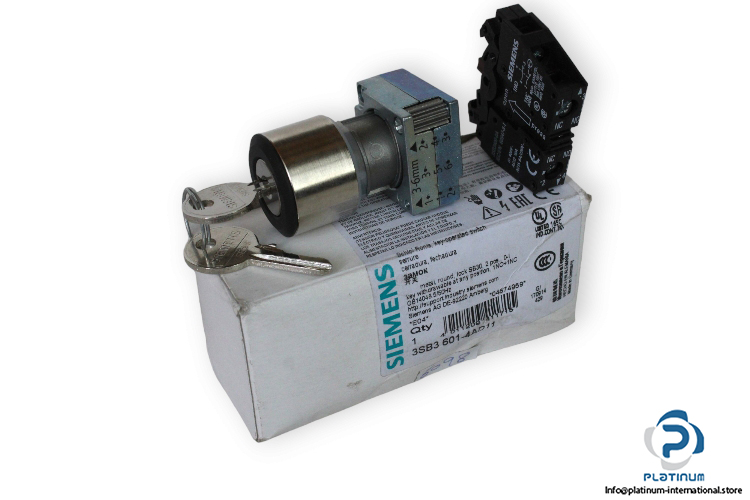

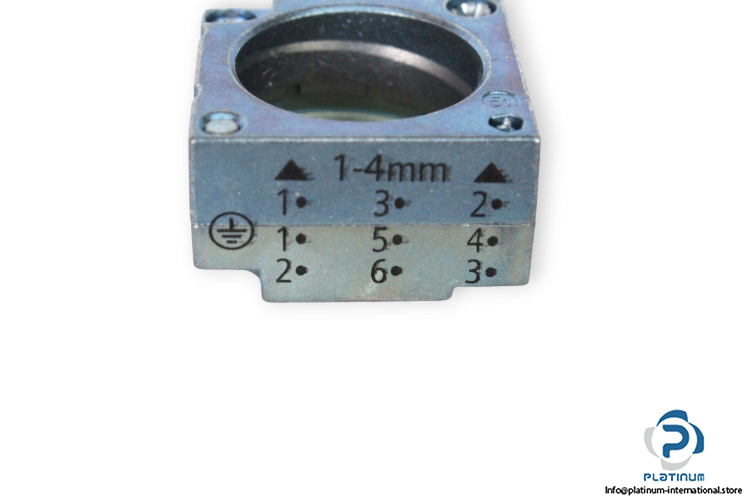

Siemens 3SB3 601-4AD11 KEY-Operated Switch

Manufacturer: SIEMENS
Type: Key-operated switch
Model: 3SB3601-4AD11

Shape of The Enclosure Front: round
Material Of The Actuating Element: Metal
Type Of Unlocking Device: Key Unlatching
Number Of Switching Positions: 2
Actuating Angle: Clockwise 50°
Number Of Lampholders: 0
Number Of Switching Elements: 1
Operating Voltage Rated Value: 5 … 400 V

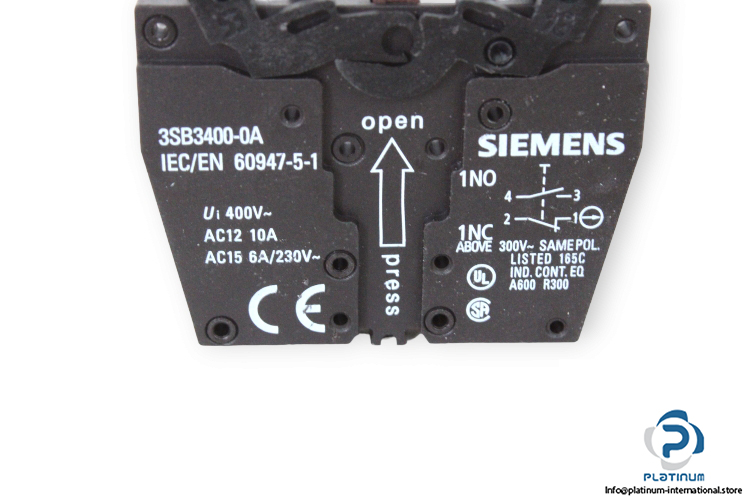

Number Of No Contacts For Auxiliary Contacts: 1
Number Of Nc Contacts For Auxiliary Contacts: 1
Type Of Electrical Connection: Screw-Type Terminals
Tightening Torque Of The Screws In The Bracket: 1.4 … 1.6 N·M
During Operation: -25 … +70 °C
Mounting Diameter: 22 Mm
Dimensions: 44 x 28.5 x 63 mm
