Siemens 3SB3 801-0EF3 Emergency Stop Mushroom Pushbutton
Neu
Auf Lager9 EinheitenVersandbereit

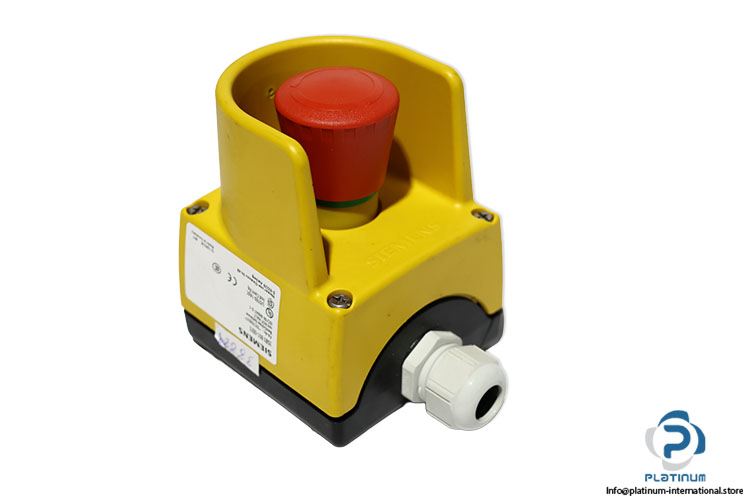

Emergency Stop Mushroom Pushbutton SIEMENS emergency stop mushroom pushbutton with red 40 mm actuator, 2 NC contacts, 22 mm mounting and rotate-to-unlatch mechanism.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| MNR | 3SB3801-0EF3 |
| FA-Nr. | 03103937 |
| Design of the operating mechanism | Emergency stop mushroom pushbutton (Red, 40mm) |
| Mounting Standard | 22mm |
| Contacts Configuration | 2 NC (Normally Closed) contact blocks |
| Type of unlocking device | rotate-to-unlatch mechanism |
| Operating voltage | 5 … 400 V AC/DC |
| Operating current | 10 A Max. |
| Ambient temperature during operating | -25 … +70°C |
| Design of electrical connection | Cable routing above, below / left, right, each 1 x M20 |
| Material of the enclosure | plastic |
| Standard | IEC/EN 60947-5-1 |
| Certificate | CE, CCC, UL, CSA |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1098390 |
| Weight | 0,26 |
