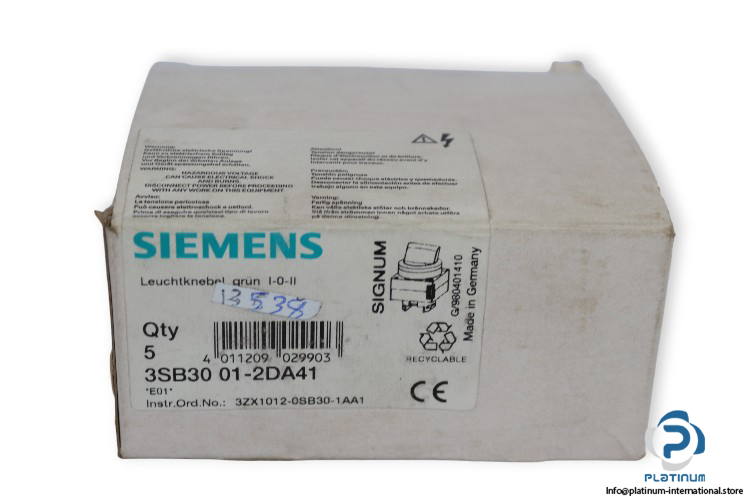

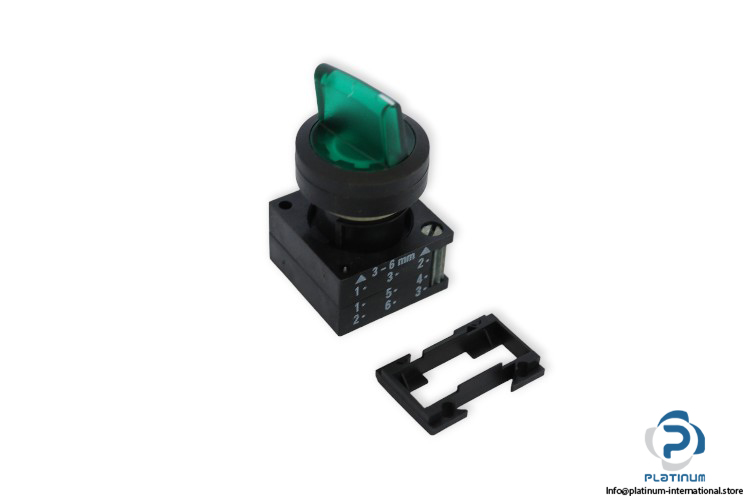

Siemens 3SB30 01-2DA41 Selector Switch

Manufacturer: Siemens
Type: Selector Switch
MNR: 3SB3001-2DA41
Order No.: 3ZX1012-0SB30-1AA1

Design of the product: Round
Material: Plastic
Number of command points: 1
Manner of function of the actuating element: Latching
Outer diameter of the actuating element: 55 mm
Type of unlocking device: rotate-to-unlatch mechanism
Number of switching positions: 3
Switching position: 1-0-11
Actuating angle: clockwise: 50°, anticlockwise: 50°
Color: Green
Mounting type: front mounting
Mounting diameter: 22 mm
Mounting height: 24 mm
Installation width: 28.5 mm
Installation depth: 29 mm
Protection class: IP66
Ambient temperature during operation: -25 … +70 °C
