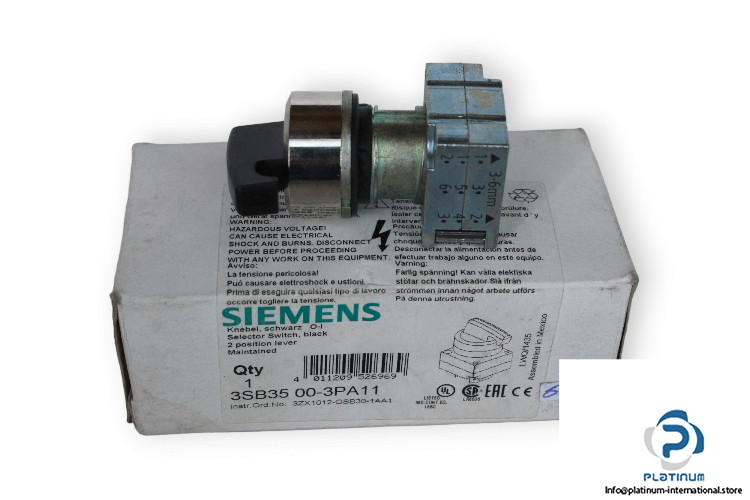

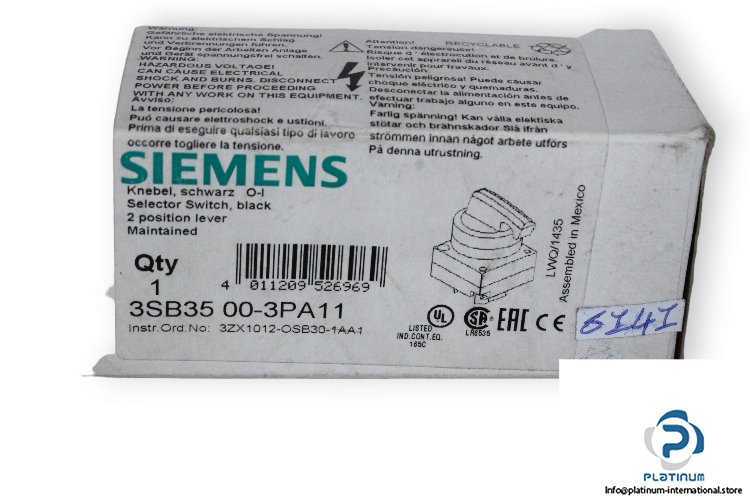

Siemens 3SB35 00-3PA11 Selector Switch
Manufacturer: SIEMENS
Type: Selector Switch
Model: 3SB3500-3PA11
Successor Model: 3SU1052-2CF10-0AA0
Design of the product: Single device round
Functionality / of the actuator: Latching
External diameter / of the activation element: 28.5 mm
number of switching positions: 2
Actuating element: Extended handle
Mounting Diameter: 22 mm
Dimension: 28 x 37 x 29 mm
Operation ambient temperature: -25 … 70°C
protection class IP: IP67
