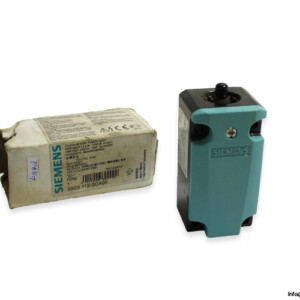

Siemens 3SE5 112-0CA00 Position Switch
Gebraucht
Auf Lager1 EinheitVersandbereit
Safety Position Switch
SIEMENS SIRIUS safety position switch with snap-action contacts, 1 NO + 1 NC output, metal housing, and IP66/IP67 protection for industrial automation safety applications.
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

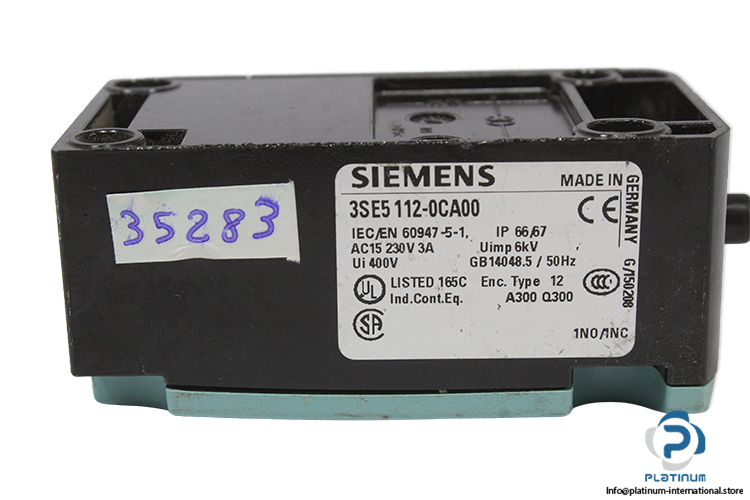

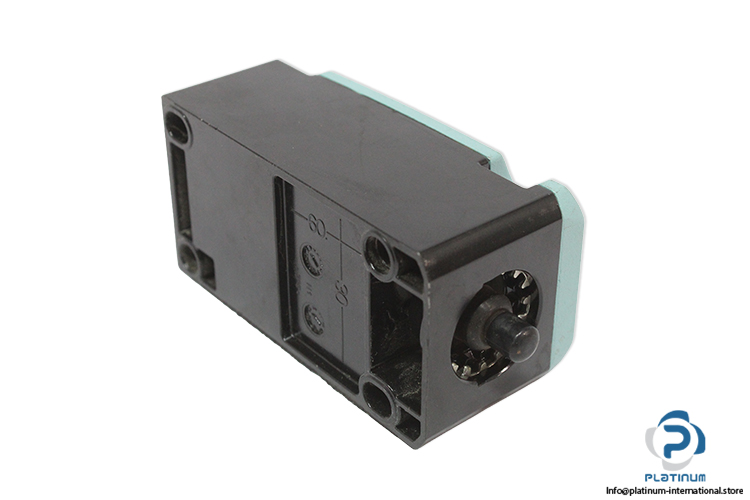

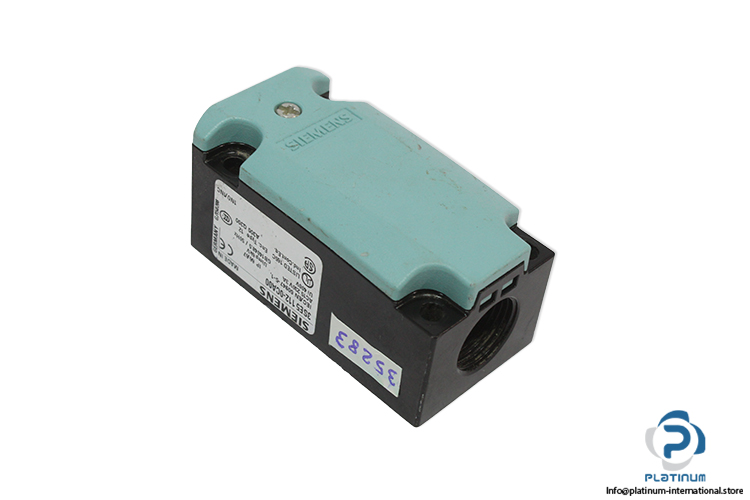

SIEMENS 3SE5112-0CA00 Safety Position Switch
The SIEMENS 3SE51120CA00 safety position switch from the SIRIUS range is designed for reliable position monitoring and safety control in industrial automation systems. With snap-action contacts, robust metal housing, and high ingress protection, it ensures dependable operation in demanding environments.
Manufacturer: SIEMENS
Type: Safety Position Switch
Model: 3SE5 112-0CA00
Brand Name: SIRIUS
Short Name: 3SE5
| Rated Impulse Voltage (Uimp) | 6 kV |
| Output Configuration | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Contact Operation | Snap Action |
| Rated Insulation Voltage | 400 V |
| Max. Contact Current | 3 A |
| Connection | Cable Entry 1x (M20 x 1.5) |
| Material | Metal |
| Protection Class | IP66 / IP67 |
| Ambient Temperature | -25 to 85 °C |
| Dimensions | 78 x 40.5 x 37.3 mm |
