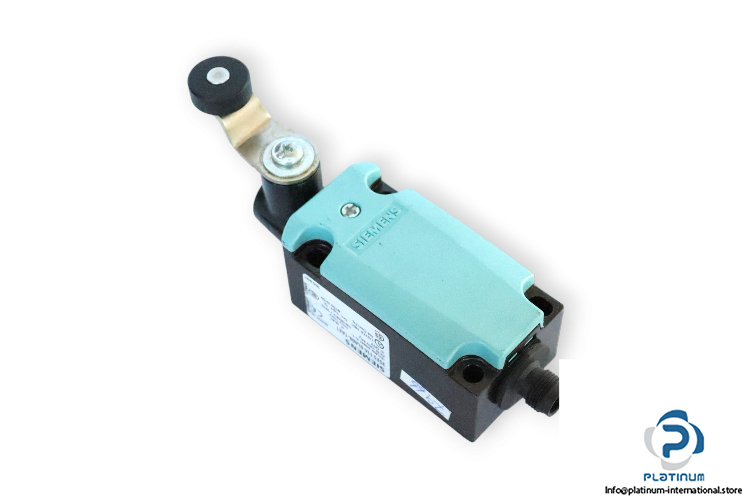

Siemens 3SE5 114-0LA00-1AE1 Limit Switch

Manufacture: Siemens
Type: Limit Switch

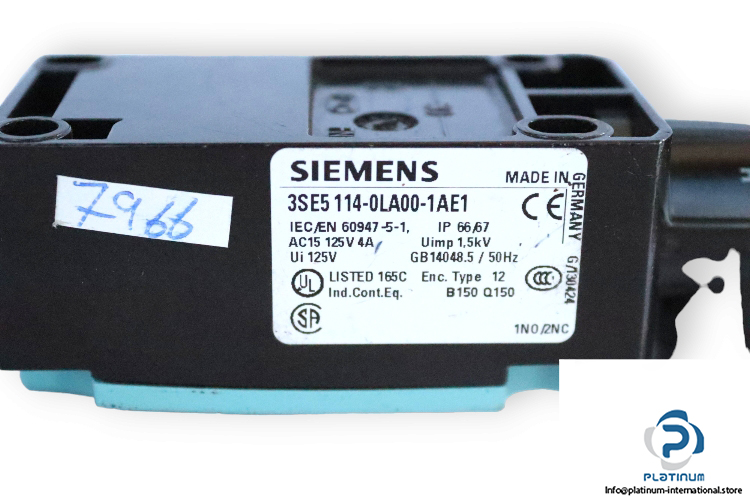

MNR: 3SE5 114-0LA00-1AE1
Product brand name: SIRIUS
Product type designation: 3SE5

Thermal current: 4 A

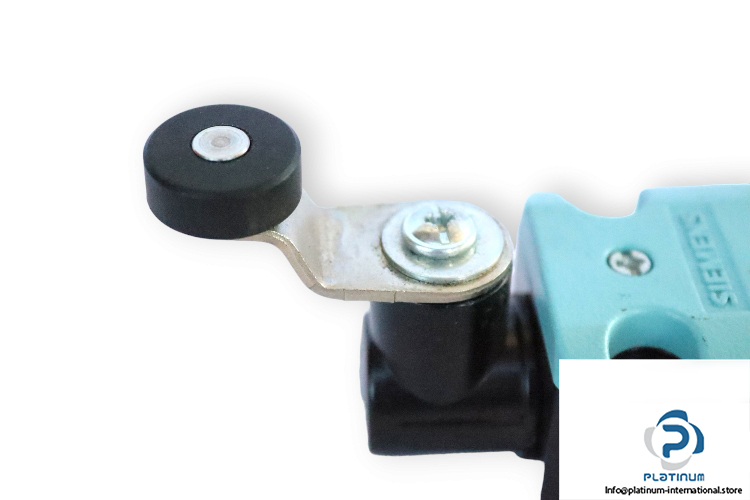

Shape of the Switch Head: Roller
Design of the housing: block, narrow
Material of the enclosure: metal
Design of the actuating element: basic switch with plug
Circuit principle: snap-action contacts

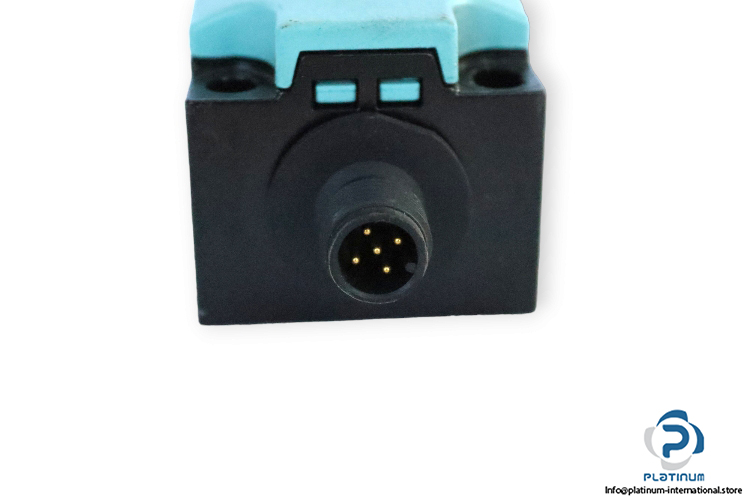

Type of electrical connection: M12 plug, fixed
Fastening method: screw fixing
No. of NC contacts for auxiliary contacts: 2
No. of NO contacts for auxiliary contacts: 1
Temperature during operation: -25 … +85 °C
Protection class: IP66/IP67
