Siemens 3SE5 232-0HE12-1AK5 Position Switch
Gebraucht
Auf Lager1 EinheitVersandbereit
POSITION SWITCH
Siemens 3SE5232-0HE12-1AK5 is a snap-action position switch with a roller lever actuator, IP65 protection, and dual contact output. Engineered for industrial precision and reliability.230v3A3SE5232-0HE12-1AK581346-2ActionActuatorAutomationBCableContactEntryIECIndustrialIP65LeverLimitM20PositionRollerSensorSiemensSnapSwitch
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

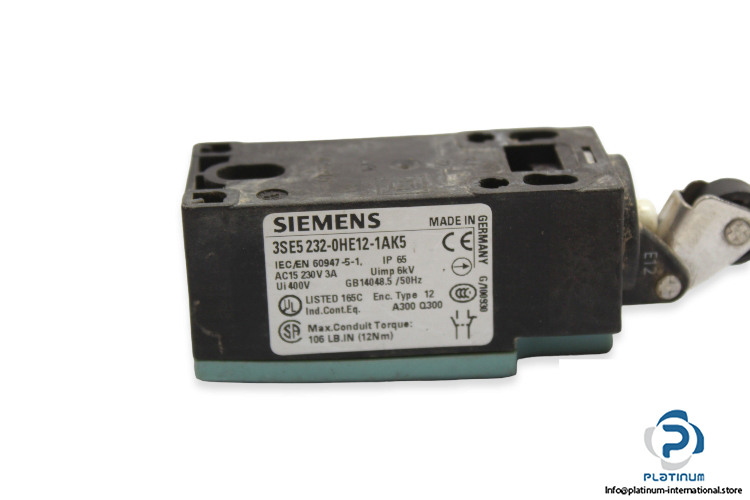

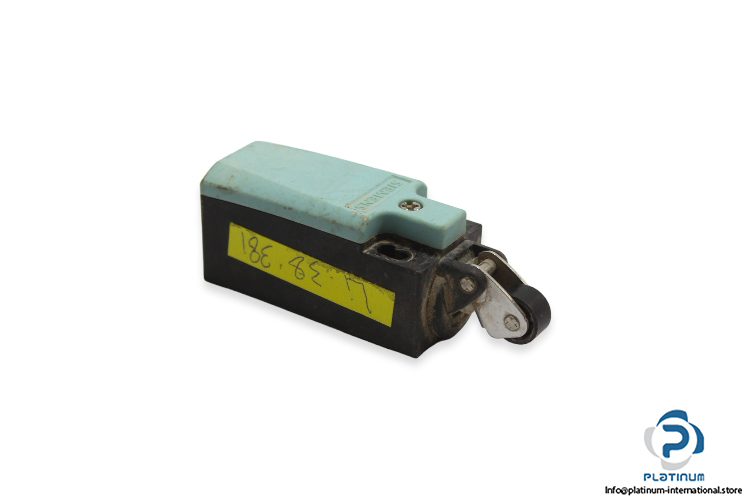

SIEMENS 3SE5232-0HE12-1AK5 POSITION SWITCH
The Siemens 3SE5232-0HE12-1AK5 is a compact and robust position switch designed for high-performance industrial automation tasks. It features a reliable snap-action mechanism, roller lever actuator, and IP65 protection, making it ideal for harsh environments and precise mechanical signaling applications.
Manufacturer: SIEMENS
Type: Position Switch
Model: 3SE5232-0HE12-1AK5
| Output Configuration | 1 NO / 1 NC |
| Contact Operation | Snap-action |
| Actuator Type | Roller lever |
| Switching Voltage max. | 230 V |
| Contact Current max. | 3 A |
| Thermal Current | 10 A |
| Connection | Cable entry, 1x (M20 x 1.5) |
| Protection Class | IP65 |
| Material of the Enclosure of the Switch Head | Plastic |
| Reference Code (IEC 81346-2) | B |
| Ambient Operating Temperature | -25 / +85 °C |
