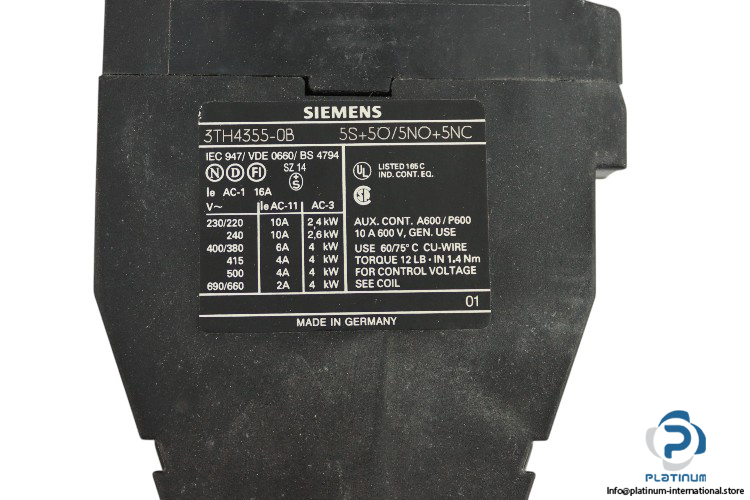

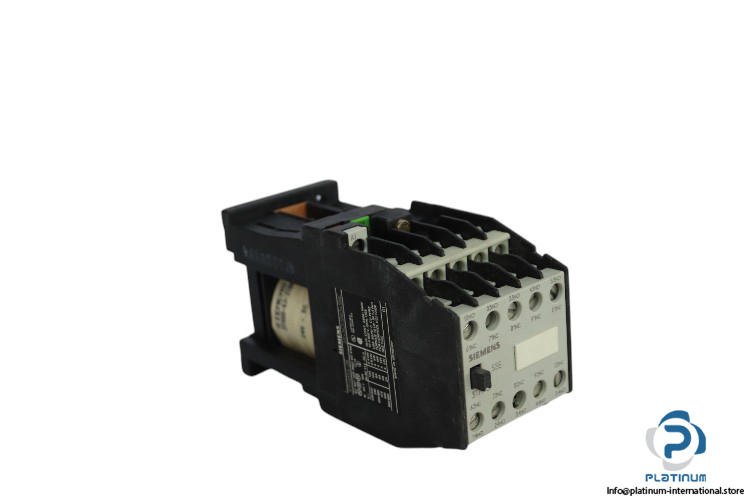

Siemens 3TH4355-0BB4 Contactor Relay
Schützrelais SIEMENS Schützrelais 3TH4355-0BB4 mit 24 V DC Versorgungsspannung, 10 A Betriebsstrom bei 230 V und 5 NO + 5 NC Kontakten. Verfügt über Schraubklemmen und einen weiten Umgebungstemperaturbereich von -25 bis 55 °C für vielseitige industrielle Steuerungsanwendungen.
SIEMENS Contactor Relay 3TH4355-0BB4
The SIEMENS Contactor Relay 3TH4355-0BB4 is designed for reliable control and switching in industrial applications. It features 5 normally open (NO) and 5 normally closed (NC) contacts, providing versatile switching capabilities. With a supply voltage of 24 V DC and operational currents at 230 V and 400 V, it is well-suited for a variety of industrial control circuits. This contactor relay is built to operate in ambient temperatures from -25 to 55 °C, offering robustness in a wide range of environments.
Manufacturer: SIEMENS
Type: Contactor Relay
Model: 3TH4355-0BB4
Technical Specifications

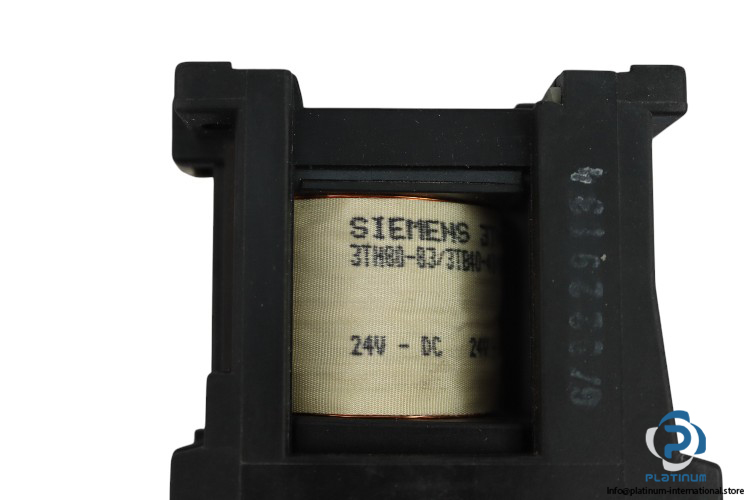

- Supply Voltage: 24 V DC
- Operational Current at AC-15:
- At 230 V rated value: 10 A
- At 400 V rated value: 6 A

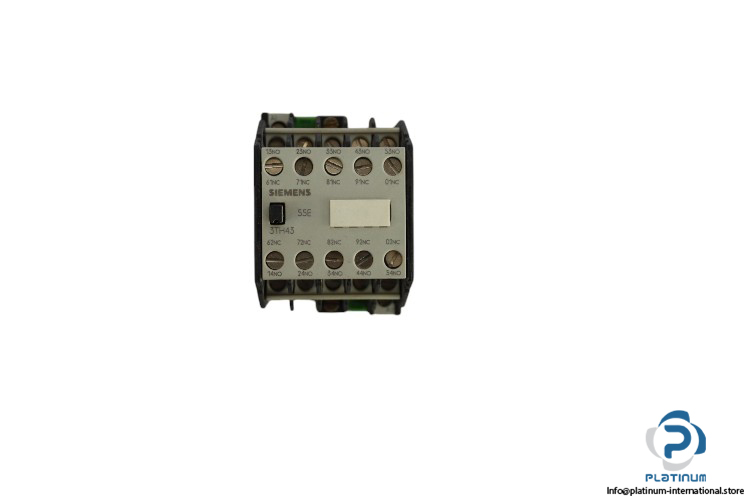

- Contact: 5 NO + 5 NC

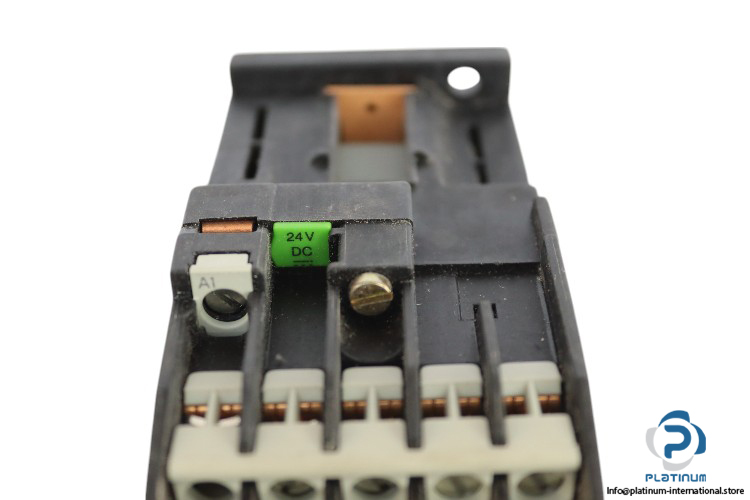

- Type of Electrical Connection for Auxiliary and Control Circuit: Screw-type terminals
- Ambient Temperature: -25 … 55 °C
- Dimensions (H x W x D): 78 x 55 x 135 mm
