Siemens 3TH4382-0B Control Relay

Manufacturer: Siemens
Type: Control Relay
MNR: 3TH43820B
Product type designation: 3TH43

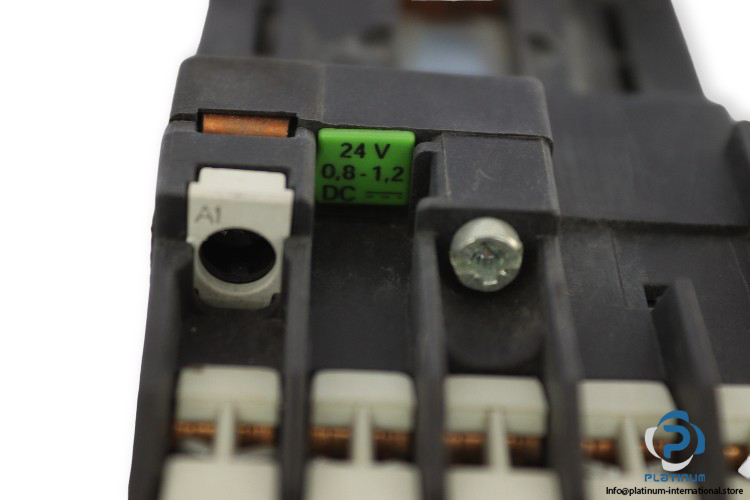

Control supply voltage: 24 V DC
Control current: 0.8 … 1.2 A
Identification No.: 82E
Number of Poles: 10
Operating current at AC-1 (Ie): 16 A
Operating current at AC-15 @400 V: 6 A
Operating power at AC-3 @400 V: 4 kW
Auxiliary Contact: 8 Normally open, 2 Normally closed
Type of electrical connection: screw-type terminals
Standard: IEC 60947, VDE 0660
Protection degree: IP00; IP20
Operating temperature: -25 … 55°C
Dimensions: 78 x 55 x 135 mm
