Siemens 3TX7004-1LB02 Output Coupling Link
Ausgangskupplungslink Siemens 3TX7 004-1LB02 ist Teil der SIRIUS-Familie. Arbeitet mit 24 V AC/DC bei 1 A DC und 3 A AC Nennstrom. Entwickelt für industrielle Signalschnittstellen und konform mit IEC- und GB-Normen.

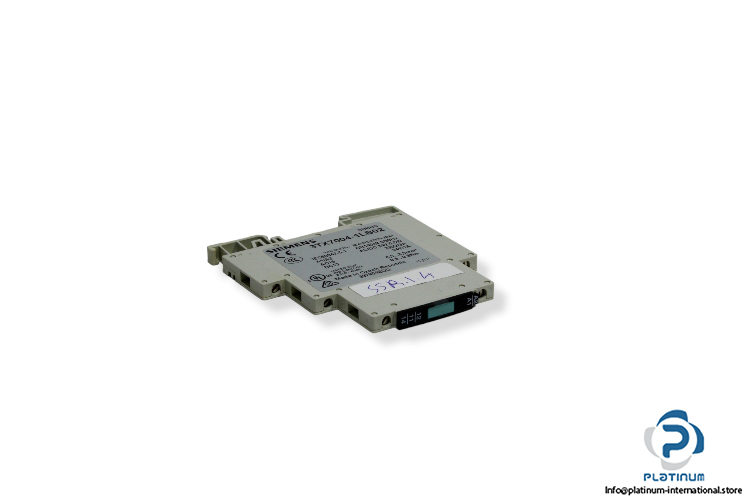

SIEMENS 3TX7 004-1LB02 OUTPUT COUPLING LINK
The Siemens 3TX7 004-1LB02 is a robust output coupling link from the SIRIUS family, engineered to meet IEC60947-5-1 and GB14048.5/50HZ standards. It ensures reliable signal transmission in control systems, offering compatibility with both AC and DC supplies. Ideal for industrial environments requiring secure, low-power interfacing.

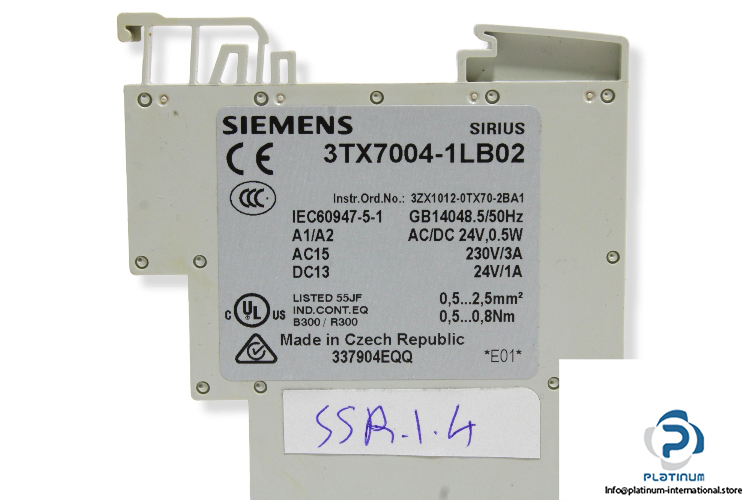

Manufacturer: SIEMENS
Type: Output Coupling Link
Model: 3TX7 004-1LB02
MNR: 3ZX1012-0TX70-2BA1
REF NO: 337904EQQ
Standard: IEC60947-5-1 / GB14048.5/50HZ
Family: SIRIUS
| Supply Voltage | 24 V AC/DC |
| Operational Current | 1 A (DC-13 at 24 V), 3 A (AC-15 at 230 V) |
| Power | 0.5 W |
| Conductor Cross-Section | 0.25 / 2.5 mm² |
| Tightening Torque (Screw-Terminals) | 0.5 / 0.8 N·m |
| Ambient Temperature | -25 / +60 °C |
| Protection Class | IP20 |
