Siemens 3UF7101-1AA00-0 Current Measuring Module
Strommessmodul Das Siemens 3UF7101-1AA00-0 SIRIUS Modul bietet eine einstellbare Stromüberwachung von 2,4 bis 25 A, unterstützt 110–690V AC und ist ideal für die Steuerungstafelintegration.

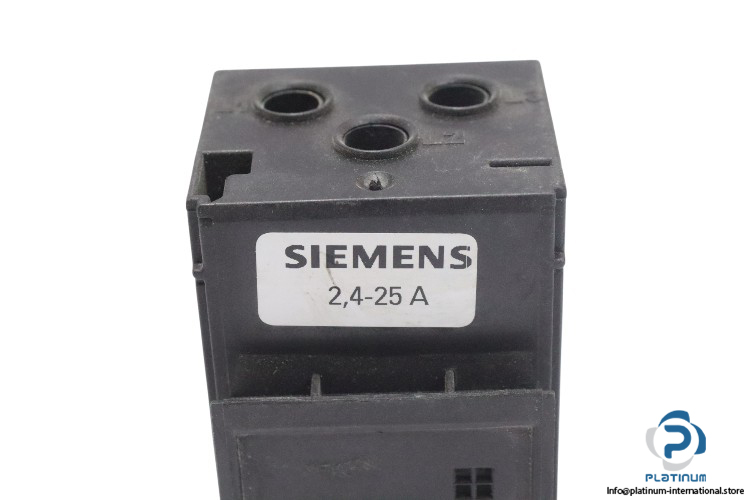

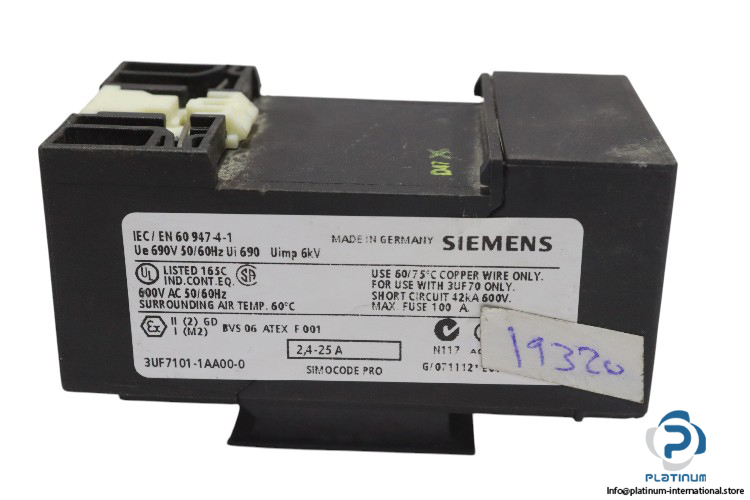

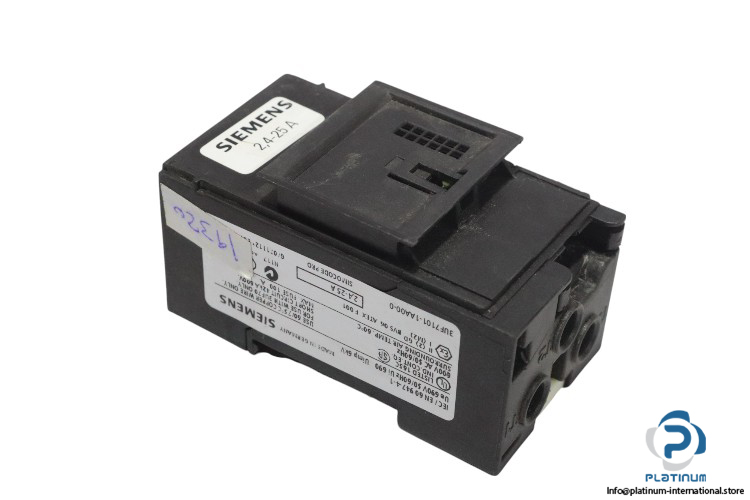

Siemens 3UF7101-1AA00-0 Current Measuring Module
The Siemens 3UF7101-1AA00-0 is a high-precision current measuring module from the SIRIUS product family, engineered for reliable monitoring of electrical currents in industrial systems. Supporting an adjustable response current range from 2.4 to 25 A and operating across a wide voltage range of 110 to 690 V AC, this 3-pole module ensures accurate performance and robust protection. Designed for screw or snap-on mounting, it features a compact housing and IP20 protection, ideal for control panels and switchgear environments.
- Manufacturer: Siemens
- Type: Current Measuring Module
- Model: 3UF7101-1AA00-0
- Product Brand Name: SIRIUS
Technical Specifications:
- Operating Voltage: 110 / 690 V AC
- Impulse Voltage Resistance: 6,000 V
- Insulation Voltage: 690 V
- Adjustable Response Current: 2.4 to 25 A
- Number of Poles: 3
- Operating Frequency: 50 / 60 Hz
- Mounting Type: Screw and Snap-On
- Protection Class: IP20
- Ambient Temperature: -25 / 60°C
- Dimensions (HxWxD): 84 x 45 x 45 mm
