Siemens 3VA1110-3GF46-0AA0 Molded Case Circuit Breaker
Neu
Auf Lager1 EinheitVersandbereit

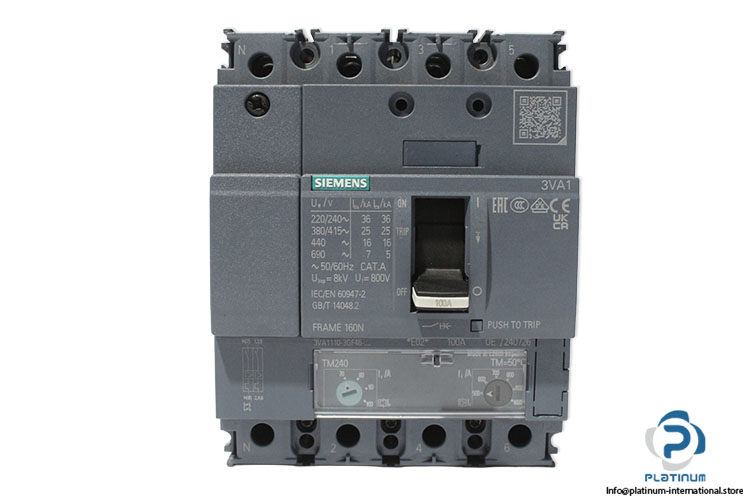

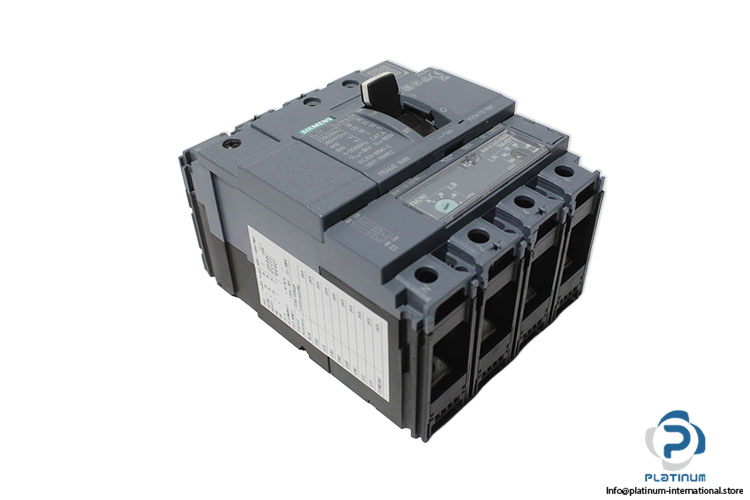

Molded Case Circuit Breaker The SIEMENS SENTRON 3VA1110-3GF46-0AA0 is a 4-pole molded case circuit breaker with an 80 A operational current, TM240 thermal-magnetic trip unit, and 160N frame. Designed for dependable line protection, it supports up to 690 VAC and 600 VDC applications while complying with IEC/EN 60947-2 standards.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Brand Name | SENTRON |
| Design Of the Overcurrent Release | TM240 |
| FRAME | 160N |
| Utilization Category | CAT.A |
| Insulation Voltage | 800V |
| Operating Voltage | 600VDC, 690VAC |
| Rated Impulse Withstand Voltage | 8kV |
| Power Loss | Max.25W |
| Operational Current | 80A |
| Number Of Poles | 4 |
| Frequency | 50/60 Hz |
| Number Of CO Contacts | 0 |
| short-circuit current breaking capacity (Icu) | (at 415V:25kA, 440V:16kA) |
| Switching Capacity Class of the Circuit Breaker | N |
| Field of Application | Line Protection |
| Arrangement Of Electrical Connectors | Front Terminal |
| Type Of Electrical Connection | box terminal on both sides |
| Ambient Temperature | -25 to 70 °C |
| Protection Degree | IP40 |
| Standard | IEC/EN 60947-2, GB/T 14048.2 |
| Height | 130 mm |
| Width | 101,6 mm |
| Depth | 70 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093377 |
| Weight | 1,09 |
