Siemens 6AV6 640-0BA11-0AX0 Operator Panel
Gebraucht
Auf Lager1 EinheitVersandbereit

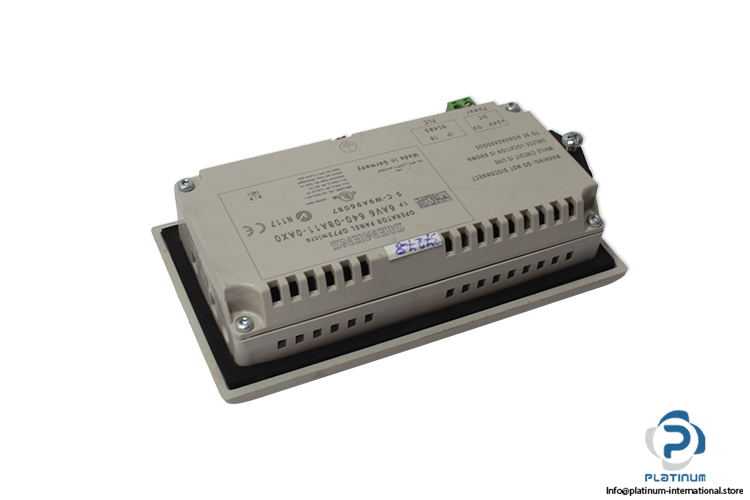

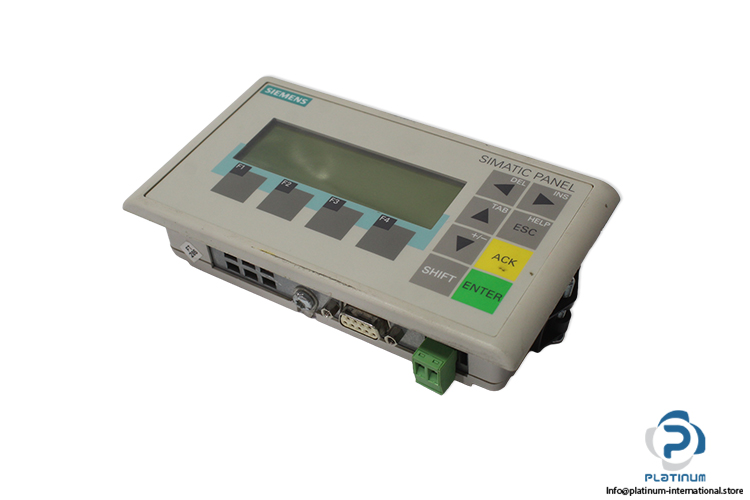

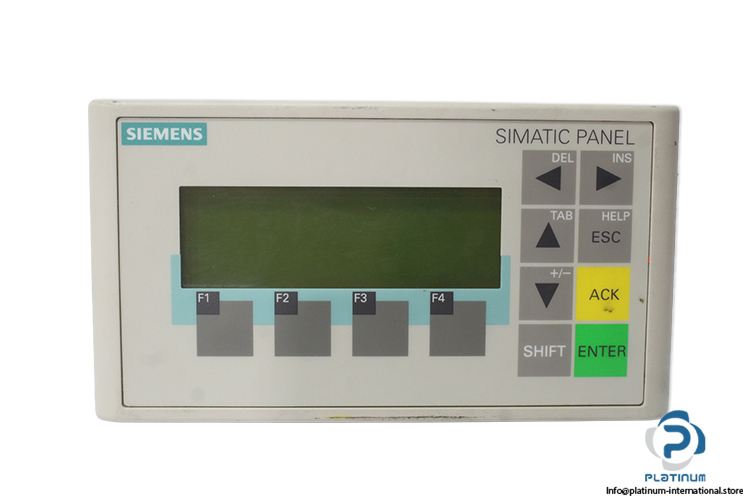

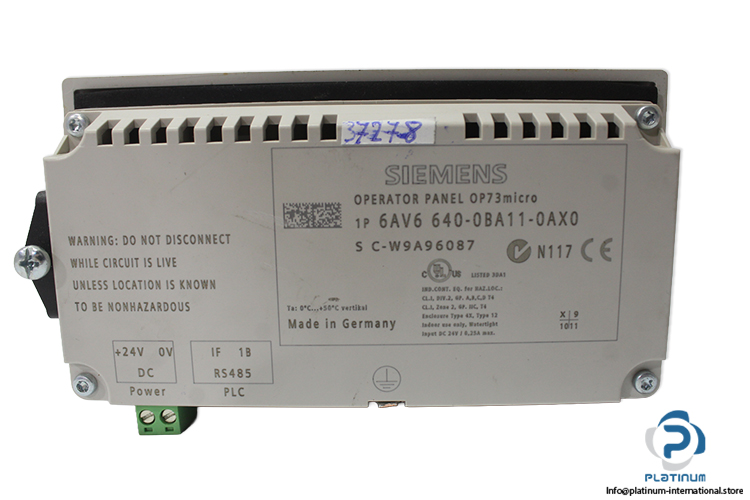

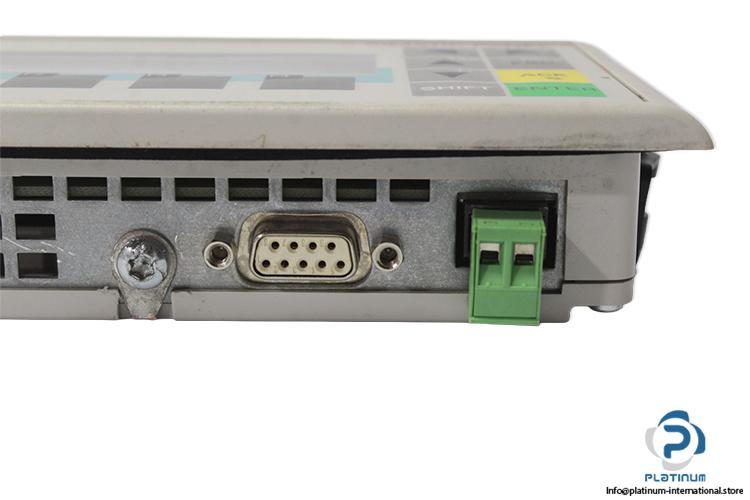

Operator Panel SIEMENS 6AV6 640-0BA11-0AX0 OP73micro operator panel with 3-inch STN display, membrane keyboard and RS485 interface for industrial automation.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Alternative Model | S C-W9A96087 |
| Range | OP73micro SIMATIC S7-200 3" LC DISPLAY |
| Display Design | STN |
| Screen Diagonal | 3 In |
| Resolution | Horizontal 160 / Vertical 48 Pixel |
| Control Elements | Membrane Keyboard |
| Function Keys | 4 |
| Supply Voltage | 24 V DC |
| Current Consumption | 0.1 A |
| Memory Type | Flash |
| Main Memory Capacity Max. | 128 kbyte |
| Interfaces / Bus Type | 1 x RS485 |
| Transmission Rate, Max. | 187.5 kbit/s |
| Clock | Software Clock, No Battery Backup |
| Mounting Position | Vertical |
| Permissible Angle of Inclination Without External Ventilation Max. | 80° |
| Protection Class | IP20 / IP65 |
| Ambient Temperature | 0 … 50 °C |
| Dimensions | 483 x 310 x 60 mm |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1103902 |
| Weight | 0,25 |
