Siemens 6AV6 643-0DD01-1AX1 Operator Panel
Neu
Auf Lager1 EinheitVersandbereit

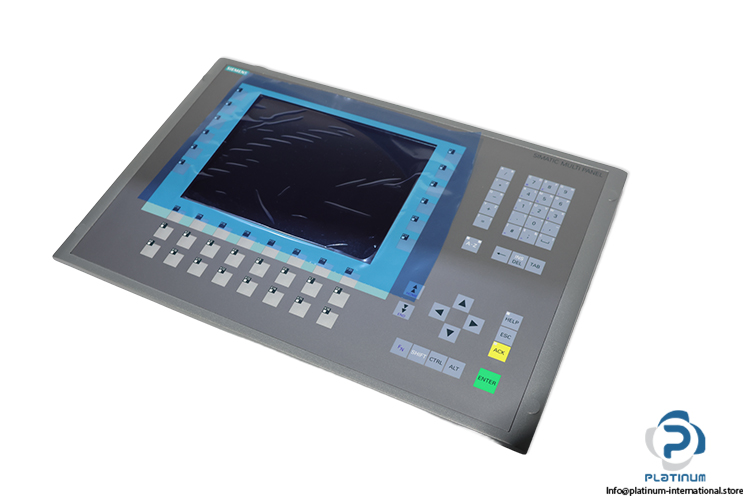

Operator Panel SIEMENS 6AV6 643-0DD01-1AX1 SIMATIC HMI MP277 operator panel with 10.4-inch TFT display, membrane keyboard and multiple industrial interfaces.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Range | SIMATIC HMI MULTI PANEL MP277 10" Key |

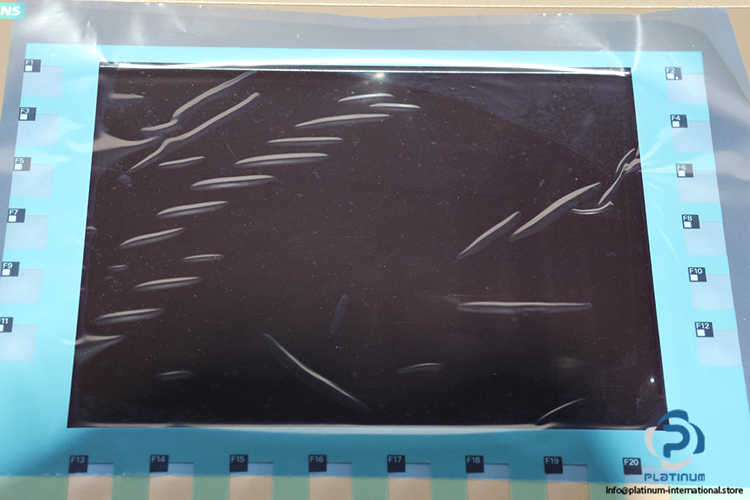

| Display Design | TFT |
| Screen Diagonal | 10.4 In |
| Resolution | Horizontal 640 / Vertical 480 Pixel |
| Control Elements | Membrane Keyboard |
| Function Keys | (Function Keys No. 36) — (Function Keys with LEDs No. 28) |
| Memory Type | Flash / RAM |
| Main Memory Capacity Max. | 64 Mbyte |

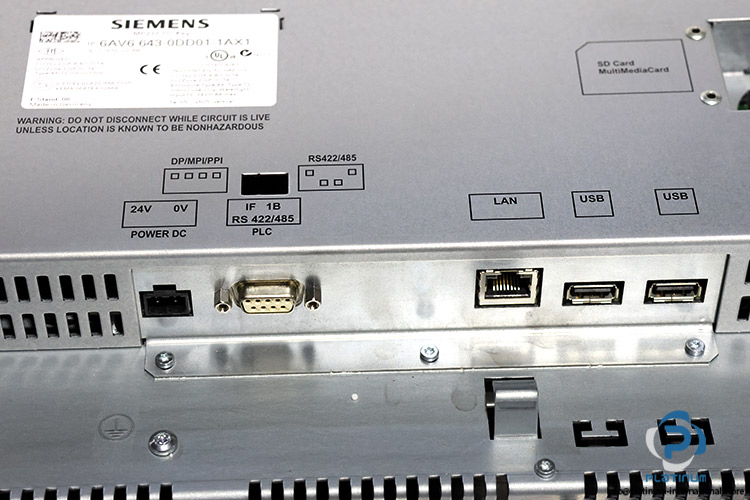

| Interfaces / Bus Type | 1 x RS422, 1 x RS485, 1 x Ethernet (RJ45) |
| Industrial Ethernet Interface | 1 x Ethernet (RJ45) |
| USB Port | 2 x USB |
| Multimedia Card/SD Card Slot | 1 x Multimedia Card Slot, up to 128 MB |
| Software Configuration | WinCC Flexible 2005 Standard SP1 |
| Protection Class | IP20 / IP65 |
| Ambient Temperature | 0 … 50 °C |
| Dimensions | 483 x 310 x 60 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103845 |
| Weight | 6,29 |
