Siemens 6ED1 055-1MB00-0BA1 Expansion Module
Neu
Auf Lager1 EinheitVersandbereit
Erweiterungsmodul Siemens LOGO! DM8 12/24R mit 4 digitalen Eingängen und 4 Relaisausgängen, unterstützt 12/24 VDC Betrieb. Kompakt, zuverlässig und für industrielle Automatisierungsanwendungen gebaut.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

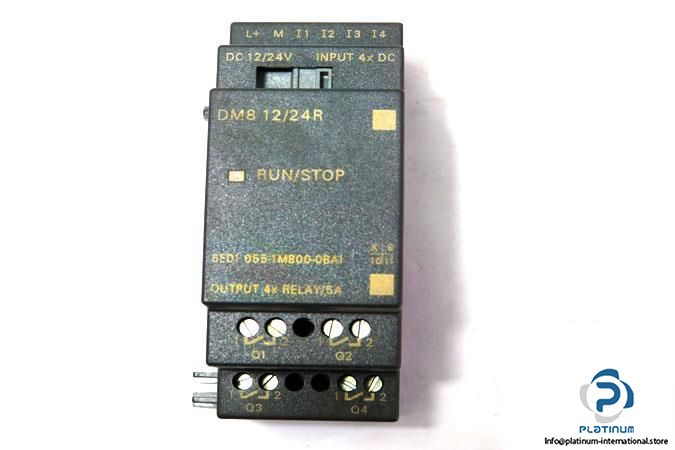

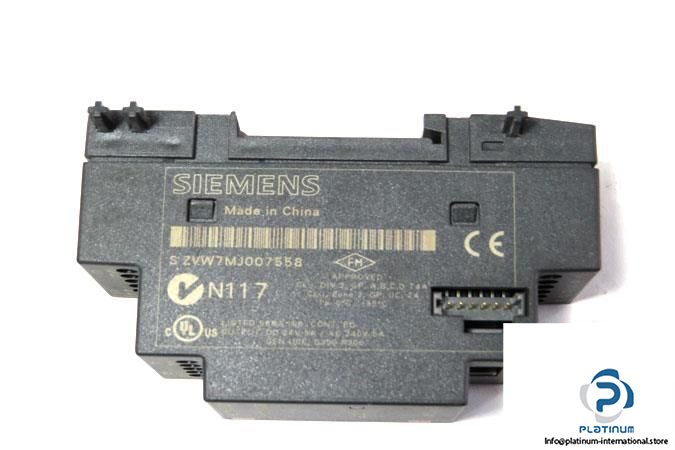

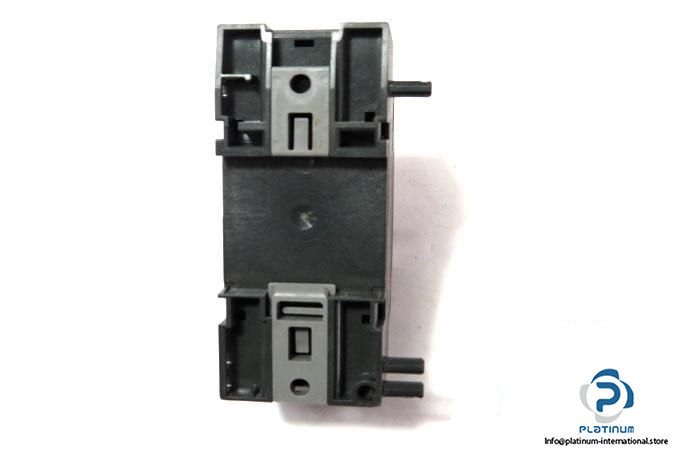

SIEMENS LOGO! DM8 12/24R EXPANSION MODULE
The Siemens LOGO! DM8 12/24R is a versatile expansion module designed to enhance the functionality of LOGO! logic controllers. Featuring four digital inputs and four relay outputs, it provides reliable control for a variety of industrial automation tasks. Built to handle demanding environments, this module offers robust electrical performance, compact design, and easy integration.
Manufacturer: Siemens
Family: LOGO!
Type: Expansion Module
Model: DM8 12/24R
MRN: 6ED1055-1MB00-0BA1
SN: S ZVW7MJ007558
| No. of Digital Inputs | 4 |
| Rated Supply Voltage | 12 / 24 VDC |
| Permissible Range | 12.8 / 28.8 V DC |
| Input Signal "0" | <5 V DC, 0.05 mA |
| Input Signal "1" | >8.5 V, 1.5 mA |
| Input Delays | 1.5 ms |
| No. of Digital Outputs | 4 (Relays) |
| Switching Capacity (Lamp Load) | 1 kW |
| Output Current | 5 A |
| Mechanical Switching Frequency | 10 Hz |
| Ambient Temperature | 0 / 55°C |
| Dimensions (W x H x D) | 36 x 90 x 55 mm |
