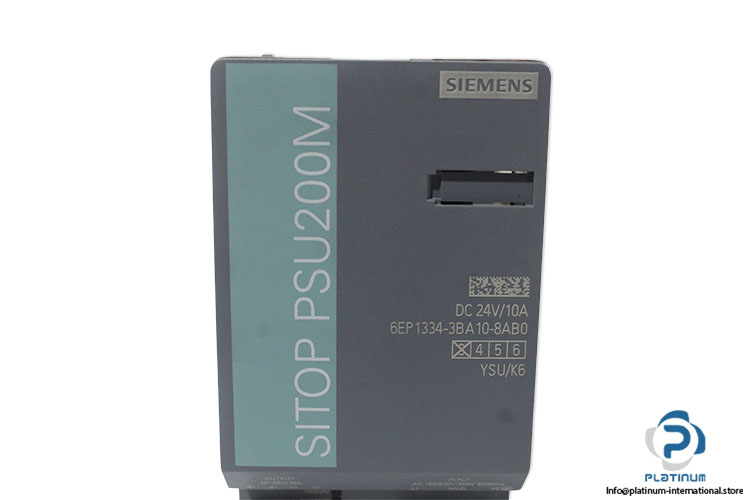

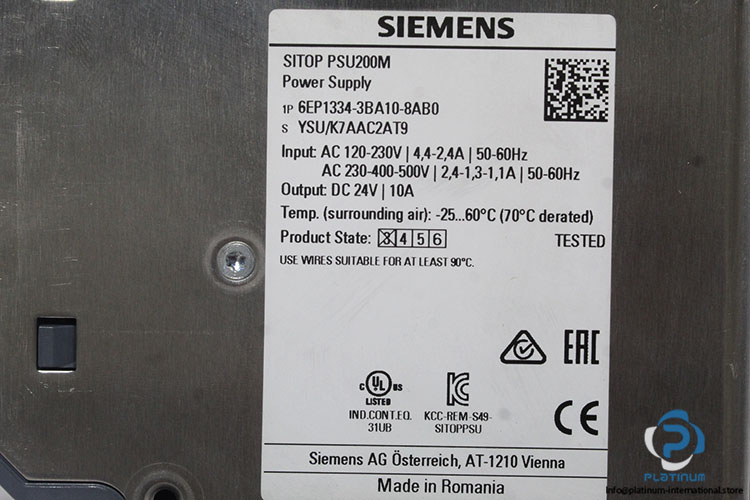

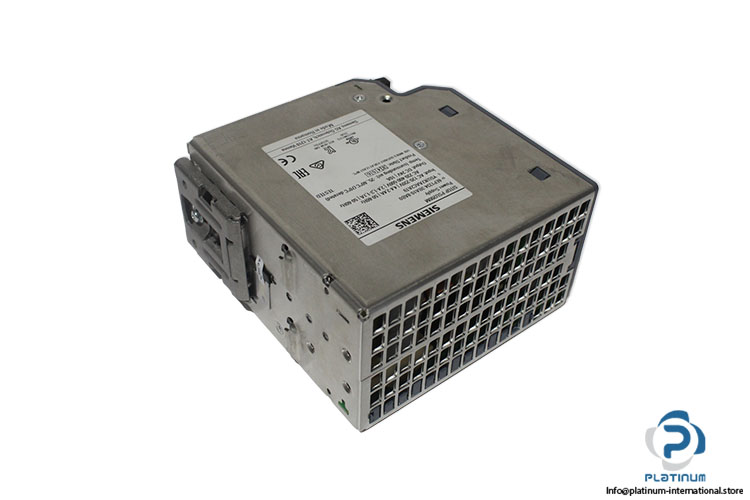

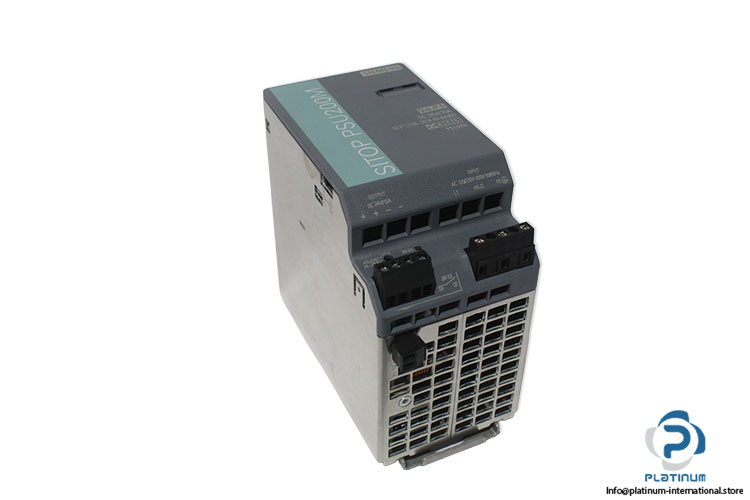

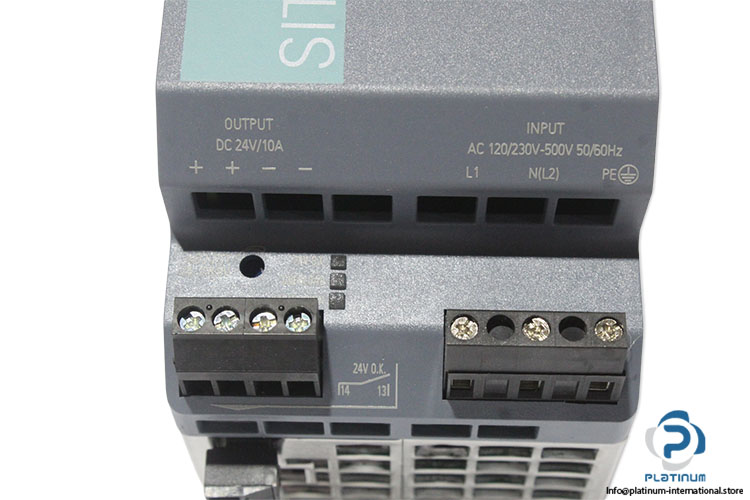

Siemens 6EP1334-3BA10-8AB0 Power Supply
Neu
Auf Lager1 EinheitVersandbereit
Power Supply SIEMENS SITOP PSU200M industrial power supply with selectable 120-230/230-500 V AC input and 24 V DC output, designed for automation and control applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Serial NO. | YSU/K7AAC2AT9 |
| Family | SITOP PSU200M |
| Type Of the Power Supply Network | 1-phase and 2-phase AC |
| Supply Voltage at AC | Set by means of selector switch on the device |
| Supply Voltage | 120-230/230-500 V |
| Input Voltage 1 At AC | 120 ... 230 V |
| Input Voltage 2 At AC | 230 ... 500 V |
| Buffering Time for Rated Value of The Output Current in the Event of Power Failure Minimum | 25 ms |
| Operating Condition of the Mains Buffering | at Vin = 120/230 V, typ. 150 ms at Vin = 400 V |
| Line Frequency | 50/60 Hz |
| Input Current | ( at Rated Input Voltage 120 V: 4,4 A), (At Rated Input Voltage 230 V: 2,4 A), (at rated input voltage 500 V: 1.1 A) |
| Current Limitation of Inrush Current At 25 °C Maximum | 35 A |
| Fuse Protection Type | T 6.3 A (not accessible) |
| Output voltage at DC rated value | 24 V |
| Dimensions | 55 × 125 × 125 mm |
| Ambient Temperature | -25 ... 70 C |
| Condition | New |
| Stock key | CON003 |
| SKU | 1093767 |
| Weight | 0,97 |
