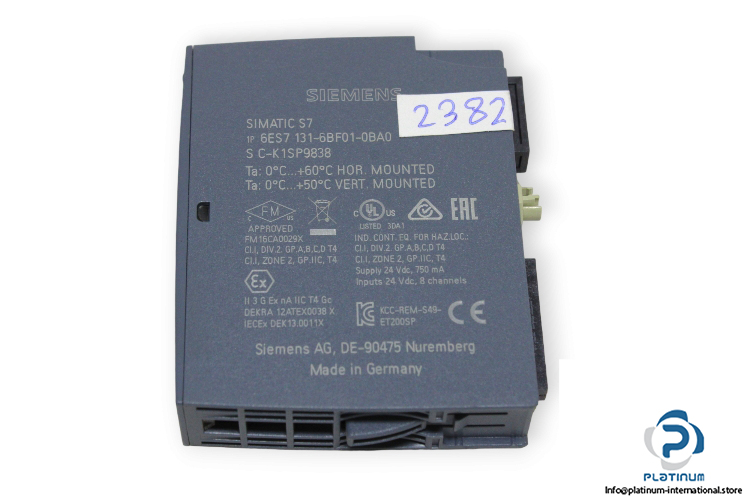

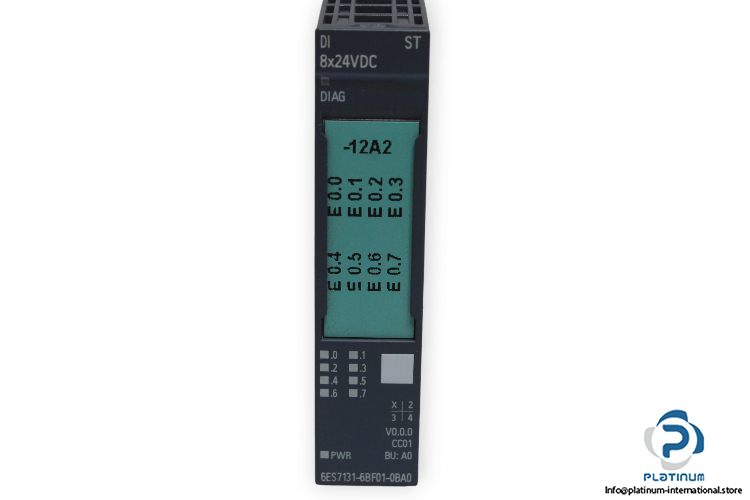

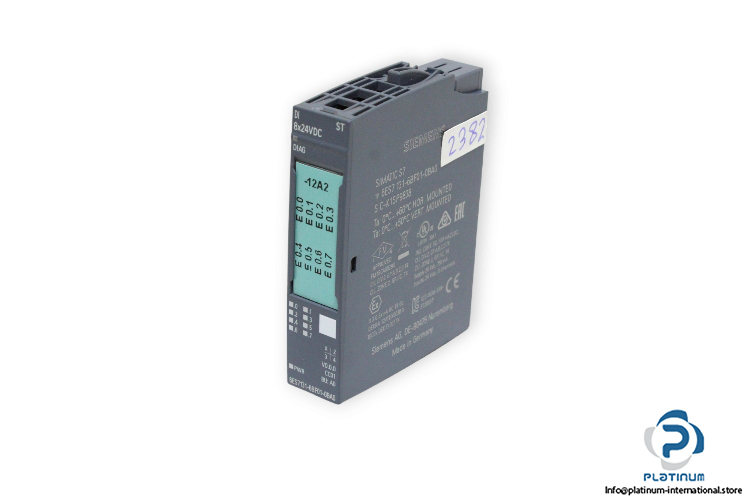

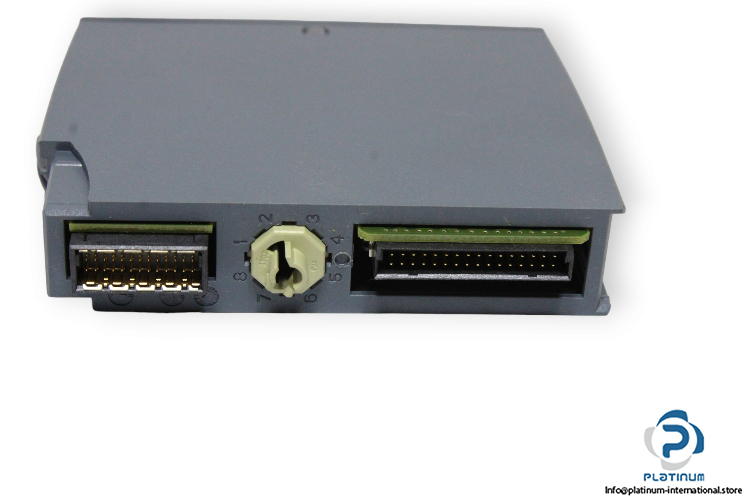

Siemens 6ES7 131-6BF01-0BA0 Digital Input Module

Siemens 6ES7 131-6BF01-0BA0 Digital Input Module “ SIMATIC S7

The Siemens 6ES7 131-6BF01-0BA0 is a high-performance digital input module from the SIMATIC S7 family, designed for industrial automation applications requiring reliable digital signal processing. With 8 digital inputs (DI) and 8 outputs, this module ensures accurate data acquisition and seamless integration into PLC-based control systems.

Key Technical Features:

• Manufacturer: Siemens
• Type: Digital Input Module
• Model Number (MNR): 6ES7 131-6BF01-0BA0
• Family: SIMATIC S7
• Power Supply: 24 V DC, 750 mA
• Input Voltage: 24 V DC
• Number of Digital Inputs (DI): 8
• Number of Outputs: 8
• Cable Length: Shielded max. 1000m, Unshielded max. 600m
• Operating Temperature: 0 to +60°C (horizontal installation), 0 to +50°C (vertical installation)
• Type of Protection: Explosion Protection EX
• Dimensions: 15 x 73 x 58 mm

Built for industrial automation, this digital input module provides superior performance, explosion protection, and seamless integration with Siemens SIMATIC S7 PLC systems.
