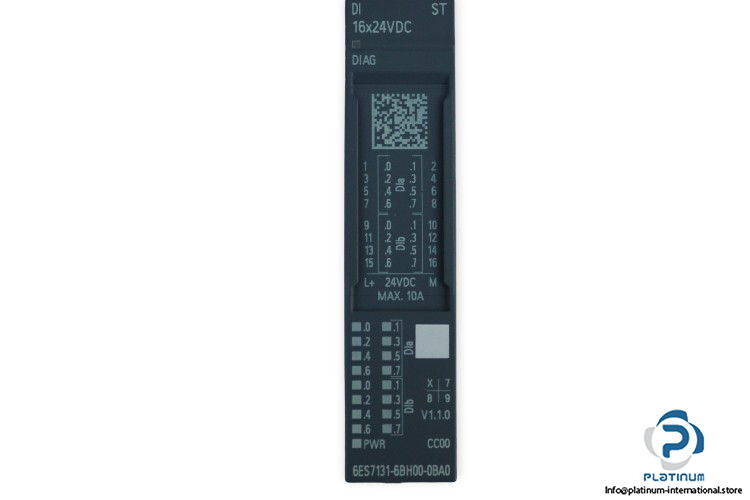

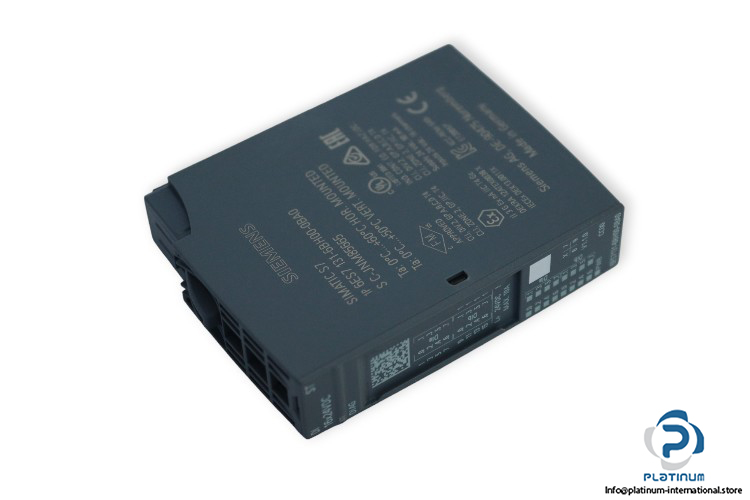

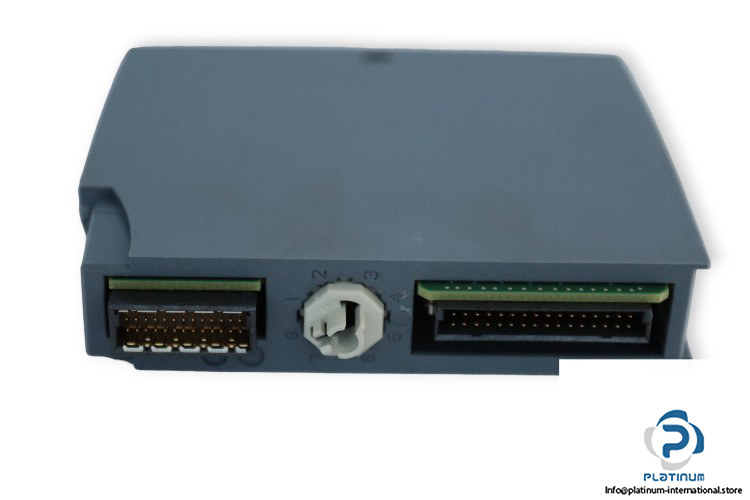

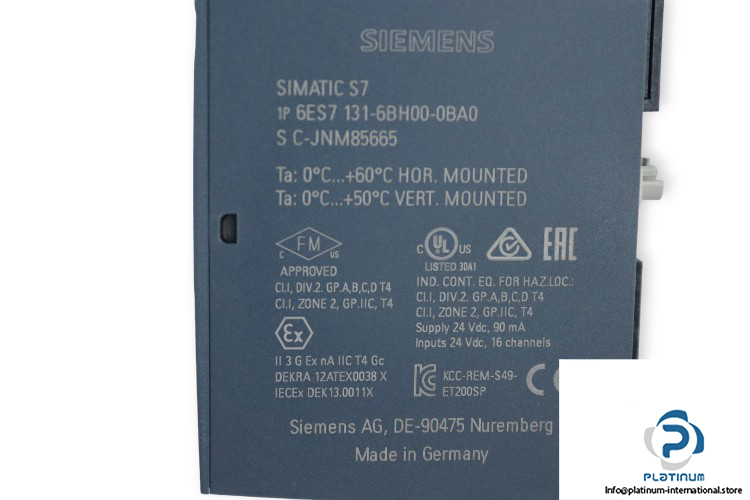

Siemens 6ES7 131-6BH00-0BA0 Digital Input Module
Manufacturer: Siemens
Type: Digital Input Module
Model: 6ES7 131-6BH00-0BA0/ 6ES7131-6BH00-0BA0
Part No.: SC-JNM85665
Product type designation: ET 200SP, DI 16x24VDC ST, PU 1
Usable Base Units: BU type A0
Supply Voltage: 24 V DC
Current Consumption: 90 mA
Power Loss: 1.7 W
No. of Inputs: 16
Input Voltage: 24 V DC
Input Current: 10 A
Function Class: ST
Protection Type: Explosion Proof
Operating Temperature: 0 … 60 °C (Horizontal Installation)/ 0 … 50 °C (Vertical Installation)
Dimension: 15 mm
