Siemens 6ES7 142-4BD00-0AA0 Electronic Module
ELEKTRONISCHES MODUL Siemens 6ES7 142-4BD00-0AA0 Ausgangsmodul für ET 200 PRO mit 4 DO bei 24 V DC und integrierter Diagnose. Kompakt und effizient für verteilte I/O-Systeme.

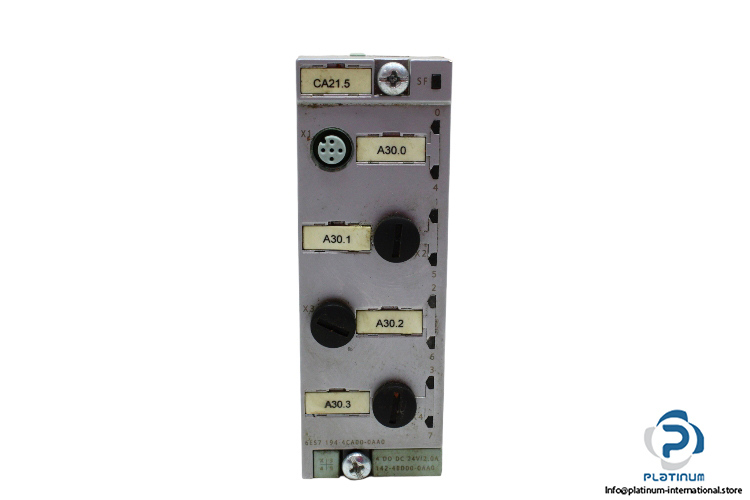

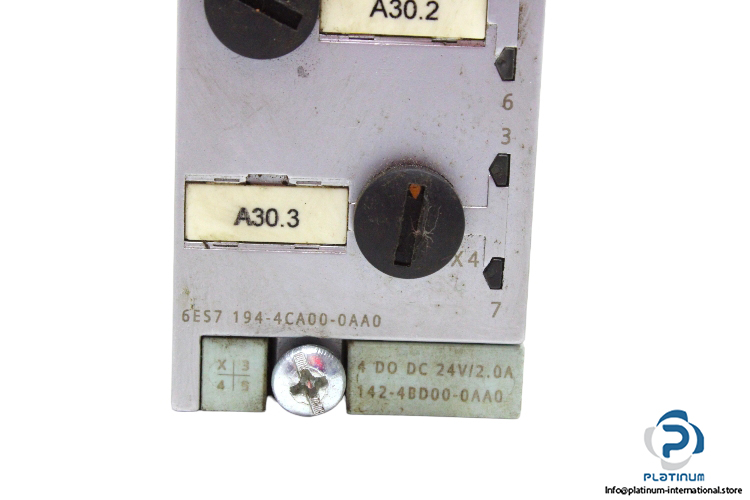

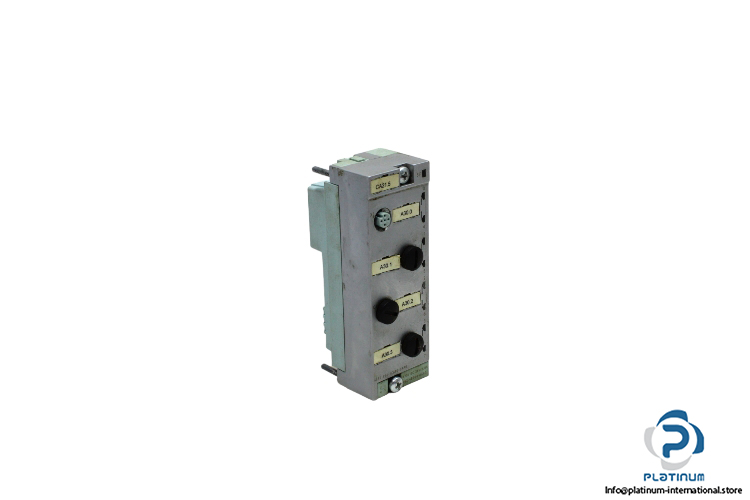

SIEMENS 6ES7 142-4BD00-0AA0 ELECTRONIC MODULE
The Siemens 6ES7 142-4BD00-0AA0 is a high-performance electronic output module from the ET 200 PRO family. Designed for industrial automation, it supports 4 digital outputs at 24 V DC and ensures reliable signal control with integrated module diagnostics. Ideal for distributed I/O systems, it is engineered with robust isolation and compact form factor.
Manufacturer: Siemens
Type: Electronic Module
Model: 6ES7 142-4BD00-0AA0
Family: ET 200 PRO
| Use | For ET 200 PRO, 4 DO 24 V DC, 2.0A; Module diagnostics; incl. bus module; Connection module IO (6ES7 194-4CA00-0AA0) ordered separately |
| Number of Digital Outputs (DO) | 4 |
| Supply Voltage | 24 V DC |
| Input Current | 20 mA |
| Output Current | 2 A for signal 1, 0.5 mA for signal 0 |
| Power Loss | 2 W |
| Isolation Tested With | 707 V DC |
| Dimensions | 45 x 130 x 35 mm |
