Siemens 6ES7 158-0AD01-0XA0 Coupling Module
DP/DP-Koppler SIEMENS SIMATIC DP/DP ermöglicht nahtlose Kommunikation zwischen zwei PROFIBUS DP-Netzwerken mit redundanter Stromversorgung. Zuverlässig und platzsparend, arbeitet mit 24 V Versorgungsspannung und IP20-Schutz für industrielle Automatisierungssysteme.

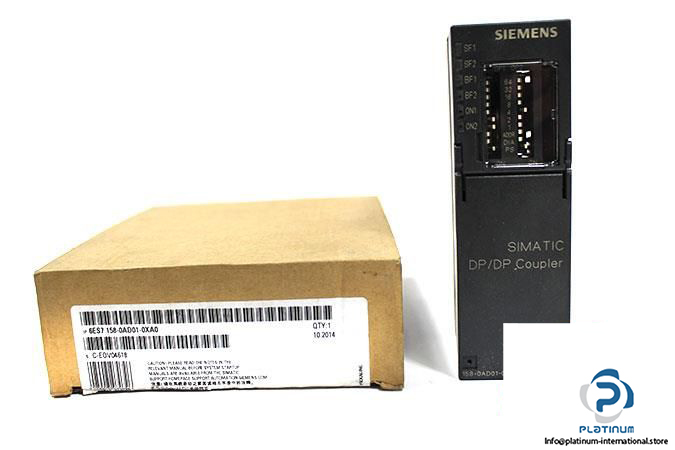

SIEMENS SIMATIC DP/DP COUPLER “ 6ES7158-0AD01-0XA0
The Siemens SIMATIC DP/DP Coupler is a compact and efficient solution for connecting two PROFIBUS DP networks, offering redundant current infeed and high-performance communication within automation systems. Its robust design and industrial-grade protection make it ideal for demanding applications.
Manufacturer: SIEMENS
Family: SIMATIC DP/PA
Type: DP/DP Coupler
MRN: 6ES7158-0AD01-0XA0

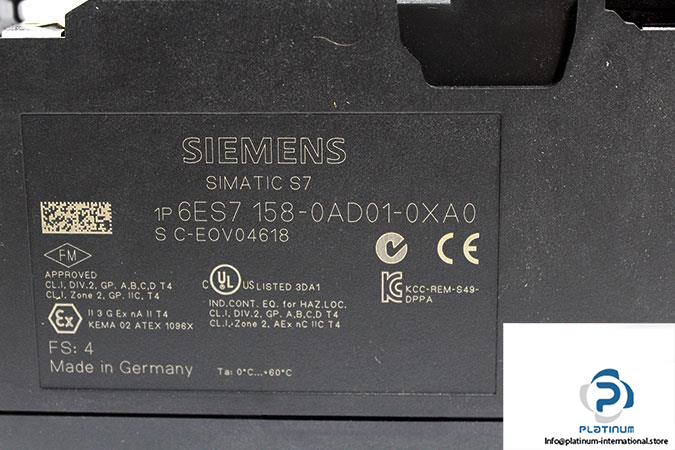

SN: C-EOV04618
Uses: For connecting of two PROFIBUS DP networks with redundant current infeed
| Supply Voltage | 24 V |
| Input Current | 90 mA |
| Power Loss | 2 W |
| Dimensions | 40 x 127 x 117 mm |
| Operating Temperature | 0 / 60 °C |
| Protection | IP20 |
