Siemens 6ES7 357-4AH01-0AE0 Multi-Axis Module
1 150,00$
MULTI-AXIS MODULE SIEMENS S7-357-2 Multi-Achsen CPU-Modul mit 18 digitalen Eingängen, 8 digitalen Ausgängen, 8 analogen Eingängen und 4 Zählern. Unterstützt Inkremental- und Absolutgeber, arbeitet mit 24 V DC, Schutzart IP20 und 750 Kbyte Arbeitsspeicher.

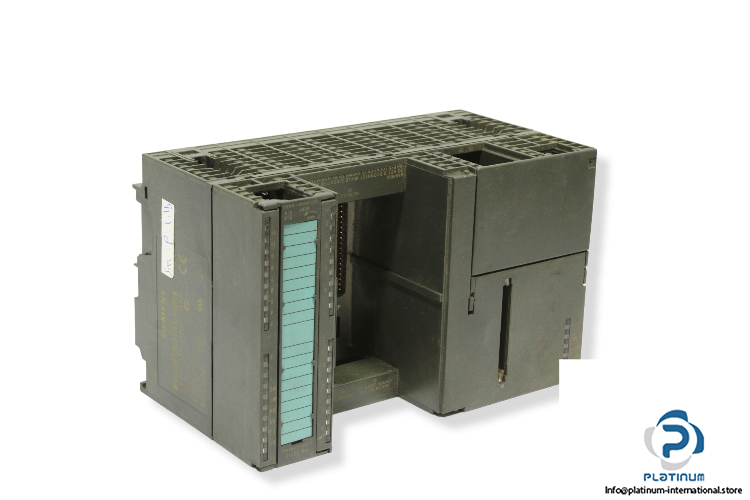

SIEMENS S7-357-2 MULTI-AXIS MODULE
The SIEMENS S7-357-2 Multi-Axis Module is a high-performance automation controller from the SIMATIC family, engineered for precision control in complex industrial motion systems. This CPU module is equipped with multiple digital and analog I/Os, advanced counter features, and encoder connectivity, making it ideal for multi-axis applications in modern automation environments.
Manufacturer: SIEMENS
Type: Multi-Axis Module
Family: SIMATIC S7-357-2
Model: S7-357-2 CPU

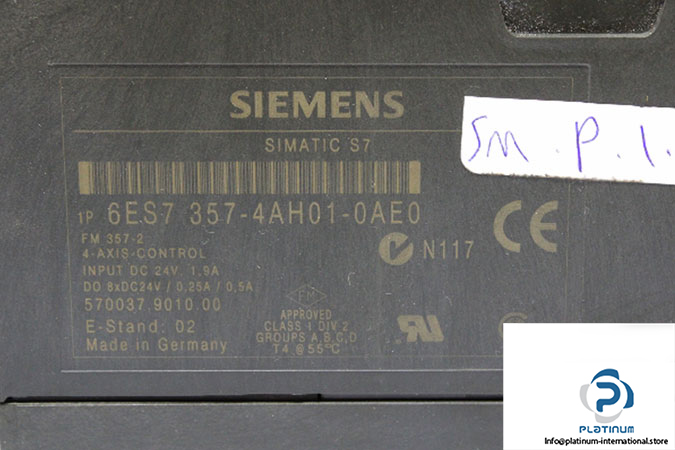

MRN: 6ES7357-4AH01-0AE0
Reference No.: 570037.9010.00 / FM 357-2
| Supply Voltage | 24 V DC (20.4 / 28.8 V) |
| Input Current | 1.9 A |
| No. of Digital Inputs (DI) | 18 |
| No. of Digital Outputs (DO) | 8 |
| No. of Analog Outputs (AO) | 4 + 1 Pt 100 |
| No. of Analog Inputs (AI) | 8 |
| Number of Counters | 4 |
| Current Consumption | 100 mA |
| Working Memory | 750 Kbyte |
| Connectable Encoders | Incremental, Absolute encoder |
| Power Loss | 15 W |
| Degree of Protection | IP20 |
| Dimension | 200 x 125 x 118 mm |
