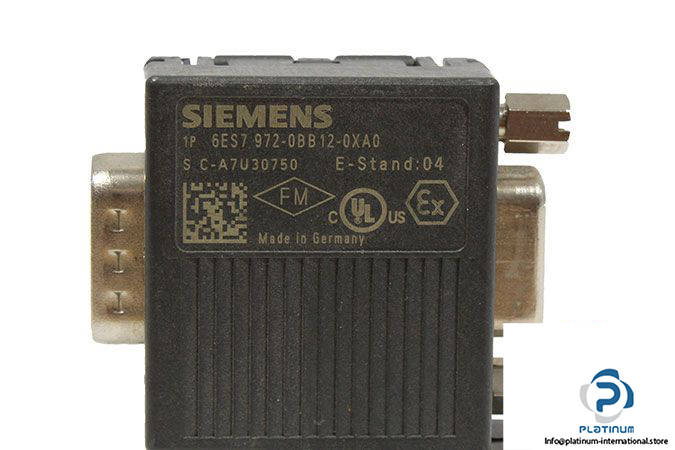

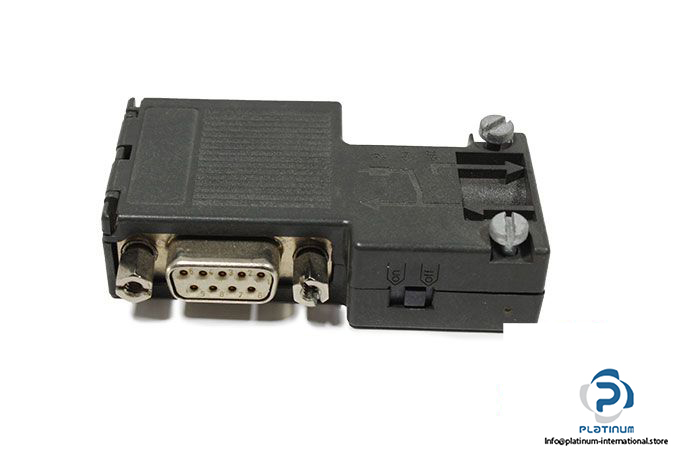

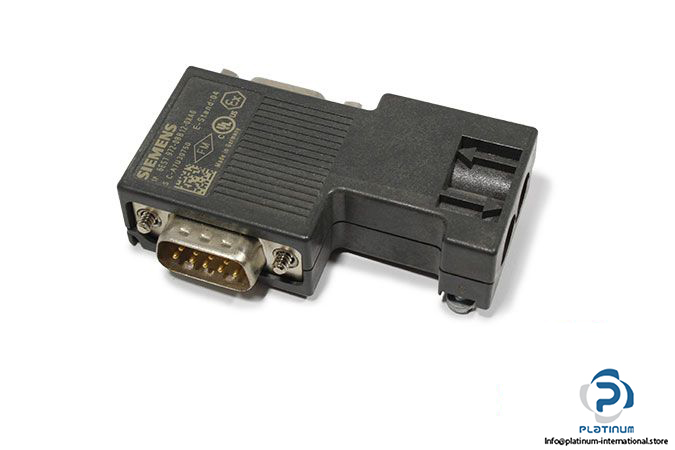

Siemens 6ES7972-0BB12-0XA0 Connection Plug

Manufacturer: SIEMENS

Type: Connection Plug

Model: 6ES7972-0BB12-0XA0

MRN: 6ES7 972-0BB12-0XA0

Family: SIMATIC DP

Used for: For connecting PROFIBUS stations to the PROFIBUS bus cable

Design of Terminating Resistor: Resistor combination integrated and connectable via slide switch

Material / of the Enclosure: plastic

Locking Mechanism Design: Screwed joint

Number of Electrical Connections for PROFIBUS Cables/Network Components: 2 / 1

Type of Electrical Connection for PROFIBUS Cables/Network Components: Screw / 9-pin sub D connector

Ambient Temperature: -40 … +70 °C

Transfer Rate / With PROFIBUS DP: 9.6 kbit/s … 12 Mbit/s

Type of Cable Outlet: 90 degree cable outlet

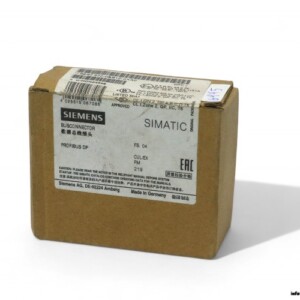

Packaging Dimension: 6.8 x 7.8 x 3 mm
