Siemens 6GK1905-0CA00 Connector
ECOFAST Hanbrid Industrie-Stecker von Siemens mit Harting Han Brid 4-m Einsatz, ausgelegt für Daten- und Stromübertragung durch ECOFAST Hybridkabel in SIMATIC NET Automatisierungsnetzwerken.

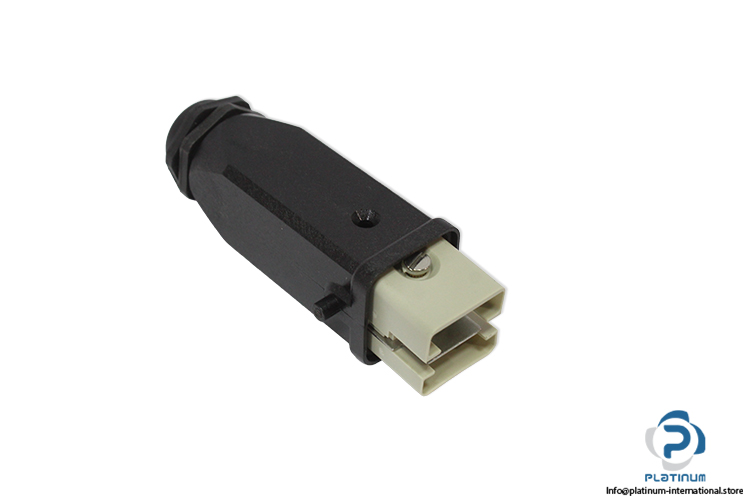

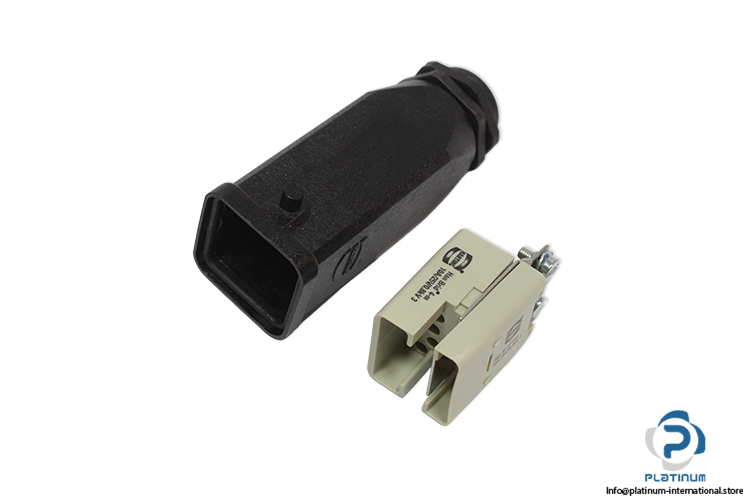

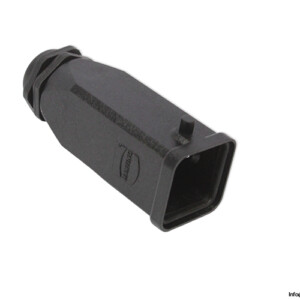

Siemens 6GK1905-0CA00 ECOFAST Hanbrid Connector
The Siemens 6GK1905-0CA00 ECOFAST Hanbrid Connector from the SIMATIC NET family is designed for reliable industrial communication and power transmission in automation systems. This connector integrates data and power connectivity in a compact hybrid interface, making it suitable for ECOFAST hybrid cable systems used in industrial networking and machine connectivity.
Manufacturer: Siemens
Type: ECOFAST Hanbrid Connector With Pin Insert
MNR: 6GK1 905-0CA00
Family: SIMATIC NET
Code: A5E00274302A

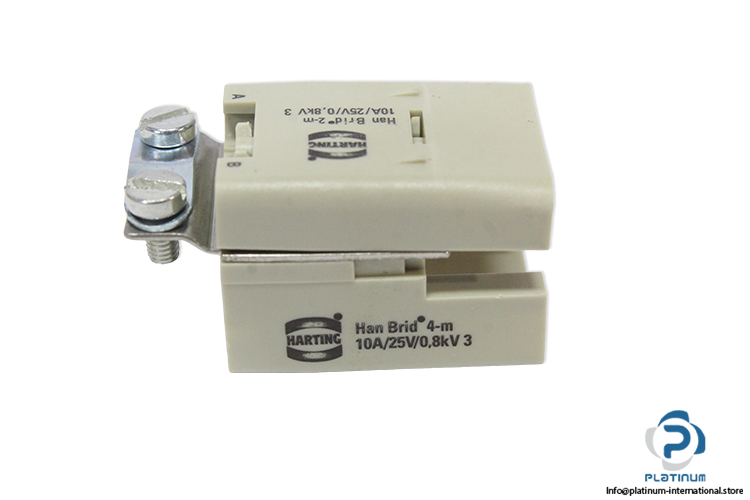

Insert Type: Harting Han Brid 4-m
| Combatable Connector | 6GK1905-0CA00, -0CB00 |
| Suitability For Use | For Connection To ECOFAST Hybrid Cables, Transmission Of Data And Power |
| Rated Current | 10 A |
| Rated Voltage | 25 V |
| Rated Impulse Voltage | 0.8 kV |
| Terminal Type | Screw Terminal |
| Shield Connection | Shield Screw Connection |
| Transfer Rate / With PROFIBUS | 9.6 kbit/s ... 12 Mbit/s |
| Suitable Cable Type | SIMATIC NET ECOFAST Hybrid Cable 180 Degree Cable Outlet (6XV1830-7AH10, -6XV1860-2P) |
| Material / Of The Enclosure | Plastic |
| Ambient Temperature During Operation | -20 To +70 °C |
| Protection Class | IP65/67 |
| Dimensions | 71.5 x 27 x 27 mm |
