Siemens 6GK7 243-2AX01-0XA0 Communications Processor
Kommunikationsprozessor Der Siemens SIMATIC NET 6GK7243-2AX01-0XA0 Kommunikationsprozessor verbindet eine Siemens S7-22X mit AS-Interface und unterstützt bis zu 62 Slaves, 248 Eingänge, 186 Ausgänge und 24 V Versorgungsspannung.

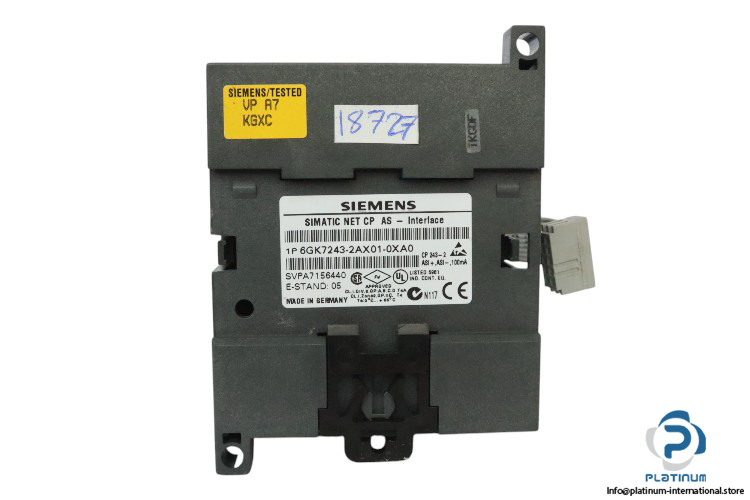

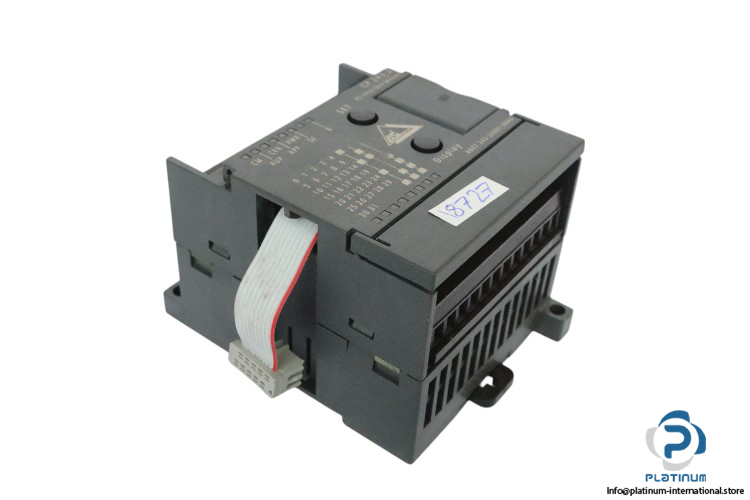

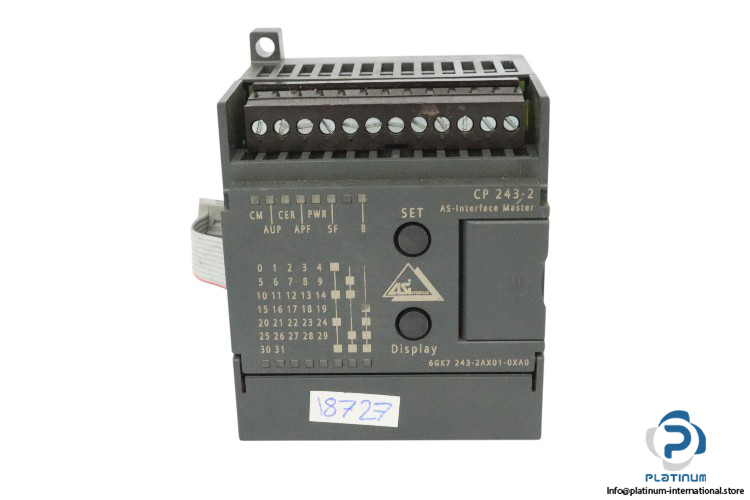

Siemens SIMATIC NET 6GK7243-2AX01-0XA0 Communications Processor
The Siemens SIMATIC NET 6GK7243-2AX01-0XA0 Communications Processor is designed for connecting a Siemens S7-22X PLC to an AS-Interface network. This AS-Interface Master module facilitates seamless communication between your automation systems, providing robust support for up to 62 AS-i slaves and allowing high-speed data transfer in industrial environments.
Manufacturer: Siemens
Type: Communications Processor
Model: SVPA7156440
Family: SIMATIC NET
Product Designation: AS-Interface Master
Product Type Designation: CP 243-2
Consumed Current:
The Siemens SIMATIC NET 6GK7243-2AX01-0XA0 Communications Processor ensures effective connection and control of your AS-Interface network, providing an efficient solution for automation communication in industrial settings.
| Used For | Connection of a Siemens S7-22X to an AS-Interface with Master Profile M0E/M1E ACC |
| Type of Supply Voltage | Via backplane bus |
| Supply Voltage | 24 V |
| Power Loss | 3.7 W |
| Insulation Voltage Rated Value | 500 V |
| From profile conductors | 100 mA |
| From backplane bus maximum | 220 mA |
| No. of Units per CPU Max | 2 |
| No. of Interfaces | 1 |
| Type of Data Transmission | S7-200 backplane bus |
| No. of Inputs for AS Interface Max | 248 |
| No. of Outputs for AS Interface Max | 186 |
| No. of AS-i Slaves per AS-Interface Max | 62 |
| Type of Electrical Connection | Screw-type connection |
| Ambient Temperature | 0 to 45 °C |
| Protection Class | IP20 |
| Dimensions | 71 x 80 x 62 mm |
