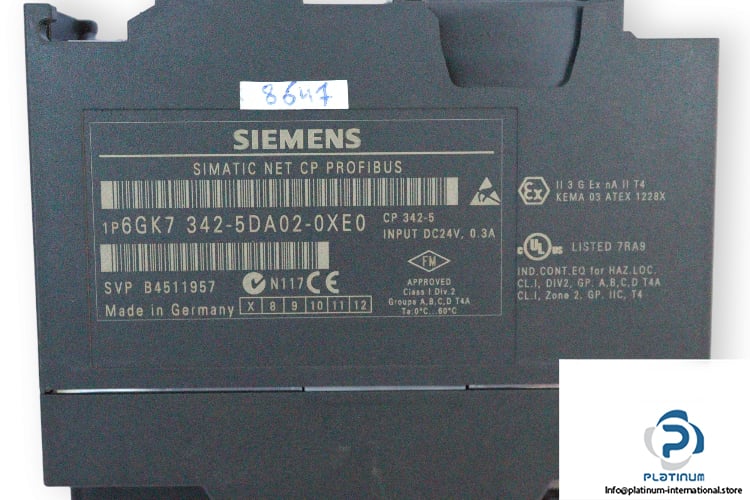

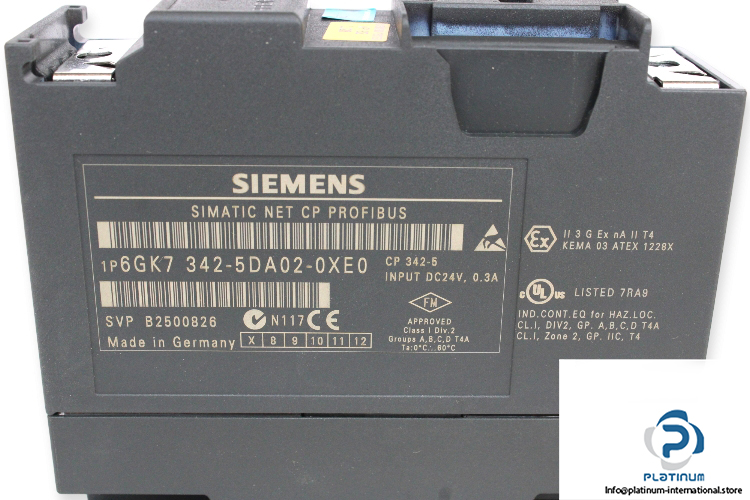

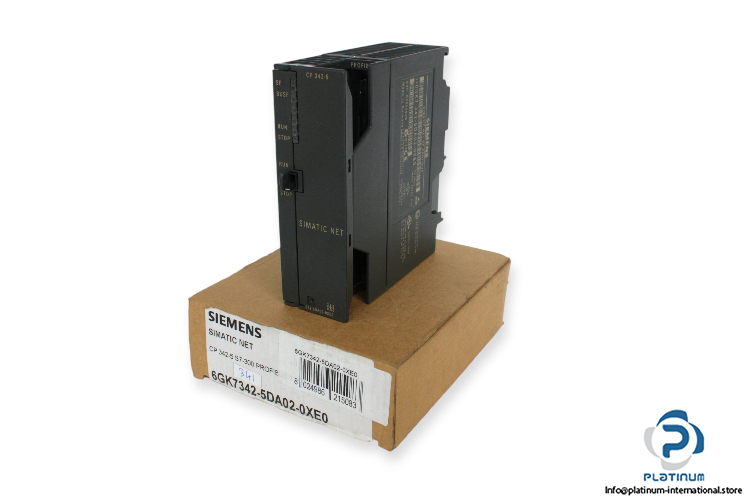

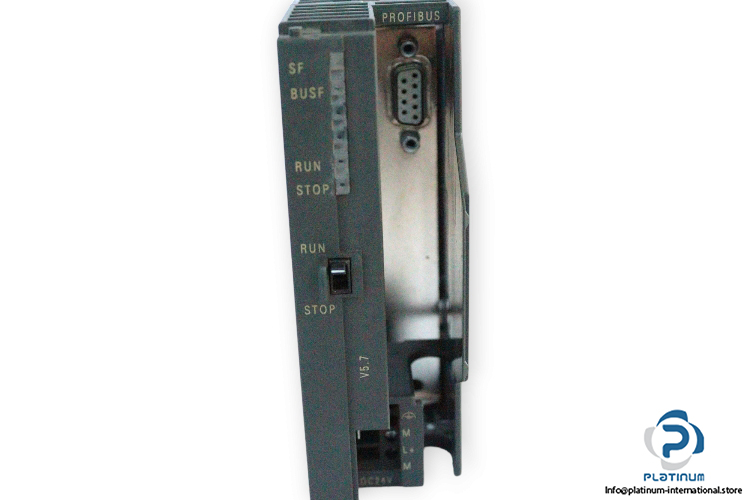

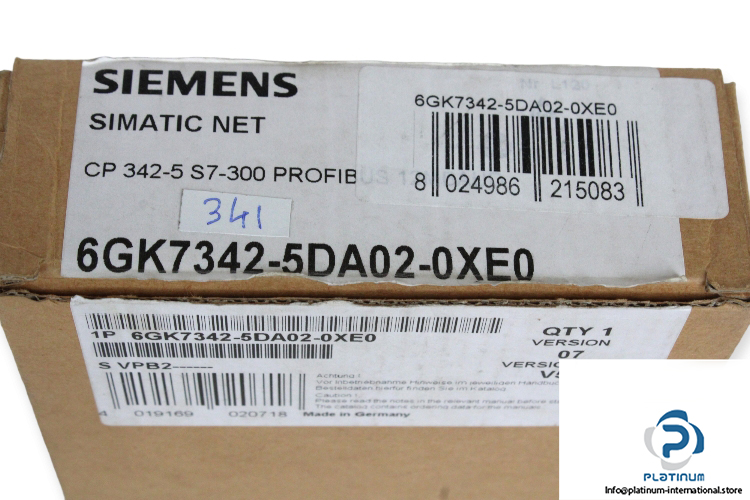

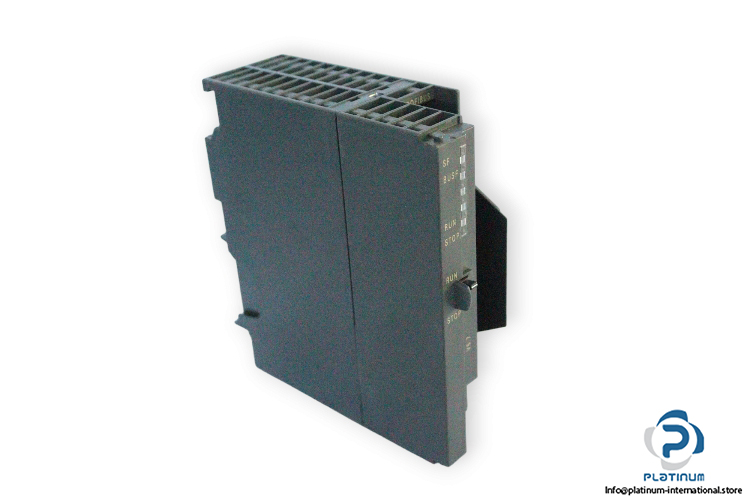

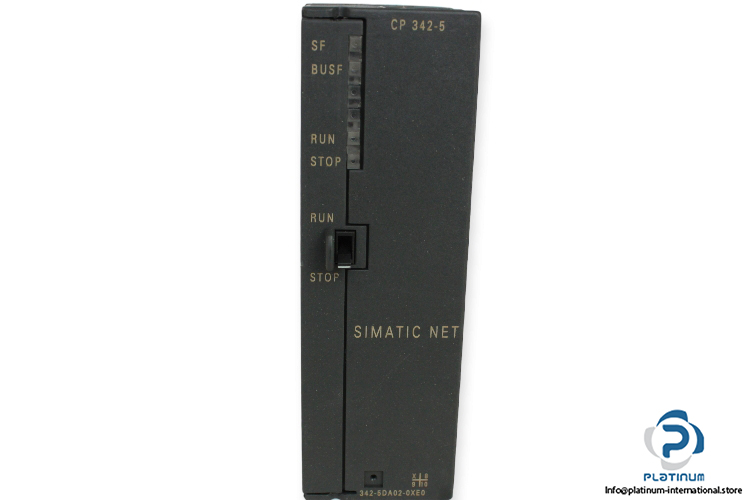

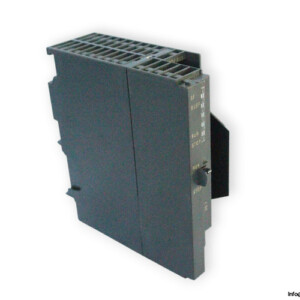

Siemens 6GK7 342-5DA02-0XE0 Communications Processor

Manufacturer: SIEMENS
Type: Communications processor
Model: 6GK7342-5DA02-0XE0

Connection: SIMATIC S7-300 to PROFIBUS DP
Transfer Rate: 9.6 kbit/s … 12 Mb
Supply voltage / 1 / from backplane bus: 5 V
Module Format: Compact module S7-300 single width
Number of units: 4
Number Of Possible Connections: 16
Number Of DP Slaves: 124
Data Volume (of the address range of the inputs / as DP master): 2160 byte
Data Volume (the address range of the inputs / per DP slave): 244 byte
Connection of at the 1st interface / acc. to PROFIBUS: 9-pin Sub-D socket (RS485)
Operation Temperature: 0 … 60°C
