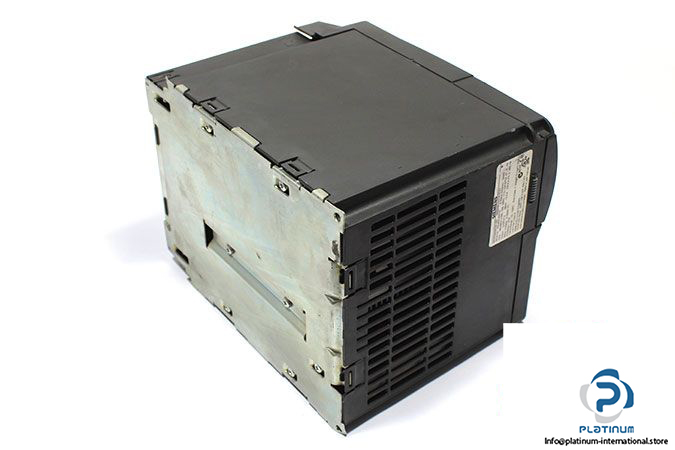

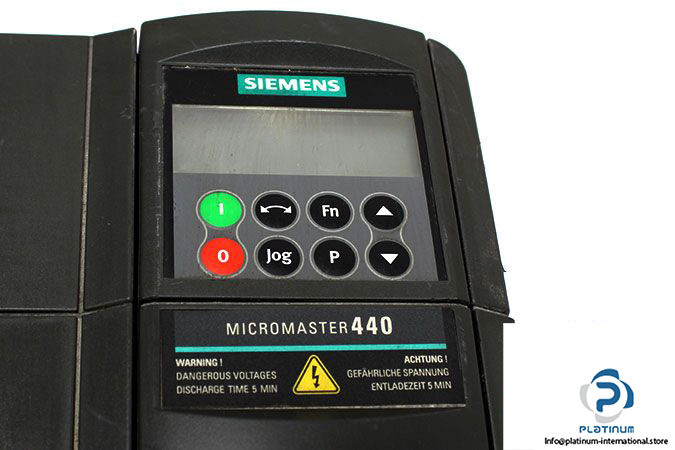

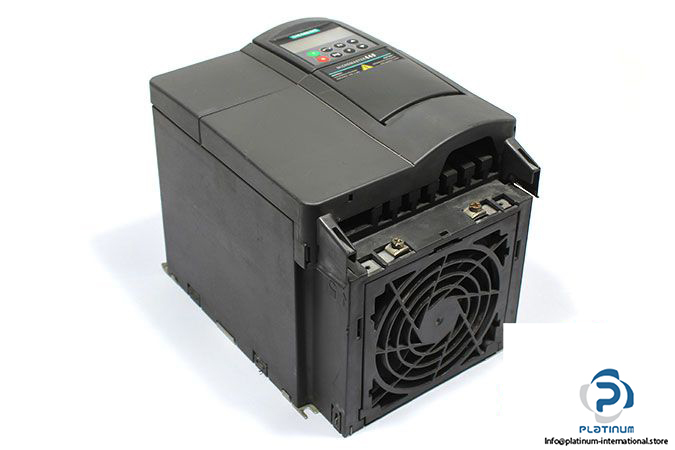

Siemens 6SE6440-2AD25-5CA1 Frequency Inverter

SIEMENS 6SE6 440-2AD25-5CA1 FREQUENCY INVERTER

The Siemens 6SE6 440-2AD25-5CA1 Frequency Inverter is engineered for advanced motor control applications. Designed with high efficiency and reliable thermal management, this unit provides precise frequency regulation and energy-efficient performance in demanding industrial environments.

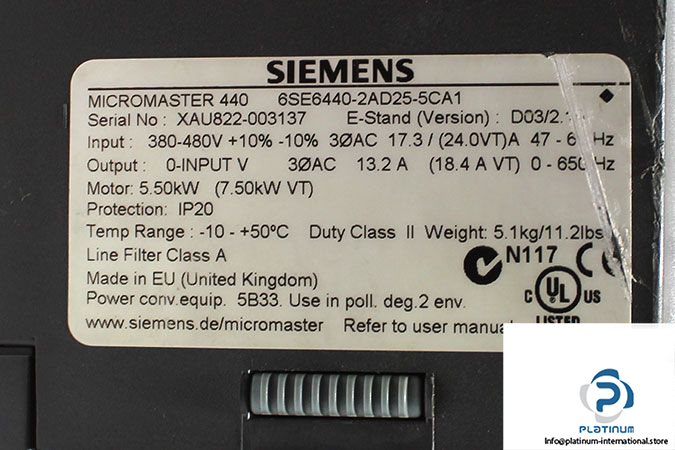

Manufacturer: Siemens
Type: Frequency Inverter
Model: 6SE6 440-2AD25-5CA1
Serial No.: XAU822-003137
E Stand: D03/2

Input

• Voltage: 3 Phase 380 / 400 V AC
• Frequency: 47 / 63 Hz
• Rated Current (LO): 17.6 A
• Rated Current (HO): 15.6 A

Output

• Voltage: 3 Phase 480 V AC
• Frequency: 0 / 650 Hz
• Rated Current (LO): 19 A
• Rated Current (HO): 13.20 A
• Rated Power (LO): 5.50 kW
• Rated Power (HO): 7.50 kW

Additional Information

• Efficiency: 0.96 η
• Power Factor: 0.95 λ
• Ambient Temperature: -10 / 50 °C
• Cooling: Fan
• Protection Class: IP20
• Dimensions: 185 x 245 x 195 mm
