Siemens 6SE7 033-8EE85-1AA0 Rectifier
Gleichrichter-/Regeneratoreinheit mit hoher Effizienz Siemens SIMOVERT P Einheit zur Umwandlung von Wechselstrom in Gleichstrom mit 160 kW Leistung, 375 A Nennstrom und robuster regenerativer Kapazität für industrielle Energiesysteme.

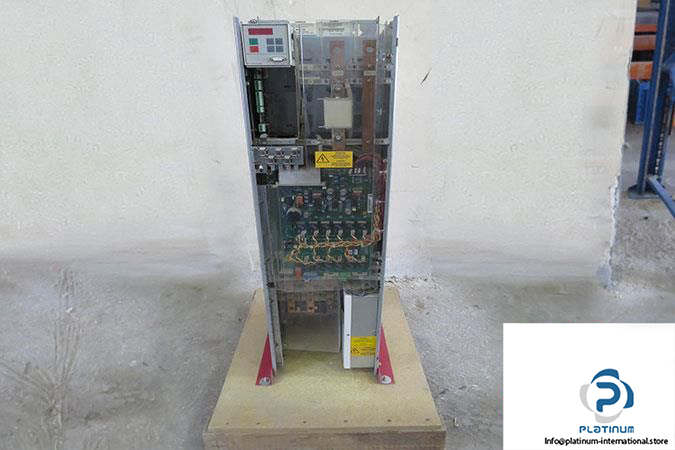

SIEMENS SIMOVERT P RECTIFIER/REGENERATIVE UNIT
The Siemens SIMOVERT P Rectifier/Regenerative Unit is a high-performance power conversion device engineered to convert alternating current into direct current with precision and efficiency. Designed for demanding industrial applications, it ensures reliable operation by allowing current flow in a single direction, supporting both rectification and regenerative functions.
Manufacturer: Siemens
Family: SIMOVERT P
Type: Rectifier/Regenerative Unit

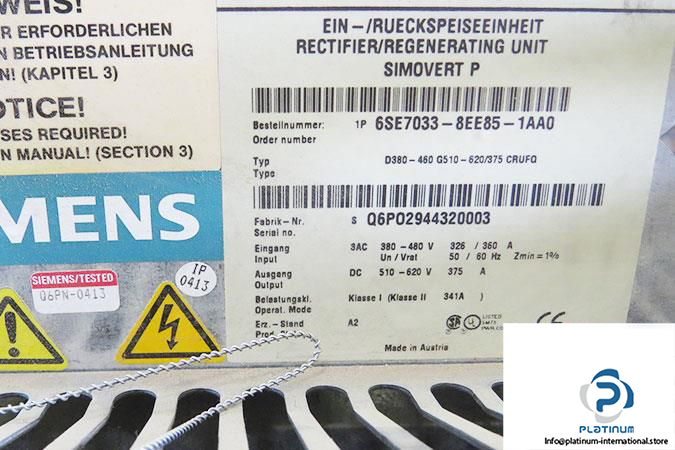

MRN: 6SE7033-8EE85-1AA0
Model: D380-460 GS10-620/375 CRUFQ
F No.: Q6P02944320003
| Supply Voltage | 3~V AC 380V to 480V / 510 to 620 VDC |
| Nominal Power Rating | 160 kW |
| Rated Current | 375 A |
| Power Loss | 1.16 kW |
| Dimensions | 270 x 1050 x 365 mm |
