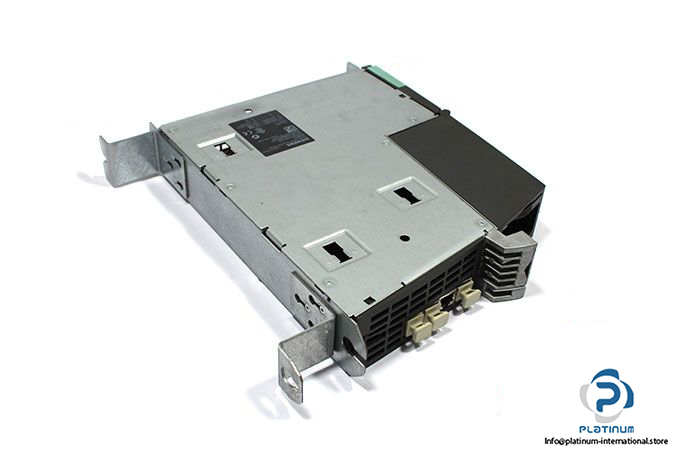

Siemens 6SL3040-1MA01-0AA0 Control Unit
Gebraucht
Auf Anfrage verfügbar
Steuergerät Fortgeschrittene Siemens SINAMICS CU320-2 PN Steuerung mit 24 VDC Eingang, 12 digitalen Eingängen, 8 bidirektionalen Ein-/Ausgängen und präziser Spannungserkennung. Entwickelt für leistungsstarke Antriebsintegration.
24AutomationControlControllerCU320-2DigitalDriveElectronicsIndustrialInputModulemulti-axispnSiemensSinamicsUnitVDC
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

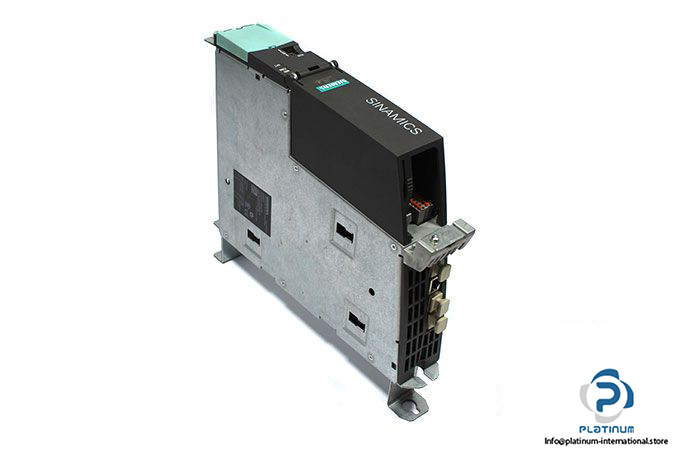

SIEMENS SINAMICS CU320-2 PN CONTROL UNIT
The Siemens CU320-2 PN is a high-performance control unit from the SINAMICS family, designed for precise multi-axis drive applications. Engineered for efficiency and adaptability, it supports powerful digital I/O and seamless integration with motion control systems in demanding industrial environments.
Manufacturer: Siemens
Type: Control Unit
Family: SINAMICS

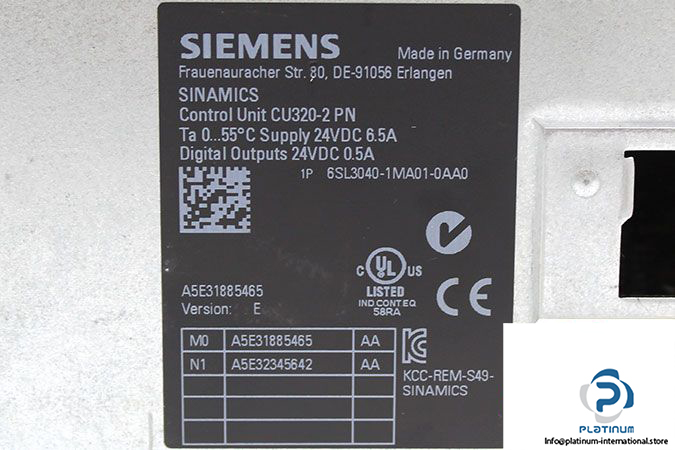

Model: 6SL3 040-1MA01-0AA0
MRN: CU320-2 PN
| Power Supply | 24 VDC |
| Current | 6.5 A |
| Max. Power Consumption | 1 A |
| Power Loss, Max. | 24 W |
| Protection, Max. | 20 A |
| Input Voltage Range | -3 / 30 V |
| Input Low Level | -3 / 5 V |
| Input High Level | 15 / 30 V |
| Output Voltage | 24 VDC |
| Output Current | 0.5 A |
| No. of Digital Inputs | 12 |
| Digital I/O Bidirectional | 8 |
| Power Consumption at 24 VDC, Typ. | 3.5 mA |
| Delay Time L†’H | 50 µs |
| Delay Time H†’L | 150 µs |
| Operation Temperature | 0 / 55 °C |
