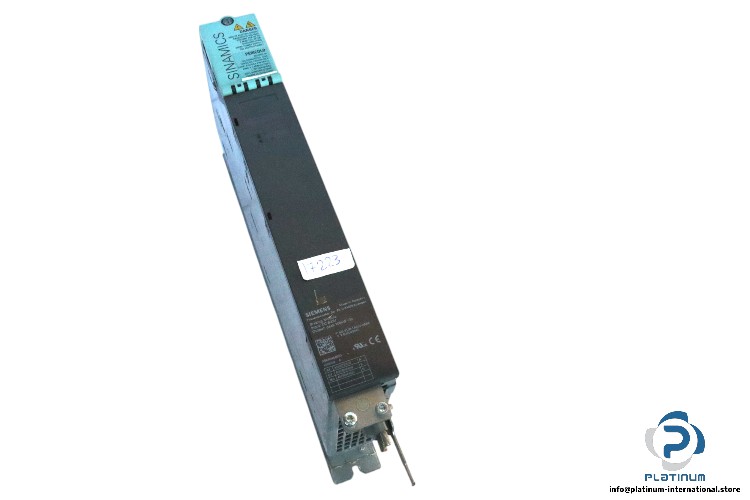

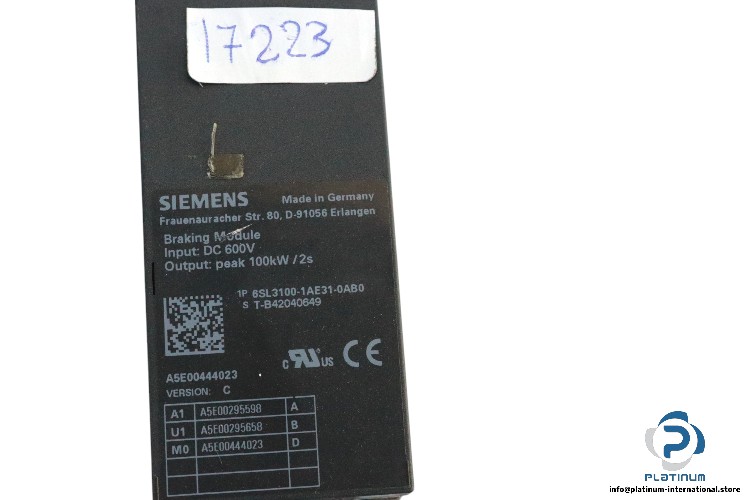

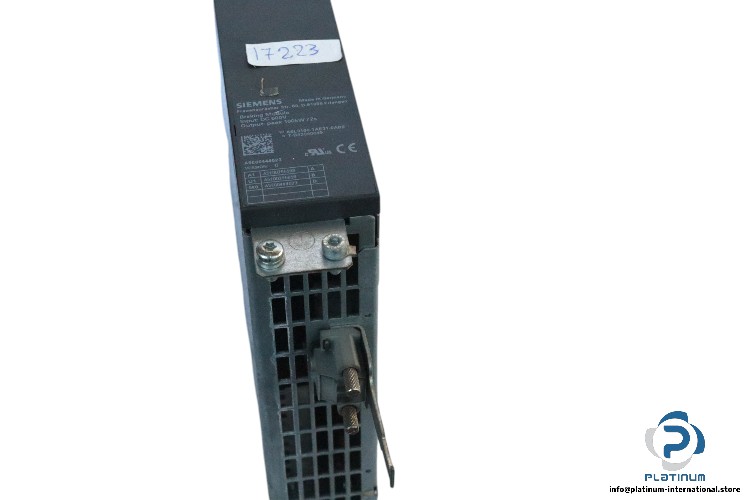

Siemens 6SL3100-1AE31-0AB0 Breaking Module
Siemens Brechmodul Eingang (Teilenr. 6SL3100-1AE31-0AB0) mit 600 V Gleichstromeingang, 2 digitalen Eingängen, 2 digitalen Ausgängen bei 24 V DC und Spitzenleistung von 100 kW für 2 Sekunden. Nennleistung von 1,5 kW.
Siemens Breaking Module Input (Part No.: 6SL3100-1AE31-0AB0)
The Siemens Breaking Module Input (Part No.: 6SL3100-1AE31-0AB0) is designed to provide precise control in industrial automation applications. With a peak output of 100 kW for 2 seconds, it offers high power efficiency and reliability in critical systems. The module operates with a 600 V DC input and provides 2 digital inputs, as well as 2 digital outputs at 24 V DC, each capable of handling up to 100 mA of load current. The rated power for the device is 1.5 kW, making it suitable for high-performance operations.
- Manufacturer: Siemens
- Type: Breaking Module Input
- Part No.: 6SL3100-1AE31-0AB0
- Input Voltage: 600 V DC
- Digital Inputs: 2
- Digital Outputs: 2 at 24 V DC (100 mA)
- Output Peak Power: 100 kW for 2 seconds
- Rated Power: 1.5 kW
- Current Consumption: 10 mA at 24 V DC
- Connections: 2 PE (Protective Earth)
- Dimensions: 50 x 380 x 270 mm
