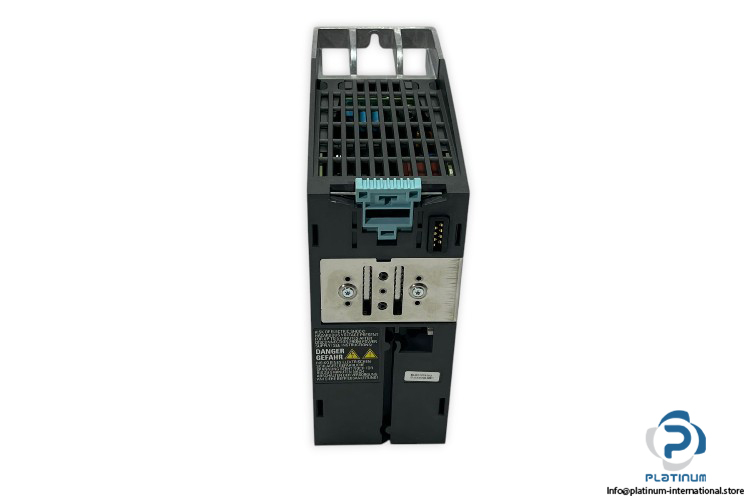

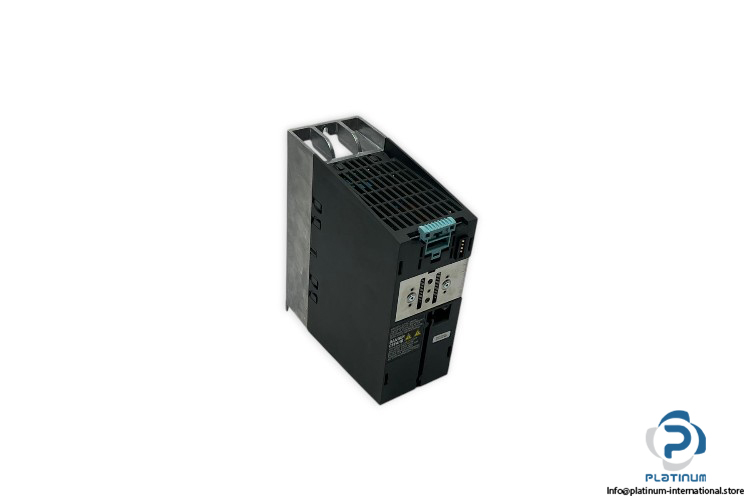

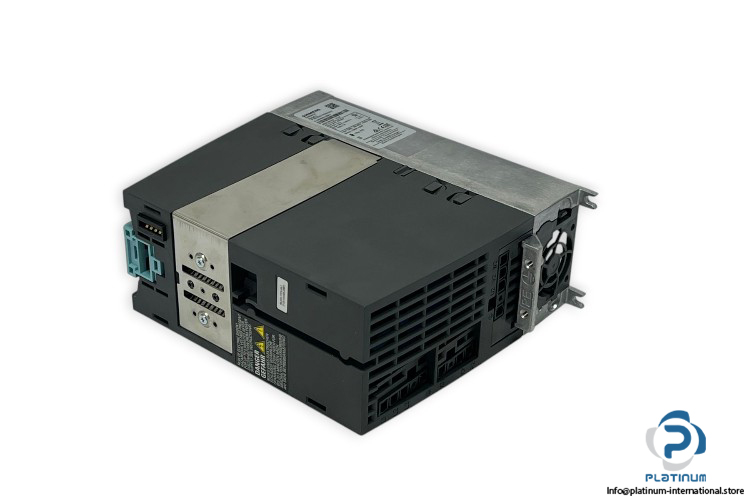

Siemens 6SL3210-1PE18-0AL1 Power Module
Neu
Auf Lager2 EinheitenVersandbereit
POWER MODULE
The SIEMENS PM 240-2 (MRN 6SL3 210-1PE18-0AL1) is a 3‘phase power module for SINAMICS drives, 380“480 V input, up to 3.0 kW (LO), 0.96 efficiency, Class A filter, and integrated SUNON MagLev cooling fan (24 V, 40×40×10 mm).0.962.2kW240-233.0kW380“480V6SL3210-1PE18-0AL1aaccessoryClassDriveEfficiencyfilterHighHoinIndustrialLOMagLMF40102VX-Q03U-AA9ModulePhasePlugPMPowerscrewSiemensSinamicsSunonTerminals
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
SIEMENS PM 240-2 POWER MODULE
The SIEMENS PM 240-2 is a robust, high‘efficiency 3‘phase power module engineered for SINAMICS drive systems, delivering reliable motor control, low losses, and stable operation across demanding industrial environments.

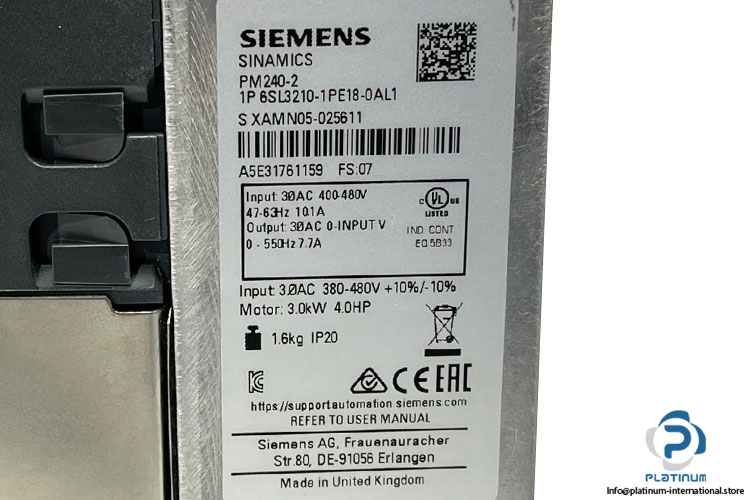

Manufacturer: SIEMENS
Type: Power Module
Model: PM 240-2
MRN: 6SL3 210-1PE18-0AL1

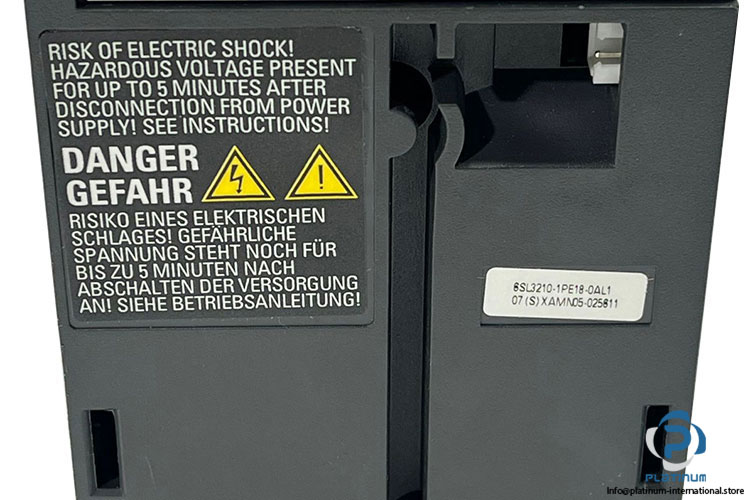

SN: S XAMN05-025611 / A5E31761159
| Input | 3 AC |
| Line Voltage | 380 / 480 V |
| Line Frequency | 47 / 63 Hz |
| Rated Current (LO) | 10.10 A |
| Rated Current (HO) | 8.80 A |
| Output | 3 AC |
| Rated Voltage | 400 V IEC, 480 V NEC |
| Rated Power (LO) | 3.00 kW / 4.00 hp |
| Rated Power (HO) | 2.20 kW / 3.00 hp |
| Rated Current (LO) | 7.70 A |
| Rated Current (HO) | 5.90 A |
| Max. Output Current | 11.80 A |
| Pulse Frequency | 4 kHz |
| Power Factor | 0.85 |
| Offset Factor | 0.95 |
| Efficiency | 0.96 |
| Sound Pressure Level (1 m) | 72 dB |
| Power Loss | 0.12 kW |
| Filter Class (Integrated) | Class A |
| Line Side Version | Plug-in screw terminals |
| Dimensions (W×H×D) | 73 mm (2.87 in) × 196 mm (7.72 in) × 165 mm (6.50 in) |

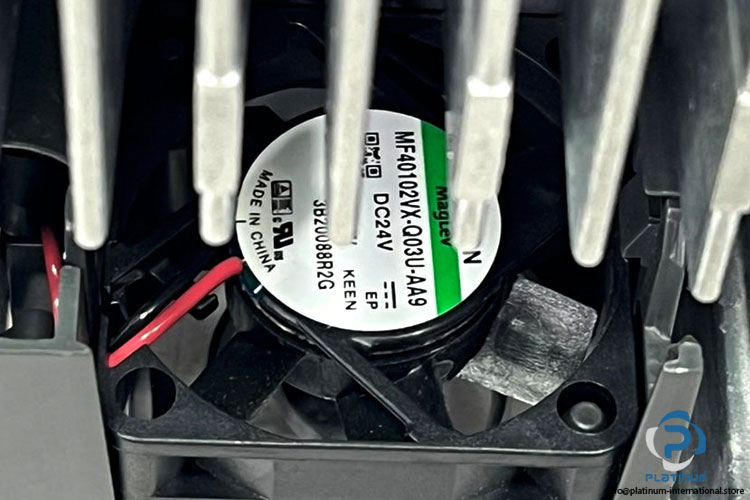

| Attached Cooling Fan | SUNON MF40102VX-Q03U-AA9, REF NO: 3B20088R2G, SERIES: MAGLEV |
| Fan Size | 40 mm × 40 mm × 10 mm |
| Fan Termination | 2 |
| Fan Voltage | 24 V |
