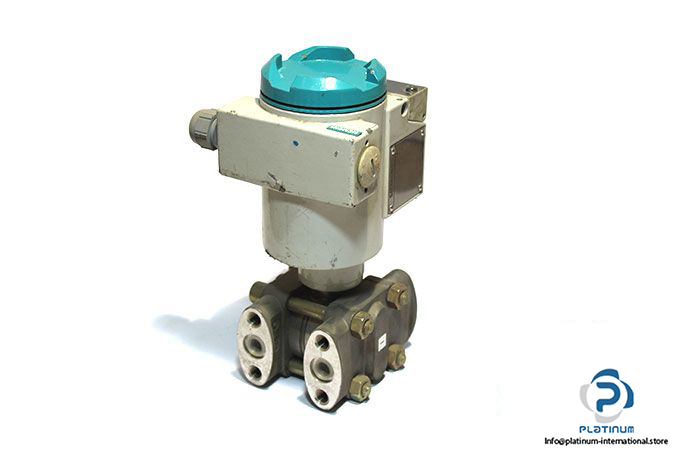

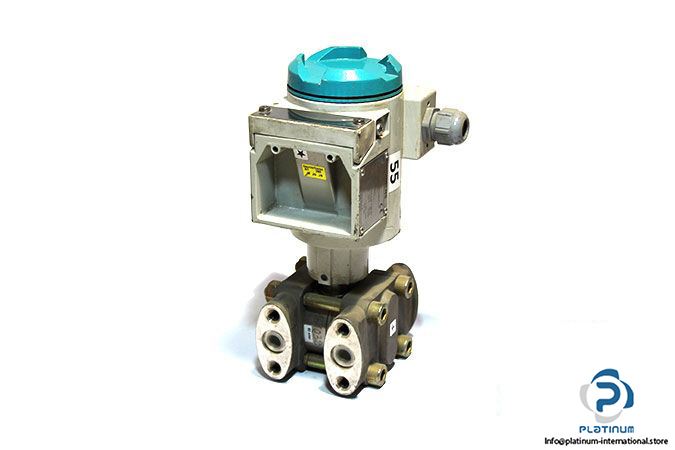

SIEMENS SITRANS P PRESSURE TRANSMITTER “ MODEL 7MF4 422-1CB00-1AA1

Engineered for accurate differential pressure measurement, the Siemens SITRANS P is a reliable pressure transmitter suited for both non-aggressive and aggressive media. It ensures precise flow rate and pressure readings across a range of applications.

Manufacturer: Siemens
Type: Pressure Transmitter
Family: SITRANS P
Model: 7MF4 422-1CB00-1AA1

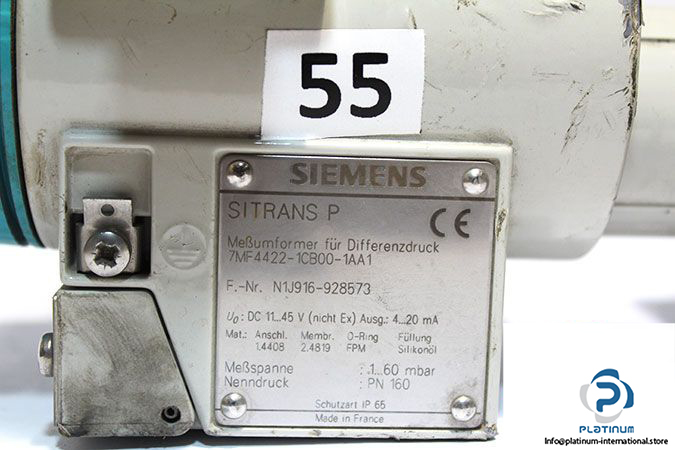

F No.: N1J916-928573

Applications

• Measurement of differential pressure
• Measurement of small positive and negative gauge pressures
• Measurement of flow rates

Media Compatibility

• Non-aggressive gases
• Aggressive gases
• Steam
• Liquids

Technical Specifications

• Output Signal: 4 / 20 mA
• Measuring Cell Filling: Silicon oil
• Cleaning of Measuring Cell: Normal
• Rated Pressure: PN160
• Measuring Span: 1 / 60 mbar
• O-Ring Material: FPM
• Wetted Part Materials: Stainless Steel
• Process Connection: Female thread ¼-18 NPT

Construction Materials

• Screws of Process Covers: Steel
• Electronics Housing: Die-cast aluminum
• Diaphragm: Hastelloy
