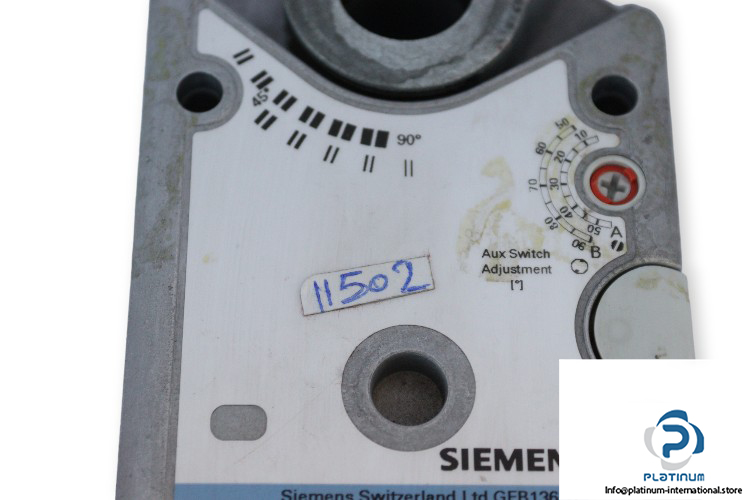

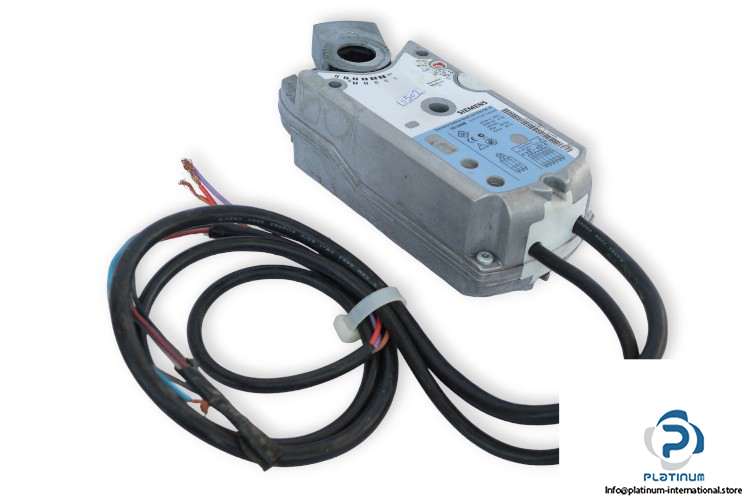

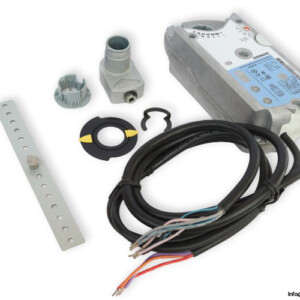

Siemens GEB136.1E AIR Damper Actuator

Manufacture: Siemens
Type: Air Damper Actuator
Model: GEB1361E

Torque: 15 Nm
Control type: Three-position control
Angular rotation: 90°
Air damper area: 3 m²
Operating Voltage: 24 V AC
Power: 4 VA
Frequency: 50/60 Hz
Positioning time: 150/125s
Protection Class: IP54
No. of Auxiliary switch: 2
Contact rating: 6 A resistive, 2 A inductive/ 24 … 250 V AC

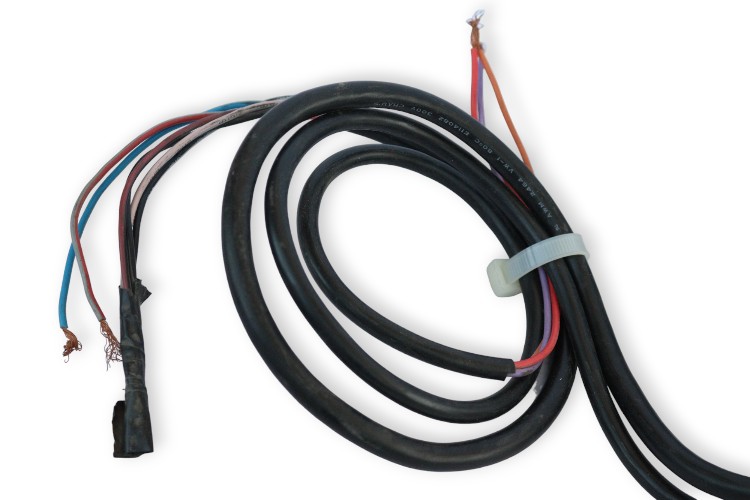

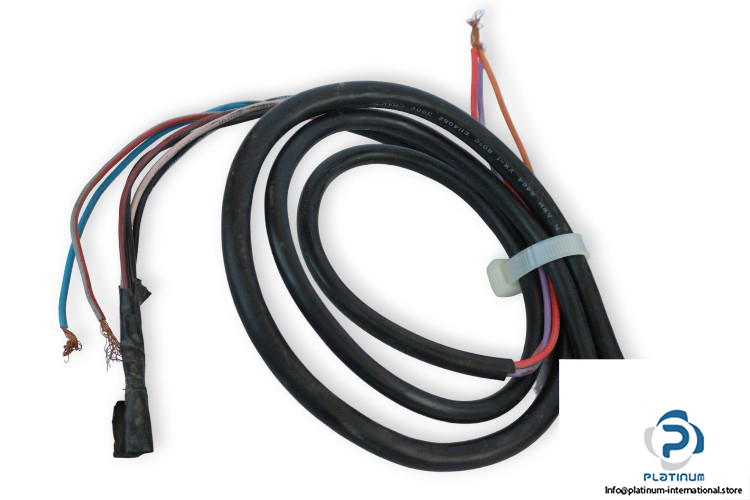

Connection cable length: 0.9 m
Ambient temperature operation: -32 … 55 °C
Dimensions (W x H x D): 81 x 212 x 63 mm
