Siemens LAL2.25 OIL Burner Control
Gebraucht
Auf Lager1 EinheitVersandbereit
300,00$
Ölbrennersteuerung Siemens LAL2.25 Ölbrenner-Steuereinheit mit 220-240 V AC Versorgung, IP40-Schutz und präziser Zündzeitung für zuverlässige Brennersteuerung.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

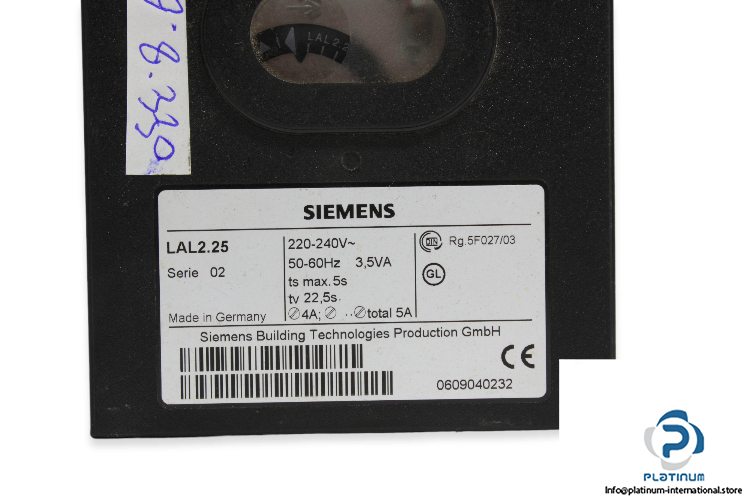

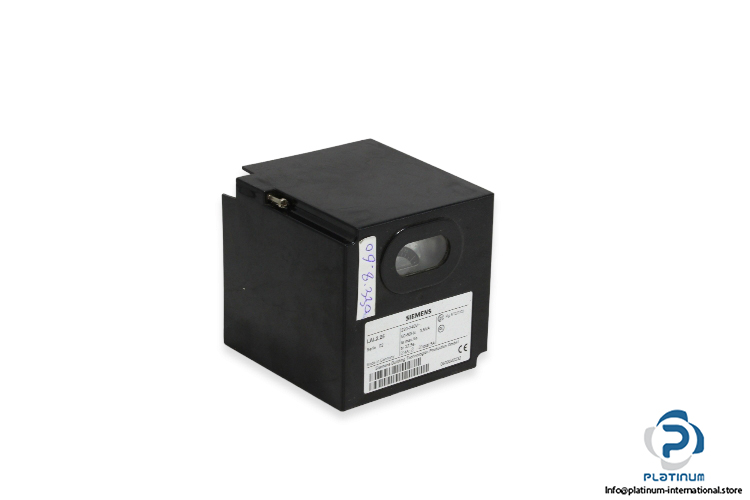

SIEMENS LAL2.25 OIL BURNER CONTROL
The Siemens LAL2.25 is a high-quality oil burner control unit designed for precise and reliable burner management. Built for industrial and commercial heating applications, it ensures safe ignition, accurate timing, and consistent operation even in demanding environments.
Manufacturer: Siemens
Type: Oil Burner Control
Model: LAL2.25
SN: 0609040232
Series: 02
| Supply Voltage | 220 / 240 V AC |
| Input Current at Terminal 1 | 5 A (max) |
| Current Rating of Control Terminals | 4 A |
| Power Consumption | 3.5 VA |
| Ignition Safety Time (ts) | 5 s |
| Prepurge Time with Air Damper Open (tv) | 22.5 s |
| Frequency | 50 / 60 Hz |
| Degree of Protection | IP40 |
| Operating Temperature | -20 / +60 °C |
| Dimensions | 108.5 x 103 x 103 mm |
