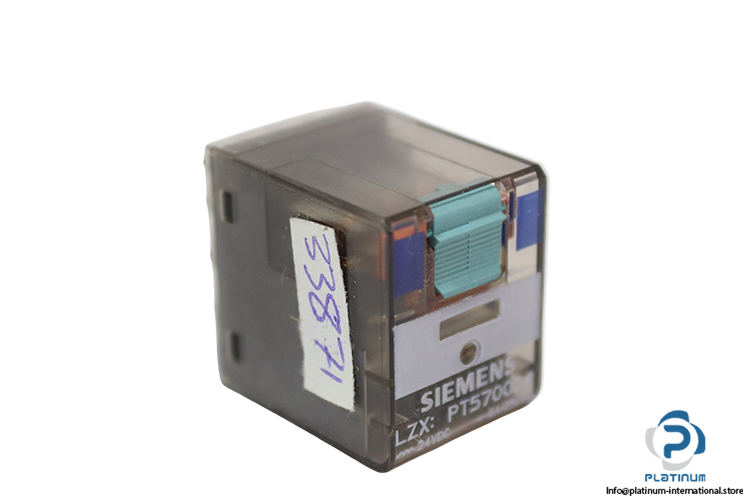

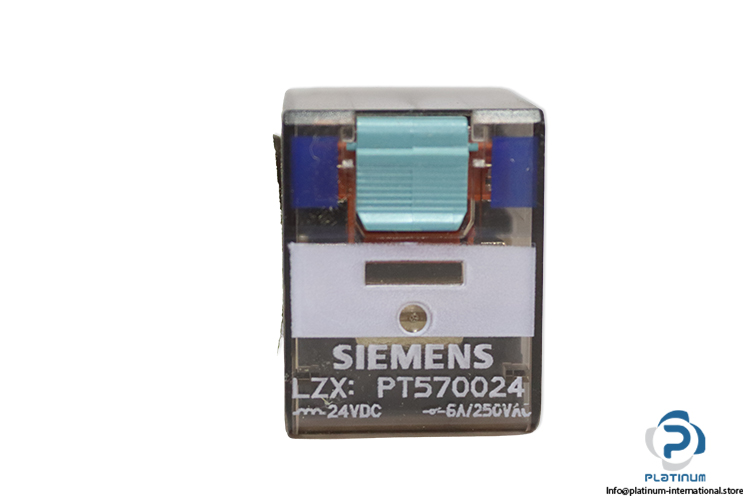

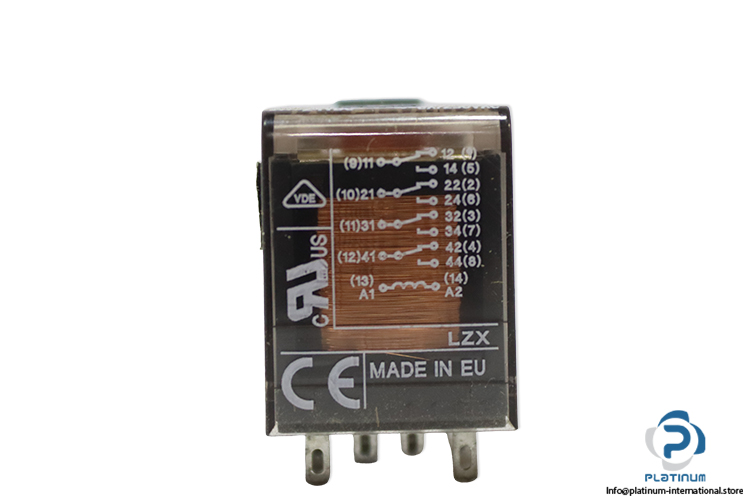

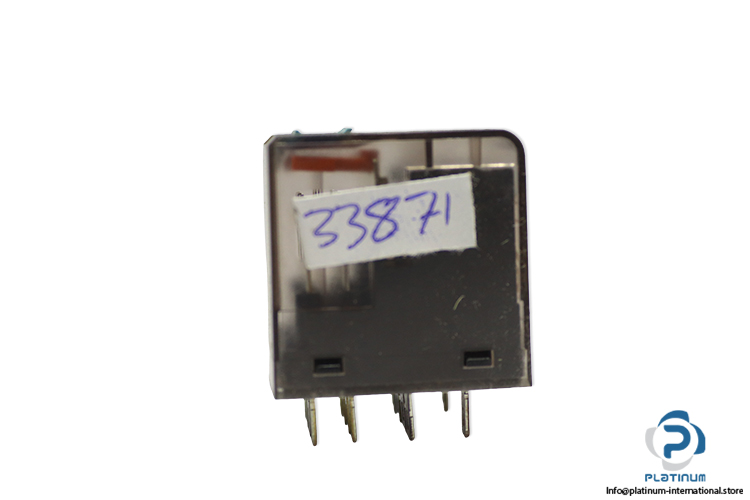

Siemens PT570024 Plug-IN Relay
Plug-In Relay
An industrial-grade plug-in relay from the SIEMENS SIRIUS range, featuring 24 V DC control voltage, four changeover contacts, monostable switching behavior, and high resistance to shock and vibration. Designed for control panels and automation systems.SIEMENS PT570024 Plug-In Relay
A high-reliability plug-in relay from the SIRIUS range, designed for industrial control and automation systems requiring precise switching performance, robust electrical characteristics, and long operational life. This relay is suitable for control panels, machinery interfaces, and automation circuits, and is fully supported by Platinum International Company for Industrial Technologies. Manufacturer: SIEMENS
Product Brand Name: SIRIUS
Product Designation: Plug-In Relay
Product Type Designation: LZX
Model: PT570024
Operating Range Factor (Control Supply Voltage):
Relay bases and sockets for various relay types are available. For compatible options, please contact us directly or visit our website to view all available models.
| Control Supply Voltage (DC Rated Value) | 24 V |
| Initial Value | 0.9 |
| Full-Scale Value | 1.4 |
| Switching Function | Changeover Switch |
| Switching Behavior | Monostable |
| Number of Contacts | 4 Changeover Contacts |
| Type of Switching Contact | Changeover Contact |
| Material of Switching Contacts | AgNi 90/10 |
| Thermal Current | 6 A |
| Consumed Active Power | 741 mW |
| Shock Resistance (IEC 60068-2-27) | 5 g / 11 ms |
| Vibration Resistance (IEC 60068-2-6) | 30 ... 150 Hz, 4 g |
| Ambient Temperature During Operation | -40 ... +70 °C |
| Height | 28 mm |
| Width | 22.5 mm |
| Depth | 35 mm |
