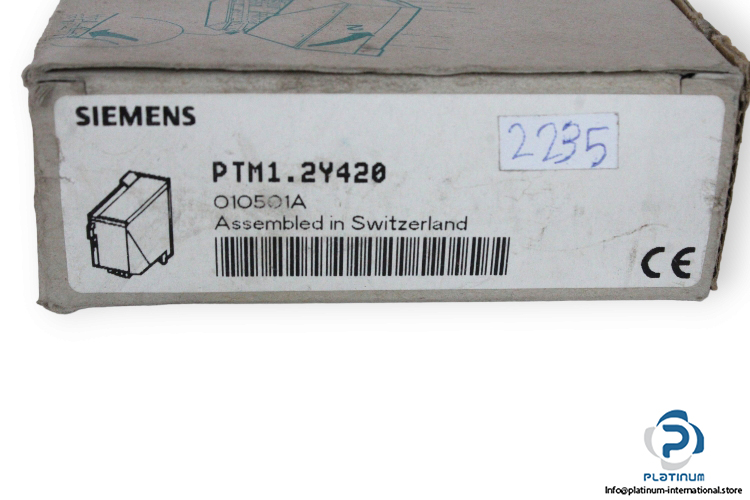

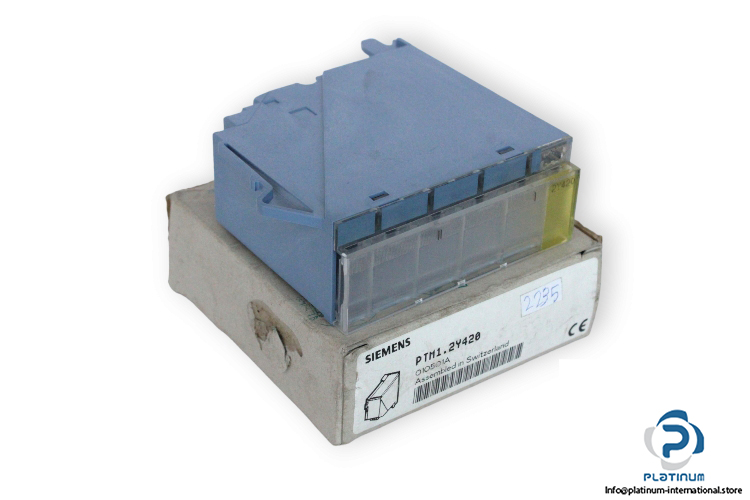

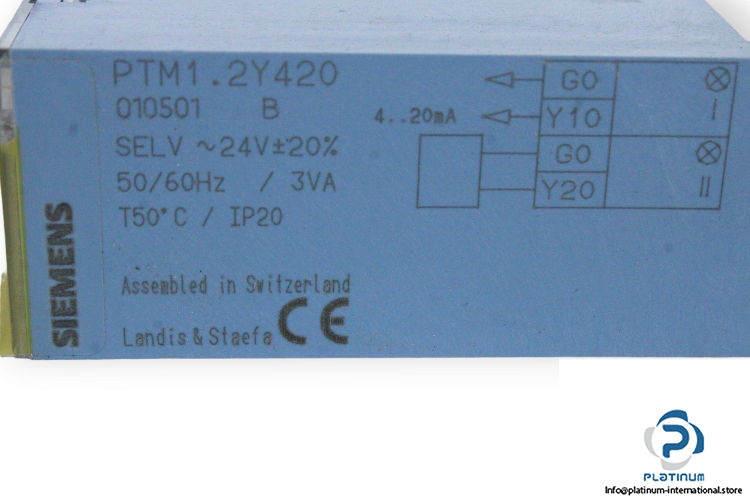

Siemens PTM1.2Y420 I/O Module Range
Manufacturer: Siemens
Type: I/O Module Range, Input/Output Module
Model: PTM 1.2Y 420
Part No: 010501B
Analog output (AO): 2 points
Output Signal: 4 … 20 mA
Current: 2 A
Channels Points: 2
Resolution: 17 µA
Load Units at 12.5 mA: 1
Operating Voltage: 24 V AC
Signal Types and Functions: Positioning signal
Frequency: 50 … 60 Hz
Power Consumption: 3 VA
Protection Degree: IP20
Ambient Temperature: 50 °C
SELV
