Siemens QAA32 Room Temperature Sensor
Neu
Auf Lager2 EinheitenVersandbereit
RAUMTEMPERATURSENSOR Siemens QAA32 Sensor für genaue HVAC-Raumtemperaturmessung, mit ±0,3 K Toleranz, NTC-Sonderelement, IP30 Schutz und 0 / 40 °C Betriebsbereich.
ANDclimateControlCoolingDeviceHeatingHvacindoorIP30MonitorNTCPrecisionRoomSensorSiemensSystemTemperature
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

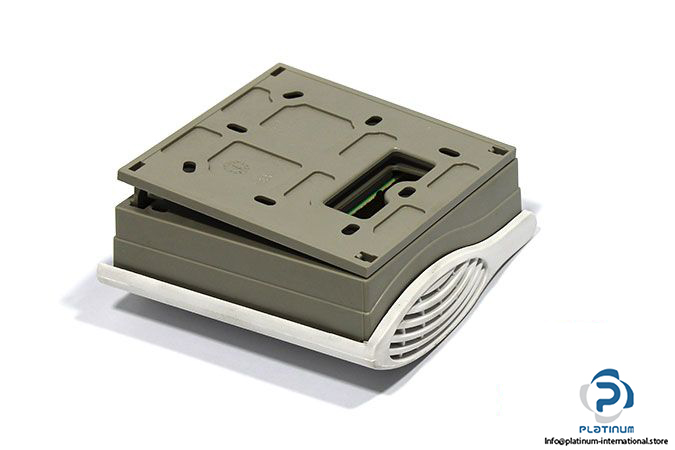

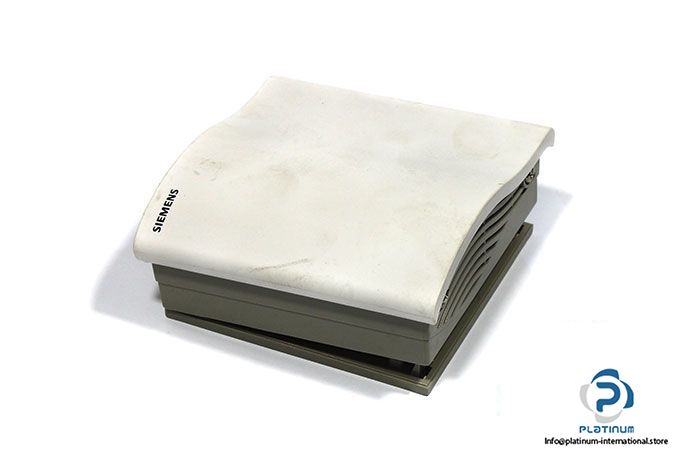

SIEMENS QAA32 ROOM TEMPERATURE SENSOR
The Siemens QAA32 room temperature sensor is designed for precise temperature acquisition in HVAC plants. Engineered for use with controllers whose sensor signal inputs are not galvanically separated from the AC 230 V mains, it ensures accurate readings and reliable integration in climate control systems.
Manufacturer: Siemens
Type: Room Temperature Sensor
Model: QAA32

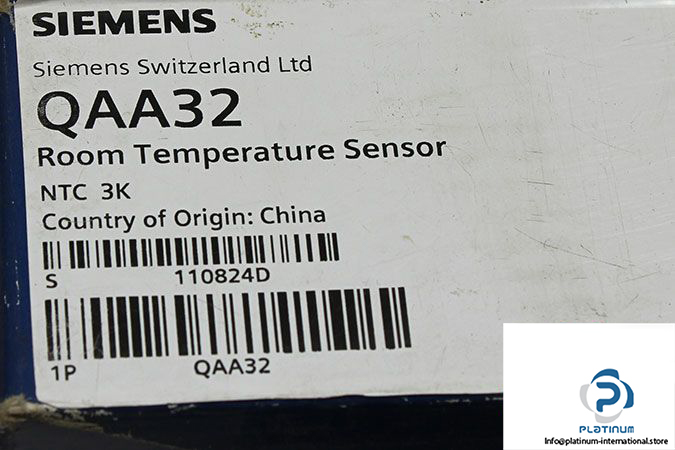

Serial No.: S 110824D / QAA32
| Application | For HVAC plants to acquire room temperature with non-galvanically separated AC 230 V mains controllers |
| Measuring Tolerance at 25 °C | ±0.3 K |
| Terminals for Cross-Sectional Areas of | 2 x 1.5 mm² or 1 x 2.5 mm² |
| Sensing Element | NTC resistor, 3 k„¦ at 25 °C |
| Time Constant | approx. 6 min |
| Operating Temperature | 0 / 40 °C |
| Protection Class | IP30 |
| Dimensions | 97 x 100 x 36 mm |
