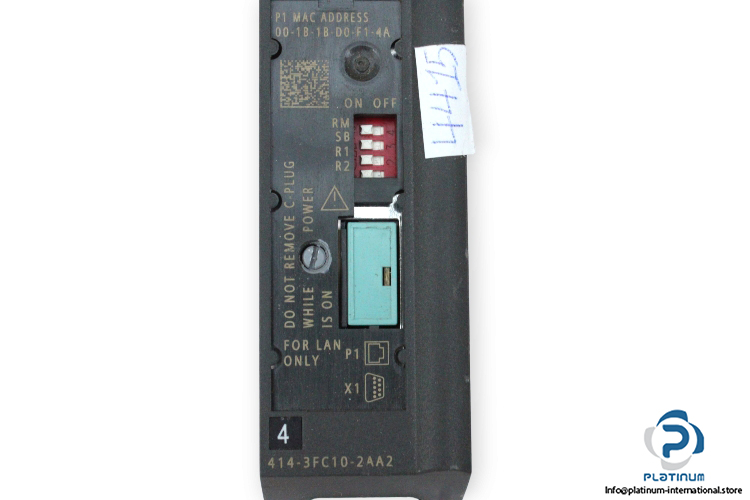

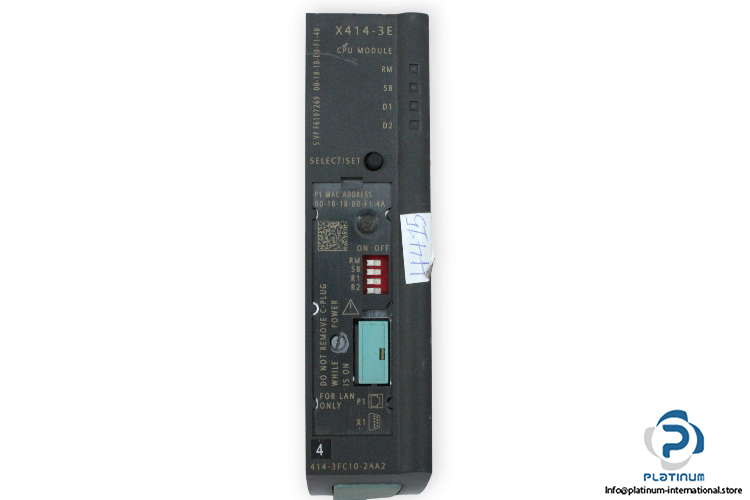

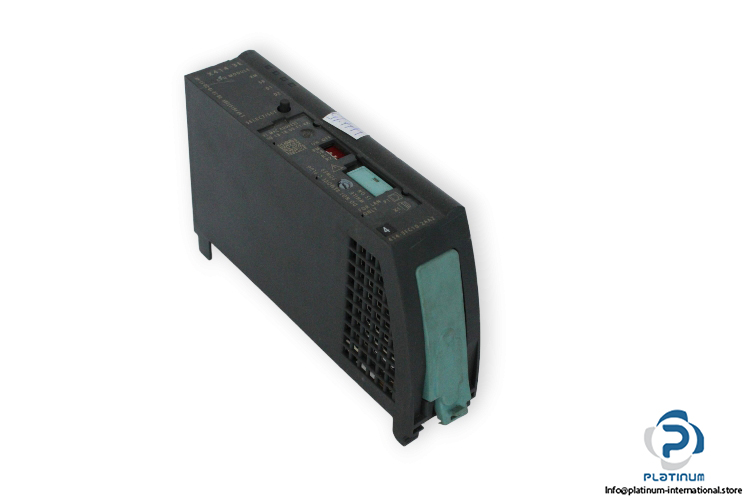

siemens-SCALANCE-X414-3E-414-3FC10-2AA2-modular-switch
Manufacture: Siemens
Type: Modular switch
Model: SCALANCE X414-3E
MNR: 414-3FC10-2AA2
Operating voltage: 24 V DC
Consumed current: 2 A
Power loss: 15 W
Operational current of the signaling contacts: 0.1 A
No. of digital inputs (DI): 2
Type of electrical connection / for digital input signals: 5-pole terminal block
Transfer rate: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s
No. of electrical connections: 14
Operating Temperature: -40 … +70 °C
Protection Class: IP20
Dimensions: 344 x 145 x 117 mm
