Siemens U308A 6RA8222-8CA1 Frequency-Voltage Converter
Gebraucht
Auf Lager1 EinheitVersandbereit
419,99$
FREQUENCY-VOLTAGE CONVERTER
Siemens U308A frequency-voltage converter with ±10 V bipolar output and 0“100 kHz input range. Operates on 2-phase 230 V AC, with +15 V encoder supply. Suitable for precise industrial control systems.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

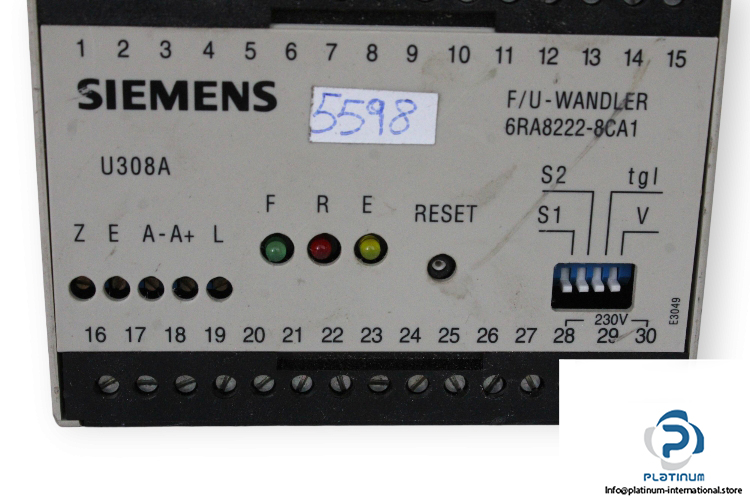

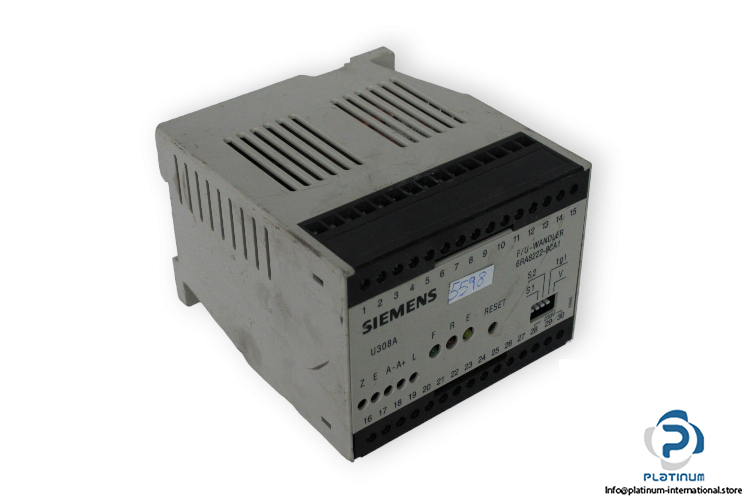

SIEMENS U308A FREQUENCY-VOLTAGE CONVERTER
The Siemens U308A is a high-performance frequency-voltage converter engineered for precision signal processing and feedback systems in automation and motion control. With stable operation and reliable conversion performance, it is ideal for industrial applications that require accurate frequency-to-voltage translation.
Manufacturer: Siemens
Type: Frequency-Voltage Converter
Model: U308A
MNR: 6RA8222-8CA1

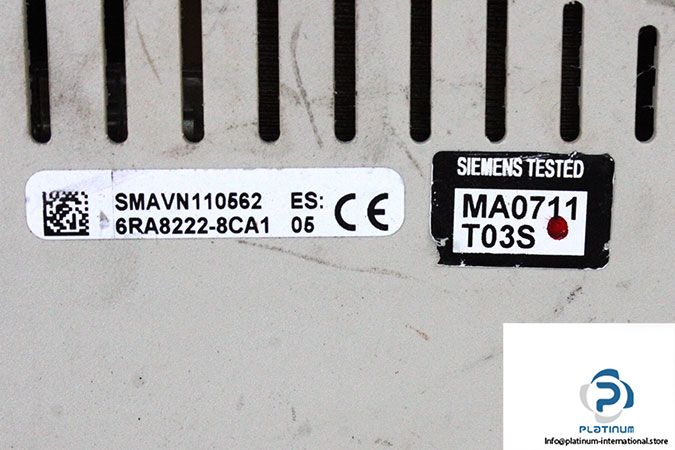

Ref No: SMAVN110562 / MA0711 / T03S
Input Level for Actual Value Channels:
| Rated Supply Voltage | 2-phase 230 V AC |
| Frequency | 50 Hz |
| Current Consumption | 50 mA |
| Rotary Encoder Supply Voltage | +15 V |
| Rotary Encoder Supply Rating | 80 mA |
| High | 12 / 30 V |
| Low | -0.6 / 3.5 V |
| Bipolar Output | ±10 V, 5 mA |
| Input Frequency Range | 0 / 100 kHz (Freq. in) |
| Dimensions | 75 mm x 99.7 mm x 110 mm |
| Temperature Range | 0 to 45 °C |
