Siemens WZU-MB-G4 M-BUS Module
Neu
Auf Lager6 EinheitenVersandbereit
75,00$
M-BUS-MODUL Kompakte Siemens WZU-MB G4 M-Bus-Modul für Generation 4 Energiezähler, unterstützt mehrere Baudraten und niedrigen Stromverbrauch für effiziente Datenkommunikation.
4CommunicationCompactDataDeviceEnergyGenerationHeatIndustrialInterfacelowM-BusMeterModulePowerSiemensUnit
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
SIEMENS WZU-MB G4 M-BUS MODULE

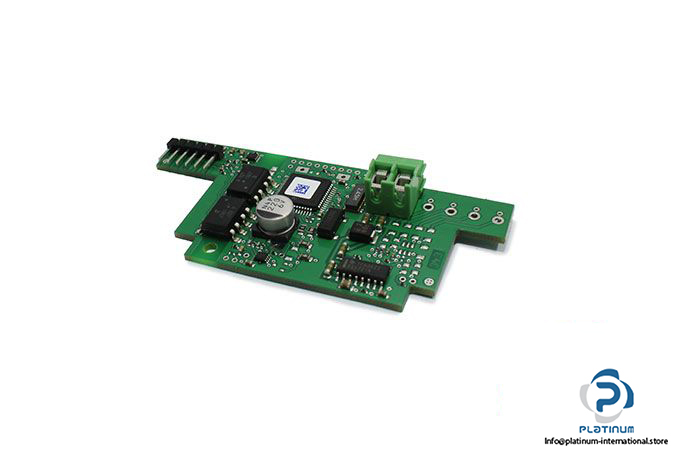

The Siemens WZU-MB G4 is a compact and efficient M-Bus module designed for integration with generation 4 heat and heat/cooling energy meters. Engineered for precise communication, this module supports multiple baud rates and offers reliable performance in industrial and energy monitoring applications.
Manufacturer: Siemens
Type: M-Bus Module
Model: WZU-MB G4
Part No.: S55563-F110

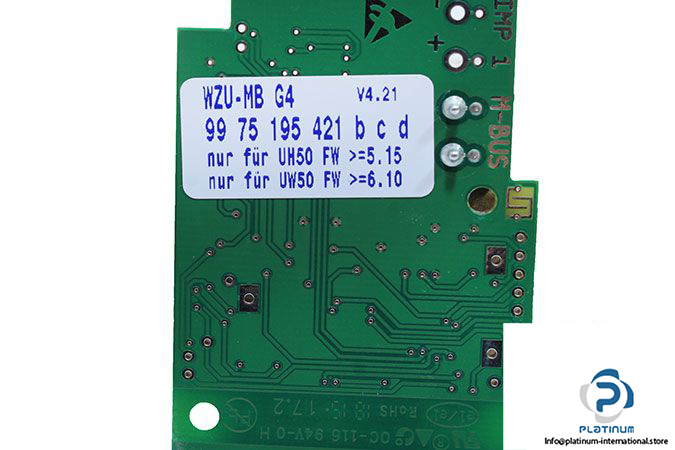

REF NO: 99 75 195 421 B C D
Used for: Heat and heat/cooling energy meters, generation 4
| Voltage | 50 VDC |
| Current Consumption | 1 M-Bus load (1.5 mA) |
| Baud Rate | 300, 1200, 2400, 4800, 9600 |
| Connection Capacity | Rigid or flexible, 0.25“0.75 mm²; Flexible with wire end ferrule, 0.25“0.75 mm² |
| Dimensions | 85 × 37.5 × 10.5 mm |
